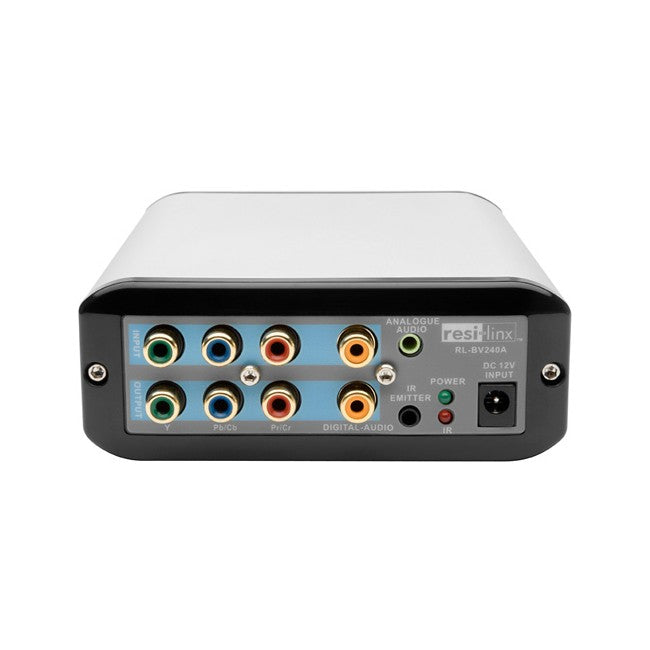

RLBV240A 1X4 COMPONENT AV TRANSMITTER BALUN WITH AV LOOP THROUGH RESI-LINX RL-BV240A

1 x 4 Component Video/Audio Balun Transmitter - Resi-linx

Component video and digital/analogue audio balun transmitter with IR control.

Allows the transmission of component video and digital/analogue audio signals to up to 4 TV's using 4 pair twisted cable.

• 1x4 Component Video/Audio Balun Transmitter
• AV Loop Through
• IR Capable
• On two UTP cables


FEATURES:

• Component video and digital/analogue audio balun transmitter with IR control
• Allows the transmission of component video and digital/analogue audio signals to up to 4 TV’s using 4pair twisted cable
• Built-in IR control with addition of RL-IR700/800 Emitter
• resi-linx® IR control system is plasma friendlyand Foxtel/iQ compatible
• Features additional connectivity of Loop Through terminals to maintain AV quality signal at source
• Includes Switch Mode power supply


SPECIFICATIONS:

• For use with: RL-BV250B Receiver
• Connections - In/Out: 3 x RCA (2 sets)/ 8 x RJ45/ 1 x IR Emitter/ 1 x AnalogueAudio
• Configuration: 1 : 4
• Loop Through capability: Yes
• IR capability: Yes
• Power: 12V DC 500mA Switch Mode
• Maximum video input: 1.2V P-P
• Return loss: >15dB to 1,000 MHz
• Common mode rejection: >40dB @ 1,000 MHz
• Maximum distance cable: Up to 100m
