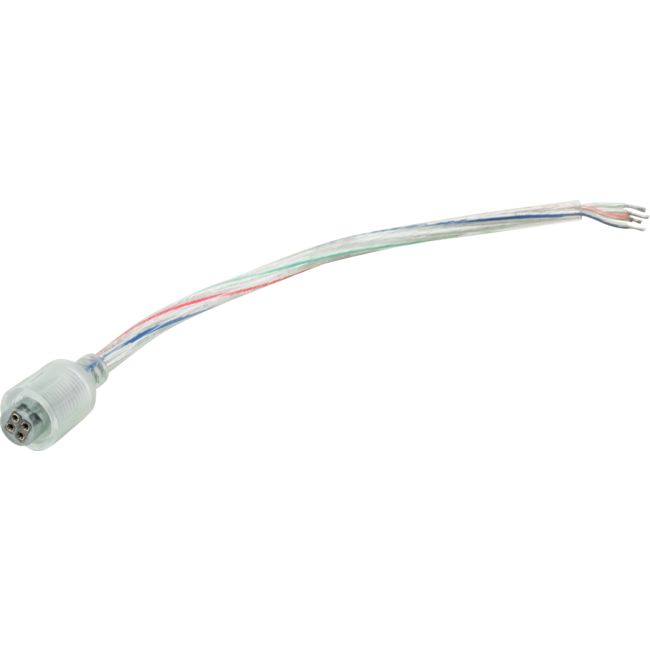

RGB15S 4 PIN WATERPROOF CONNECTOR SOCKET LEAD

$1.95

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

4 PIN Waterproof Connector Socket Lead

Features

This is waterproof connector is to connect the RGB light.

Connection to transformer, for connecting LED strips, LEDwall-washers, LED underground light, LED rope right, LED belt light, curtain light, twinkle light and many application.

Productive Craft:lead-free handmade soldering, once injection moulding and for all.
Cable lenth: 15cm
Voltage Rating: DC 0?24V,(AC110V,220V)
Current Rating: 1~5A
Breakdown Voltage: =1500V
Grage of Waterproof: IP68
Working Temperature:-40?~120?
Material: Copper+PVC(international standard)

NOTE:

Finished products must have 100% electrical test, disallwing open circuit/short circuit, electrical sudden disconnection.
Insulation Resistance: 5.0M ohm/least.
Energy Impedance: 3.0 ohm
The products passed the RoHS environmental requirements
Connecting point must be one to one

Specifications

IP68 Waterproof 4 pin Connector Plug
1	Model No.
2	Material	Connector Body	Nylon(PA66)+GF UL94V-0 1/16''
3		Contact	Brass with Gold Plated
4		Sealing	Silica Gel
5	Property	Current Rating	1-5A
6		Voltage Rating	500V
7		Contact Resistance	<10mO
8		Insulation Resistance	10MO at DC200V
9		Breakdown Voltage	1.5KV/1minute
10		Temperature Rating	-40°C~+120°C
11		Durability(Plug/Unplug)	3000 times
12		Waterproof Rating	IP68
13		Cable Max. Diameter	10mm
14		Pins Range	2,3, 4, 5, 6, 7, 8
15	Certificate	CCC; CE; ROSH

Material

Terminal: Space between 2.54 2*2P Pin Header, Plating gold/tin
Sizing Material: 35P-PVC, transparent
Waterproof Circle: Black
Nut shell: Transparent
