$2.50
Online Stock Only.
For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

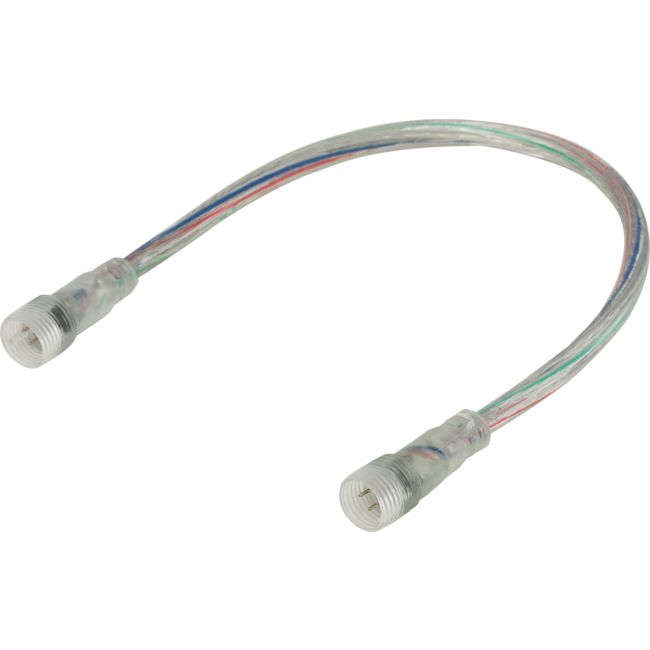

This is waterproof connector is to connect the RGB light.
Connection to transformer, for connecting LED strips, LEDwall-washers, LED underground light, LED rope right, LED belt light, curtain light, twinkle light and many application.
Package Included: 1 Set ofWaterproof Connector 4 Pin Push In PLUG TO PLUG Wire RGB
NOTE:
1.Finished products must have 100% electrical test, disallwing open circuit/short circuit, electrical sudden disconnection.
2.Insulation Resistance: 5.0M ohm/least.
3.Energy Impedance: 3.0 ohm
4. The products passed the RoHS environmental requirements.
5. Connecting point must be one to one.
| IP68 Waterproof 4 pin Connector PLUG | |||
| 1 | Model No. | ||
| 2 | Material | Connector Body | Nylon(PA66)+GF UL94V-0 1/16'' |
| 3 | Contact | Brass with Gold Plated | |
| 4 | Sealing | Silica Gel | |
| 5 | Property | Current Rating | 1-5A |
| 6 | Voltage Rating | 500V | |
| 7 | Contact Resistance | <10mO | |
| 8 | Insulation Resistance | 10MO at DC200V | |
| 9 | Breakdown Voltage | 1.5KV/1minute | |
| 10 | Temperature Rating | -40°C~+120°C | |
| 11 | Durability(Plug/Unplug) | 3000 times | |
| 12 | Waterproof Rating | IP68 | |
| 13 | Cable Max. Diameter | 10mm | |
| 14 | Pins Range | 2,3, 4, 5, 6, 7, 8 | |
| 15 | Certificate | CCC; CE; ROSH | |
Connect all kinds of LED lighting products for indoor andoutdoor, for example: LED Strips, LED Spotlights, LED Flood lights, LED Wall washers.
