$4.95

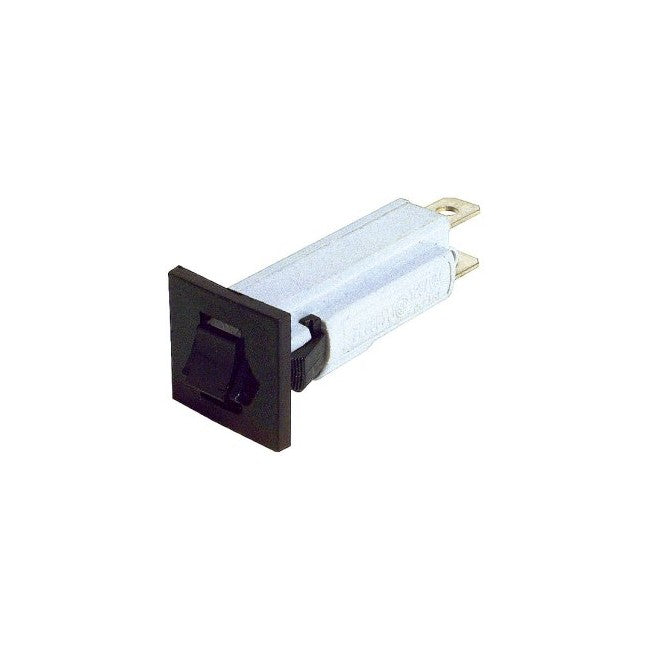

Snap in Mini Circuit Breakers designed to fit the same panel cutout as many fuse holders. Exceeding the current rating triggers the switch whichflicks down to warn of possible circuit problems. The switch cannot be moved manually to disconnect the circuit. Connections are made with 6.35mm quick connects. Specifications:
- Max. Operating Voltages: 32V DC, 250V AC, 50/60Hz.
- Resettable Overload Capacity: 10 times rated current.
- Reset Time: 2 Amp - 180 seconds max. 3 ~ 15Amp - 10 to 60 seconds.
- Endurance: Over 1,000 cycles at 200% of rated load.
- Mounting: Snaps into front panel from the front.
- Panel Opening: 16.1mm Ø (14mm across flats)
- Panel Thickness: 0.8 ~ 1.6mm.
- O/all length: 48.4mm # Typical Resistance VS Current Rating @ +25°C
- Current: 5.0 Amp
- 0.030 Ohm
