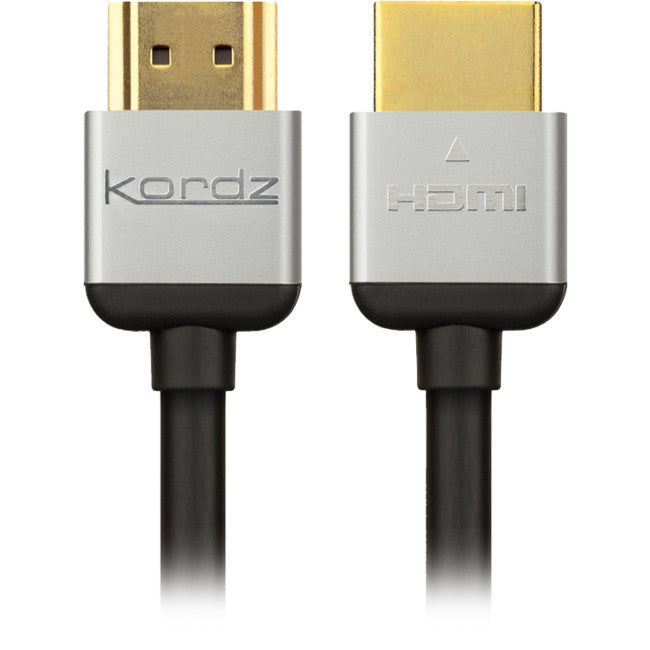

R3HD0120 1.2M THX CERTIFIED HDMI LEAD RACK INSTALL KORDZ KORDZ R.3-HD0120

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

R.3 Series - R3HD0120 Passive HDMI Cable - 1.20m

Unrivalled connectivity never replicated in the market.

The world’s most shielded HDMI cable that eliminates signal dropouts with an industry-leading success rate of 99.99%.

Kordz R.3 is their most robust installation HDMI cable, designed for tight spaces and engineered for electrical signal preservation to protect critical HDMI signals amidst high electrical noise environments.

A unique combination of advanced features and materials delivers unrivalled installation performance and reliability.

High-tech assembly and vacuum infra-red soldering minimise signal drop-outs, while nitrogen foam polyethylene insulation ensures the highest dielectric consistency for digital transmission.

With high flexibility and shallow operational depth, the Kordz R.3 HDMI Cable opens new installation design possibilities.

Used in space missions, military and medical settings, and iconic international events, the Kordz R.3 HDMI Cable is a significant component for critical signals and engineered todeliver maximum commercial uptime.



The Kordz R.3 Key features:

  • Anti-fatigue, die-cast zinc alloy connectors tested to ≥1,000 cycles & 2kg retention force
  • Double fully enclosed casings and unique copper wire annealing technique allows for twist rateresponsiveness while relieving device socket pressure
  • 100% of units tested for zero Bit ErrorRate (BER) @ 340Mcsc, <0.05% in-field failure rate
  • Available in a total of 14 precision rack fit lengths – 0.3m increments between 0.3m – 3.0m, 0.6m increments between 3.6m – 5.4m.
  • High bandwidth solid OFC conductors andinduction soldered pin transitions for benchmark inter-terminal uniformity
  • Halogen-free cable construction
  • DPL certified 4K 18G-DC
  • Kordz’ signature product performance and Lifetime Warranty.



Application

Video Format Support Data rate per channel Aggregate, TMDS Bandwidth
480i/p, 576i/p: ≤ 540Mbpsc/1.62Gbps 270MHz
720p/1080i: 742.5Mbpsc/2.22Gbps 371.25MHz
1080p 8-bit RGB/YCbCr 4:4:4 10/12-bit 4:2:2 or 4:2:0:
23.98/24/29.97/30 742.5Mbpsc/2.22Gbps 371.25MHz
50/59.94/60 1.485Gbpsc/4.455Gbps 742.5MHz
3D-24/30 1.485Gbpsc/4.455Gbps 742.5MHz
3D-50/60 2.97Gbpsc/8.91Gbps 1.485GHz
1080p 10/12/16-bit RGB/YCbCr 4:4:4
50/59.94/60fps 1.86-2.97Gbpsc/5.57-8.91Gbps ≤ 1.485GHz
2160p (UHD/4K)
HDMI 1.4b - 8-bit RGB/YCbCr 4:4:4 or 10/12-bit 4:2:2 or 4:2:0:



4096x2160p/24 (SMPTE) 2.97Gbpsc/8.91Gbps 1.485GHz
3840x2160p/23.98/24/29.97/30 2.97Gbpsc/8.91Gbps 1.485GHz
HDMI 2.0-8-bit YCbCr 4:2:0:
2160p*/50/59.94/60 2.97Gbpsc/8.91Gbps 1.485GHz
HDMI 2.0Mode- 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0:
2160p*/50/59.94/60-2D 9CEA-861-F 5.94Gbpsc/17.82Gbps 2.97GHz
2160p*30-3D 5.94Gbpsc/17.82Gbps 2.97GHz
VESA Graphics: Supports all as defined by HDMI 2.0 specification up to 17.82Gbps
Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
Audio Formats Support PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio (10.2 | 22.2 | 30.2ch
HDMI Audio Return Channel: Supported, System Dependant



Technical Specifications

HDMI CERTIFICATION ≤ 5.4m PASSIVE
HDMI CTS Certification High Speed with Ethernet
DPL Labs Certified Data Rate 6.0Gbpsc, 17.82Gbps aggregate (4K UHD)
HDMI Clock 27-340MHz
CONSTRUCTION
Primary Conductors Solid 32/28AWG OFC, length dependant
Insulation on TMDS Foamed PE/Polyolefin
Insulation on 4C + HEAC Pairs Foamed PE/Polyolefin
Shielding on TMDS Pairs Al/Mylar
Shielding Overall Al/Mylar + CU 90% coverage braid
Cable Jacket Halogen-free TPE, black 4.8mm
HDMI Connector Shell Anti-fatigue die cast Zn alloy, 1µ” 24K Gold plated
HDMI Connector Pins Solid OFC, 15µ” 24K Gold plated
Termination Contactless IR induction soldering
HDMI Backshell Al anodised front with Halogen-free TPE strain relief
MECHANICAL
Cable Diameter 0.3m – 2.7m: 32 AWG, 4.8mm/0.19”Ø | 3.0m – 5.4m: 28 AWG, 6.5mm/0.22” Ø Mounting Depth: 0.3m – 2.7m: 32 AWG, 47.0mm/1.85”Ø | 3.0m – 5.4m: 28 AWG, 54.0mm/2.13”Ø
Cable Bend Radius 0.3m – 2.7m: 32 AWG, 20.0mm/0.79”Ø | 3.0m – 5.4m: 28 AWG, 27.0mm/1.06”Ø
Retention Force (nom) 20N (approx 2kg / 4.4lbs) +10/-5%
