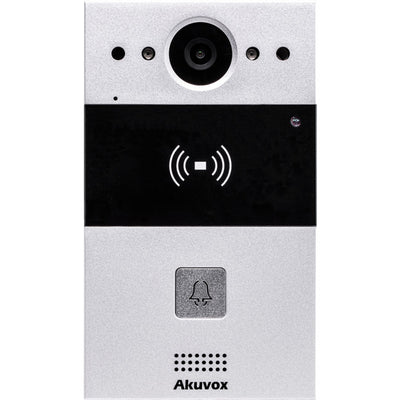

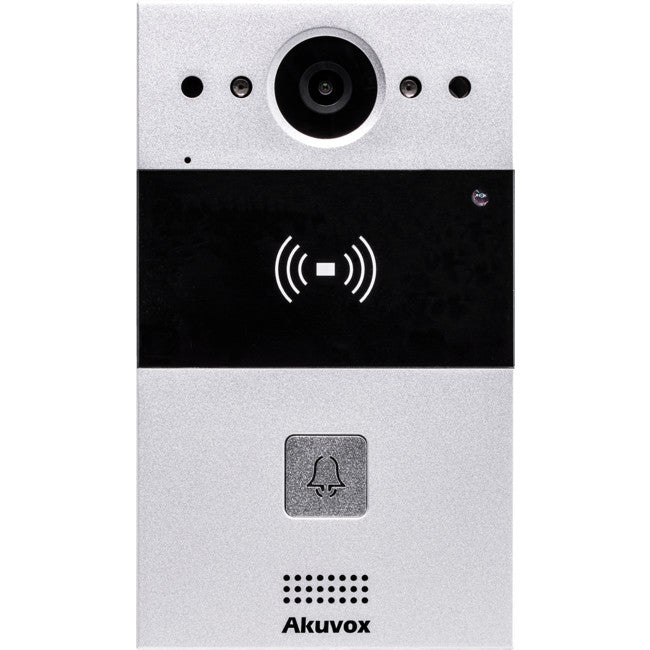

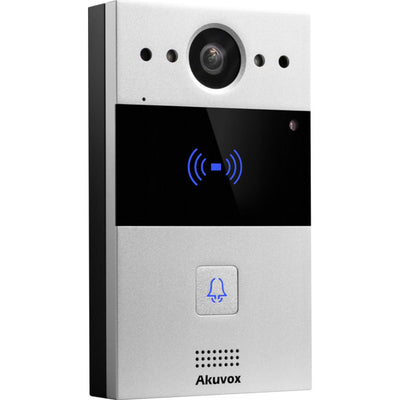

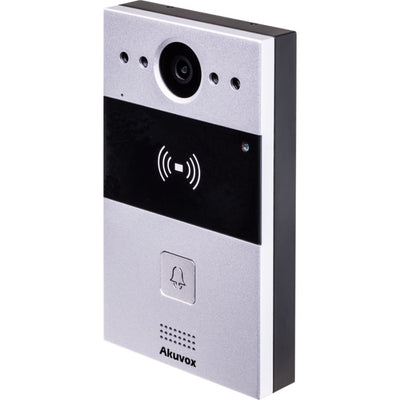

Akuvox R20A-2, 2 Wire SIP Video Door Phone with Camera, Card Reader is ideally suited for houses with old intercom systems looking to upgrade. The R20A-2, 2 Wire SIP Video Door Phone can work on existing old cable to provide State of the art SIP Solution with Video, RFID access control and Smartplus Mobile Video integration.
Akuvox R20A-2 also supports integration withAkuvox SmartplusMobile Video Service to enable receiving video intercom calls on mobiles / touch screen monitors.
Front panel: Aluminum alloy
Camera: 2M pixels, automatic lighting
Button: 1 call button
Light sensor: Support
Infrared sensor: Support
Wiegand port: Support
RS485 port: Support

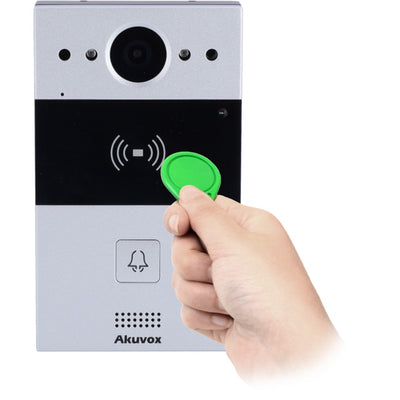

RF card reader: 13.56MHz (with NFC) & 125kHz
Relays out: 1
Inputs: 1
Microphone: 1
Speaker: 1
Power Interface:1
Power supply:48VDC / 24VDC
Water-proof & Dust-proof: IP65
Installation: Flush-mounted or Wall-mounted
Flush-mounted DIM: 189x120x56.5mm
Wall-mounted DIM: 145x85x27.5mm
Working Humidity: 10~90%
Working Temperature: -30°C ~ +60°C
Storage Temperature: -40°C ~ +70°C
SIP v1 (RFC2543), SIP v2 (RFC3261)
Narrowband audio codec: G.711a, G.711µ
Wideband audio codec: G.722
DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
Sensor: 1/2.7”, CMOS
Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
Video codec: H.264
Video resolution: up to 1920x1080
Max. image transfer rate: 1080p – 25fps
Viewing angle: 110°(H) / 58°(V)
High intensity IR LEDs for picture lighting during dark hours with internal light sensor
Compatible to 3rd-Party-Video components, e.g. NVRs
Relays controlled individually by DTMF tones
Camera permanently operational
Auto-night mode with LED illumination
White balance: auto
Minimum illumination: 0.1LUX
Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Auto-Provisioning
Web management portal
Web-based packet dump
Configuration backup / restore
Entry log export
Access table export / import
Firmware upgrade
System logs (include door access logs)
Office door phone with on-site or hosted IP-PBX
Remote site entry over Internet
Apartment/flat intercom with door access control
