$121.80

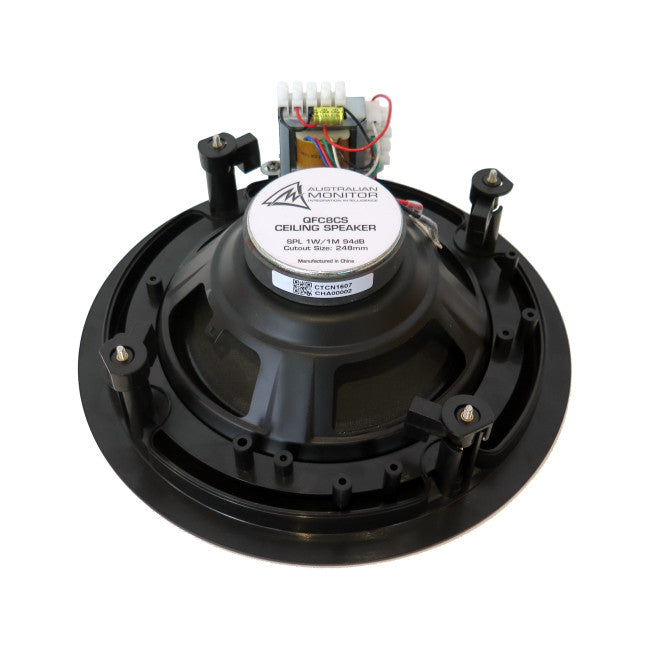

The all new QuickFit coaxial series of ceiling speakers features 3 new models, each model comprises a 2 way coaxial driver producing high SPL and intelligibility.
The frameless grills provide a modern sleek look sure to please end users, consultants and architects alike.
If you require a black ceiling speaker it’s as easy as changing the grill.
A black grill for each model can be purchased separately as an accessory.
The QFC5CS, QFC6CS and QFC8CS series of QuickFit ceiling speakers are the perfect choice for situations demanding high intelligibility and SPL.
Recommended for function rooms, school halls, retail spaces, boardrooms, place of worship, RSL’s, clubs, rubs, Restaurants and many other commercial applications.
Each model also features a supervisory capacitor as standard to allow for evacuation system integration.
EASE®GLL files simulation files are available for QuickFit ceiling speakers. EASE®is a registered trademark of AFMG Technologies GmbH

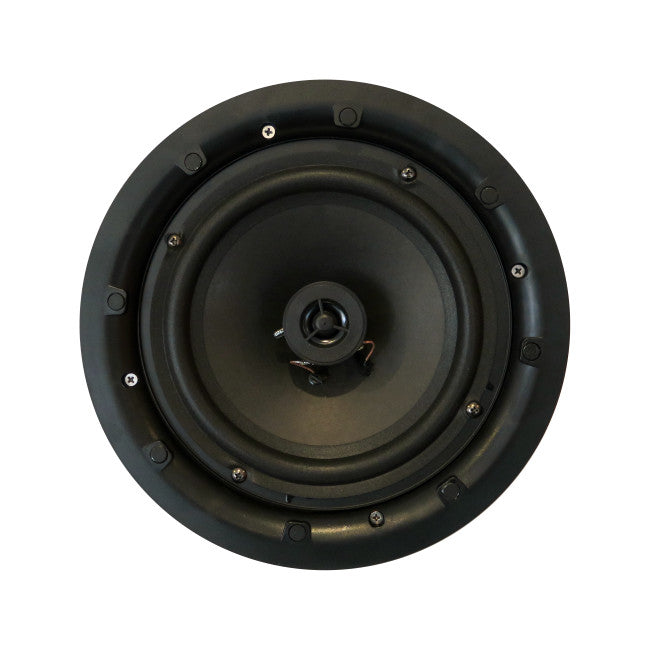

• 8 inch coaxial high powered driver

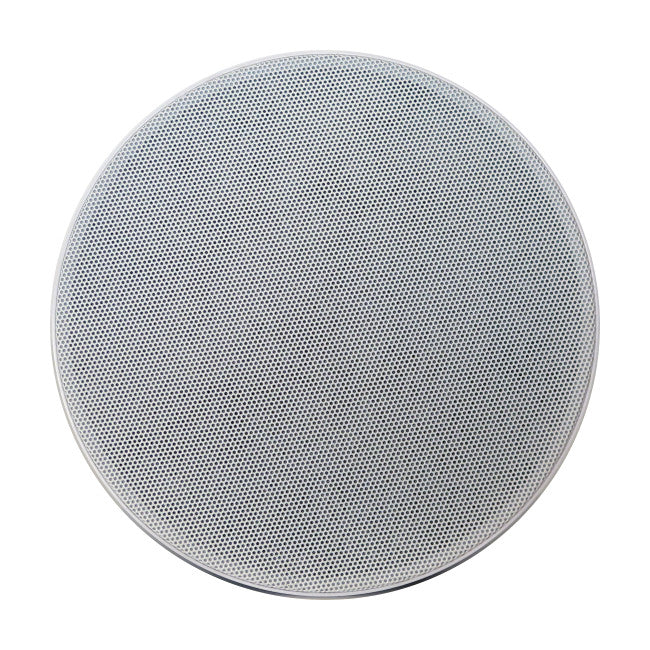

• QuickFit white frameless powder coated steel grill
•3.75, 7.5, 15, 30 watt taps @ 100V
• Evac. capacitor as standard
Form Factor Ceiling Max Continuous Power 30W Tappings 30W-15W-7.5W-3.75W-1.87W Max Program Power 60W IP Rating No Max Peak Power 120W EASE Model Yes SPL 1W/1m 94dB Powered Passive Max SPL RMS 109dB Driver Diameter 8" & 25mm Max SPL Peak 115dB Colour White (RAL 9010) Frequency Response (-3dB) 60Hz - 20kHz Warranty 5 years Dispersion 100deg
Product Dimensions
(W x D x H)282mm x 85mm Shipping Dimensions
(W x D x H)105mm x 287mm x 287mm Net Weight 1.6 Kg Shipping Weight 1.9 Kg GTIN EAN 9323383019430
Please Note: Online stock only for this item. Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or to a specific distance from supply location. Local pickup may be available on some items by prior arrangement. Shipping charges may still apply for this item for Click and collect in store orders as this item may still need to be shipped to us for collection from the local pickup location.
Please use the contact us form to get an accurate shipping quote based on your order quantity and location to avoid order cancellation charges.
