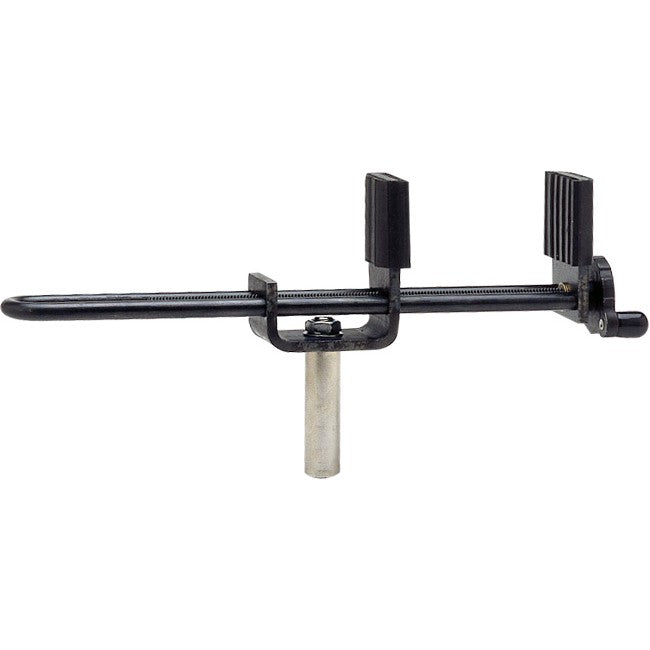

PV366 366 WIDE OPENING HEAD VICE JAW PANAVISE VICE GRIP PANAVISE PV-366

366 WIDE OPENING HEAD - PANAVISE

PanaVise features a wide variety of state-of-the-art vises and work holding devices. All designed around our patented "split ball" design, which allows for positioning your work on three planes. You can "tilt (180°), turn (360°) and rotate (360°)" your work all from a single knob.

PanaVise vises and work holding devices are perfect for hobbies and crafts, industry, electronics, wood working and wood carving, small home repair and any work bench environment. Our extremely versatile vises and work holding devices have hundreds of uses only limited by your imagination. All our vises and work holding devices come with a "lifetime warranty" and are guaranteed to make any project more productive. PanaVise, "better then a third hand!"

PanaVise vises and work holding devices are designed around a series of interchangeable components. Heads, bases and base mounts. You can mix and match yourself. Or choose one of our popular pre-selected combinations. Or choose a combination and an accessory head, base or base mount to create your own custom work center that is perfect just for you.

FEATURES:

All Vise Heads are compatible with the 300 Standard Base,the 305 Low Profile Base, and the 380 Vacuum Base. A new or additional head will add extra productivity to your existing PanaVise, or start here to build your own work holding solution! All stems are 5/8" (15.9mm) in diameter.

  • Model: 366 Wide Opening Head
  • Hold larger objects with this general purpose Vise Head!
  • Jaw pads gently, yet firmly, hold a wide variety of objects including circuit boards, coils and tuners. Jaws open a generous 6".
  • Jaws pads are 1.875" (47.6mm) high x 1.5" (38.1mm) wide. Opens to 6" (152.4mm) with jaw pads and 6.25" (158.8mm) without jaw pads
  • Ribbed, neoprene jaw pads provide a sure grip and canhold and insulate PC boards and other larger objects; reverse the pads and the wide "V" holds delicate cylindrical objects
  • Remove jaw pads from steel jaws when working with high heat
  • Black oxide coating reduces glare and promotes eye comfort
  • Head Length: 11" (279.4mm)
  • Compatible with all 300 series Bases
  • Height (shaft to top of jaw pads): 5.125" (130.2mm), Weight: 1.6 lbs (0.7kg)
