Overview

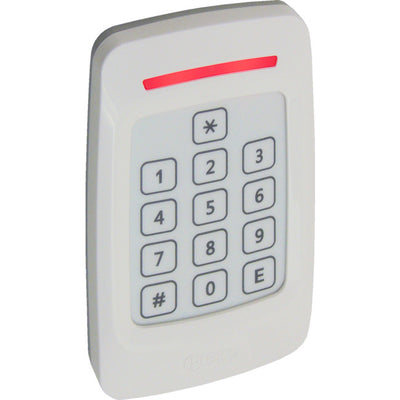

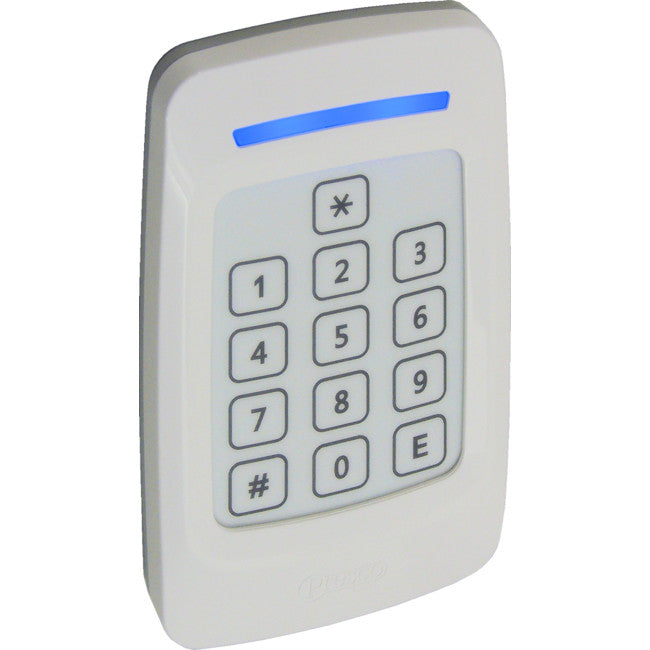

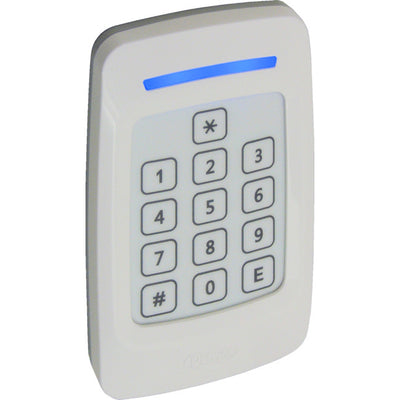

PSC16 INDOOR KEYPAD & PROX READER - PRESCO
The Presco PSC16 Proximity Reader is an advanced,self contained RFID (Radio Frequency IDentification) contactless reader. It is capable of interfacing to either aWiegand input control panel or to Nidac?s range of Presco PAC decoders.
Features:
- Outputs Presco and Wiegand format data
- Auto senses output type required via white wire connection
- Read range of up to 20cm
- Compatible with Presco PAC access controllers and allother Presco decoders, the entire syste uses low cost non-shielded cable and keypads can be up to 1 kilometer fromthe door controller (power supply and cable dependent)
- Compatible with industry standard 26bit Wiegand systems, fully configurable for other systems with up to 64 bits of data from the keypad and custom prox. cards and tagsare available for other wiegand formats
- Over 19,000,000 possible codes when used with Presco PAC
- Audible and visual confirmation of all actions
- Designed and manufactured in Australia
- 3 year manufacturer?s warranty
Specs
Operating Voltage 8 - 15 Volts D.C.
Operating Current 150 mA. max
Operating Temperature 0’_x0015_C to 50’_x0015_C
Read Range Up to 20cm (8”)
Frequency 125 ’€ 5 kHz
Wiegand Output Pulse width: 50’…s
Pulse separation: 2ms
Dimensions 126mm x 80mm x 17.5mm
Weight 145g
