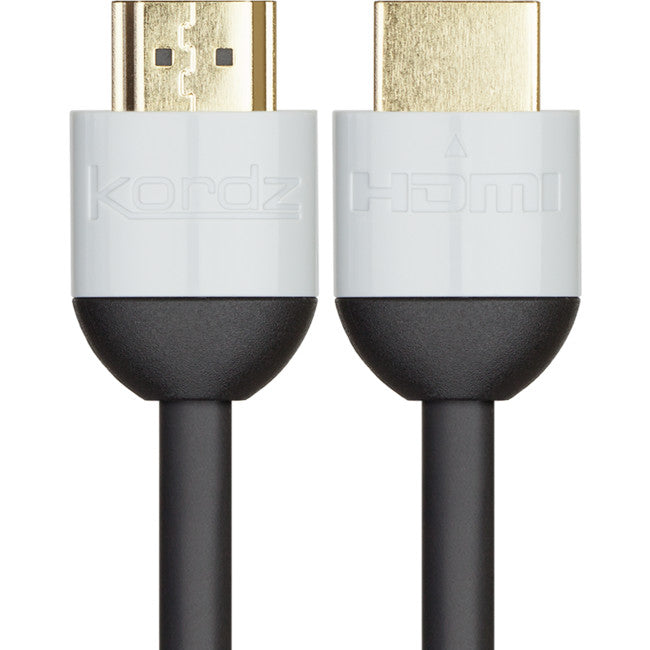

PRO Integrator HDMI® Cable Series
Kordz PRO series is a general application HDMI cable engineered for the discerning integrator.
It employs materials and construction methodologieswhich deliver a balance of economy and dependable performance without compromising the most critical elements common to all Kordz HDMI cables; the retention of digital signal integrity.
- Engineered and constructed to assure installation success and longevity,
- High Speed with Ethernet in lengths to 5m (13ft) for 2160p (4K) support,
- Standard with Ethernet with operational support to 1080p/60 up to 20m (65ft),
- Induction soldered pin transitions for benchmark inter-terminal uniformity,
- Economy ABS + PVC boot shell assembly with folded steel HDMI connector,
- 100% of units tested on the production line for electrically continuity on all pins, with 1080p/60 application test,
- UL CMG fire rated in lengths 5m+,
- Limited lifetime warranty,
- Licensed HDMI 2.0 Adopter company.
Technical Specifications
HDMI Compliance: ≤ 5.0m lengths
- HDMI CTS Certification High Speed with Ethernet
- Certified Data Rate 3.4Gbpsc, 10.2Gbps aggregate
- Supported Data Rate > 3.4Gbpsc (4K UHD)
- Supported HDMI Clock 27-340MHz
HDMI Compliance: 7.5m - 20m lengths
- HDMI CTS Certification Standard with Ethernet
- Certified Data Rate 0.7425Gbpsc, 2.25Gbps aggregate
- Supported Data Rate > 1.485Gbpsc (1080p/60)
- Supported HDMI Clock 27-148.5MHz
Construction
- Primary Conductors Solid 30-24AWG OFC, length dependent
- Insulation on TMDS HD-PE ≤1.7 relative permittivity
- Insulation on 4C + HEAC Pairs Solid polyolefin ≤ 2.0 relative permittivity
- Shielding on TMDS Pairs Al/Mylar, 25% overlap
- Shielding Overall Al/Mylar + Al braid 85% coverage
- Cable Jacket UL CMG fire rated PVC
- HDMI Connector Shell Premium gauge folded steel, 1µ" 24K Gold plated
- HDMI Connector Pins Solid OFC, 15µ" 24K Gold plated
- Termination Contactless IR induction soldering
- HDMI Backshell ABS shell assembly with PVC boot strainrelief
Mechanical
- Cable Diameter 30AWG 5.7mm/0.22" | 26AWG 8.0mm/0.31" | 24AWG 8.6mm/0.34"
- Mounting Length cable gauge dependent (see below)
- Cable Bend Radius cable gauge dependent (see below)
- Retention Force (nominal) 9.9N (1kg / 2.2lbs) +10/-5%
Physical Dimensions
Applications
- General high reliability HDMI connectivity, 1080p/60 support to 20m | 65ft,
- Residential,
- Rack & AV Cupboard,
- Corporate & Board Room,
- Education.
Application Specifications
-
Video Format Support Data rate per channel / Aggregate, TMDS Bandwidth
- All lengths
- 480i/p, 576i/p ≤ 540Mbpsc/1.62Gbps, 270MHz
- 720p/60, 1080i/60 742.5Mbpsc/2.22Gbps, 371.25MHz
- 1080p/24-30, 8/10/12-bit YCbCr 4:2:0/4:2:2, 8-bit 4:4:4 742.5Mbpsc/2.22Gbps, 371.25MHz
- 1080p/50-60, 8/10/12-bit YCbCr 4:2:0/4:2:2, 8-bit 4:4:4 148.5Mbpsc/4.455Gbps, 742.5MHz
- Lengths to 5m only (High Speed)
- 1080p/50-60, 10/12/16-bit YCbCr/RGB 4:4:4 max 2.97Gbpsc/8.91Gbps, 1.485GHz
- 2160p (UHD/4K)
- 2160p/23.98/24/29.97/30, 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0 2.97Gbpsc/8.91Gbps, 1.485GHz
- 2160p/50/59.94/60, 8-bit YCbCr 4:2:0 (HDMI 2.0) 2.97Gbpsc/8.91Gbps, 1.485GHz
- HDMI 2.0 mode
- 2160p*/50/59.94/60, 8-bit 4:4:4, 10/12/16-bit 4:2:2/4:4:4 max 5.94Gbpsc/17.82Gbps, 2.97GHz
- VESA graphics Supports all as defined by HDMI specification
- 3D Video Supports all as supported and/or mandated by HDMI specification
- Color Spaces RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
- Audio Formats Support PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio
- 3D Audio (10.2 / 22.2 / 30.2ch Supported, device &video format dependent
- HDMI Ethernet Channel Supported, system dependent
- HDMI Audio Return Channel Supported, Single Mode &Common Mode
* HDMI 2.0 2160p modes encapsulate both 4,096 or 3,840 Hres variants & 4:3 anamorphic pixel ratio support
Models
| Length | Model | AWG | Max. Video |  |
 | 0.5m | | | 1'7" | PRO-HD0050 | 30 | 2160p (UHD) |
| 1.0m | | | 3'3" | PRO-HD0100 | 30 | 2160p (UHD) |
| 1.5m | | | 4'11" | PRO-HD0150 | 30 | 2160p (UHD) |
| 2.0m | | | 6'6" | PRO-HD0200 | 30 | 2160p (UHD) |
| 3.0m | | | 9'10" | PRO-HD0300 | 30 | 2160p (UHD) |
| 5.0m | | | 16'5" | PRO-HD0500 | 26 | 2160p (UHD) |
| |
 | 7.5m | | | 24'7" | PRO-HD0750 | 26 | 1080p/60 |
| 10.0m | | | 32'9" | PRO-HD1000 | 26 | 1080p/60 |
| 12.5m | | | 41'0" | PRO-HD1250 | 24 | 1080p/60 |
| 15.0m | | | 49'2" | PRO-HD1500 | 24 | 1080p/60 |
| 20.0m | | | 65'7" | PRO-HD2000 | 24 | 1080p/60 |
