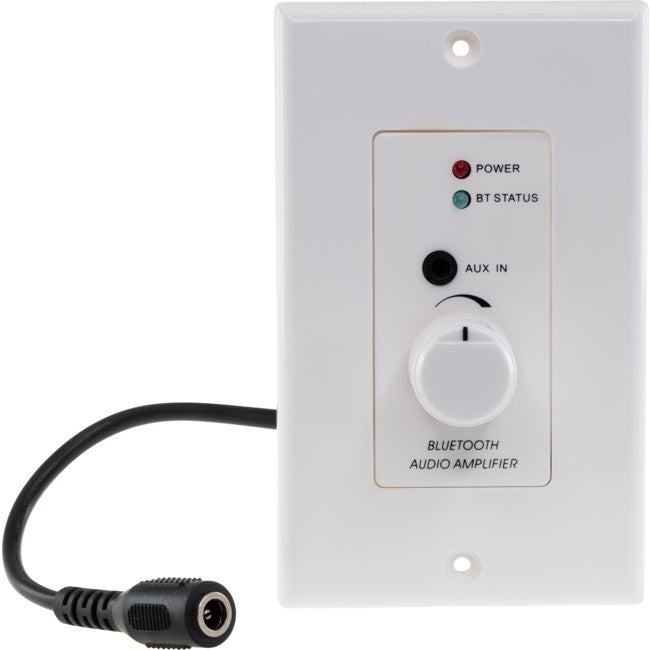

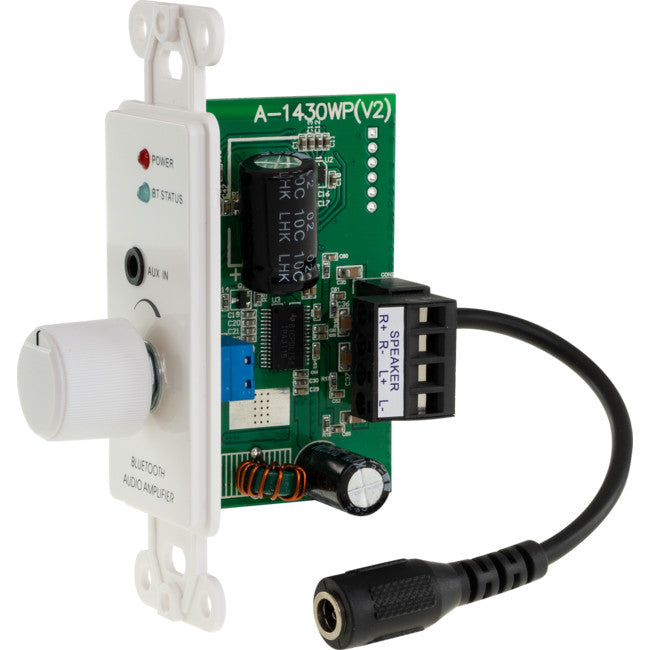

PRO1430WP 24W BLUETOOTH WALL PLATE AMP CLASS D APTX BT4.2 PRO2 A-1430WP

24W Wall Plate Audio Amplifier with CSR Bluetooth v4.2

The Pro1351WP was our first wall plate featuring an inbuilt, high efficiency, 15W amplifier. As Sheldon Cooper said in the Big Bang Theory, ‘everything is better with Bluetooth’, so we added Bluetooth. The Pro1430WP takes things up a notch by increasing power to24W and utilising BT4.2. This allows for password protectionand a larger transmission range. This unit will easily powerceiling speakers like the Earthquake ACS3.0 or indoor/outdoor speakers like the Wintal Studio5 speakers.

Another big feature of this Bluetooth amplifier is every individual wall plate has unique ID, which helps to distinguish all the wall plates installed in the same area. The password to pair with the Bluetooth amplifier is the same 1234.

SPECIFICATIONS:

• Audio Inputs :Bluetooth Receiver or stereo audio line level
• Bluetooth Version:Bluetooth v4.2 compliant with aptX

• Bluetooth Receive Distance:50 Meters (open space)

• Power Amplifier Type:Stereo Class-D

• Output power:24W(rms) per channel(@ RL=4 ohm)
• THD+N :0.1 % (@ RL=4 ohm, f = 1 kHz)

• Minimum Load Resistance:4 ohm
• Includes Speaker Protection circuit.

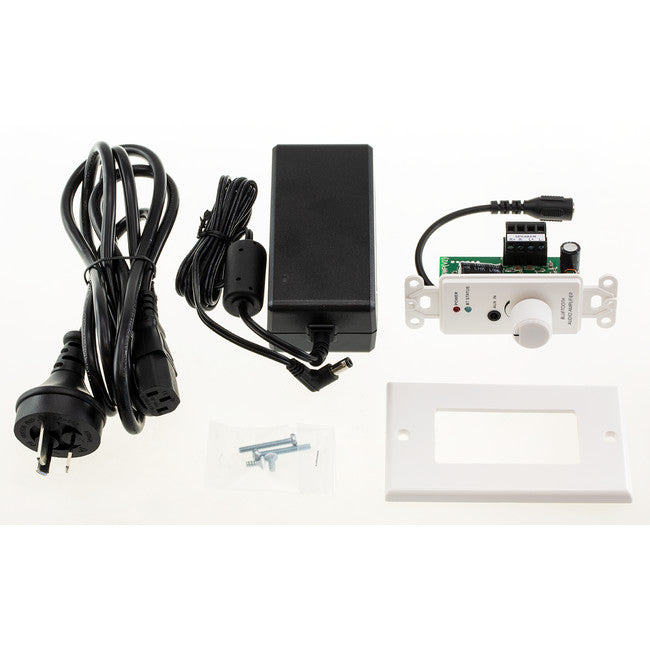

• Power Source:24 VDC/3A included

• 3 min link-lost timeout function. Bluetooth automatically switch to paring state if reconnecting fail.

• Audio priority:BT > Line In.

• Mounting Depth: 50mm


What is the passkey for Bluetooth connections?

The passkey for the PRO1430WP is 1234.
