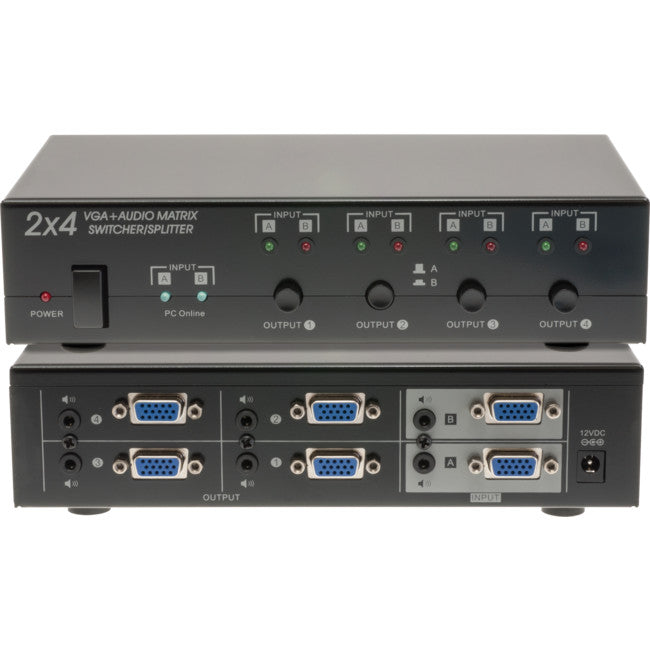

PRO1338 2X4 VGA + AUDIO MATRIX SWITCHER SPLITTER PRO2 A-1338

PRO1338 2X4 VGA + AUDIO MATRIX SWITCHER SPLITTER PRO2 A-1338

Overview

PRO1338 PRO2 VGA Matrix

The PRO1338 VGA Matrix is perfect for larger installations where multiple displays or projectors are required. Each of the four outputs can independently displayeither of the two inputs. Perfect for classroom and demonstration rooms, conferences and houses of worship, and even restaurant or shop displays! Great for huge impact in large environments using up to 4x projectors or for small conference rooms where several small monitors can be used.

Bars, clubs and function spaces can benefit from the flexible distribution of independent video and audio sources depending on the size of the function — small functions mayonly require one projector while the remaining three outputs can display advertisements or sports throughout the rest of the venue!


Features

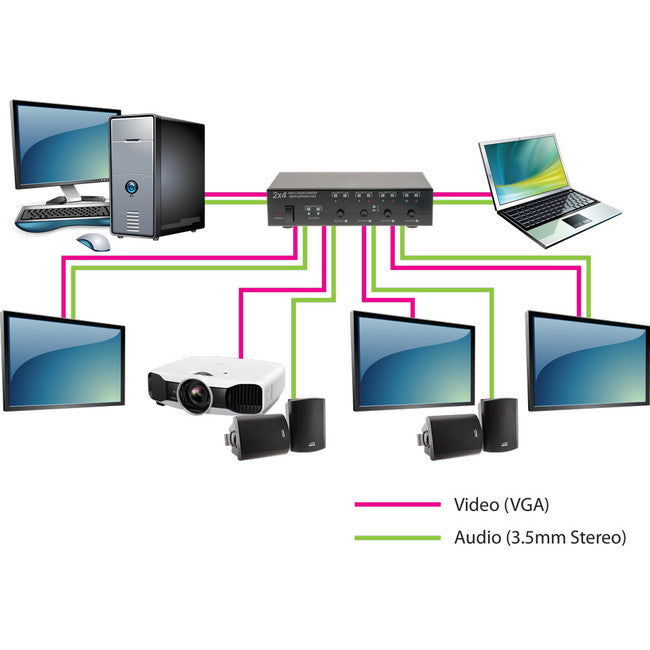

  • Allows two VGA source devices to provide video and audioto four displays / projectors
  • Front panel selection buttons
  • Each output can be set to input A or B
  • Blue LED Indicator for PC Online
  • Video and Audio can be cascaded

Specifications

Specifications


VGA Pixel Frequency 300 MHz
Extended Distance 65 metres
LED Indicator
  • Source Online: Blue
  • Input A: Green
  • Input B: Red
Input/Output Connector HD-15 Female
Audio Operation Frequency 20Hz~20kHz
Input Impedance 47kΩ
Max. Audio Input 4V p-p
Extended Distance 100 metres
Input/Output Connector 3.5mm Mini-stereo Jack
Power Power Source 12V DC / 1.2A

Please Note: Online stock only for this item. Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or to a specific distance from supply location. Local pickup may be available on some items by prior arrangement. Shipping charges may still apply for this item for Click and collect in store orders as this item may still need to be shipped to us for collection from the local pickup location.

Please use the contact us form to get an accurate shipping quote based on your order quantity and location to avoid order cancellation charges.
