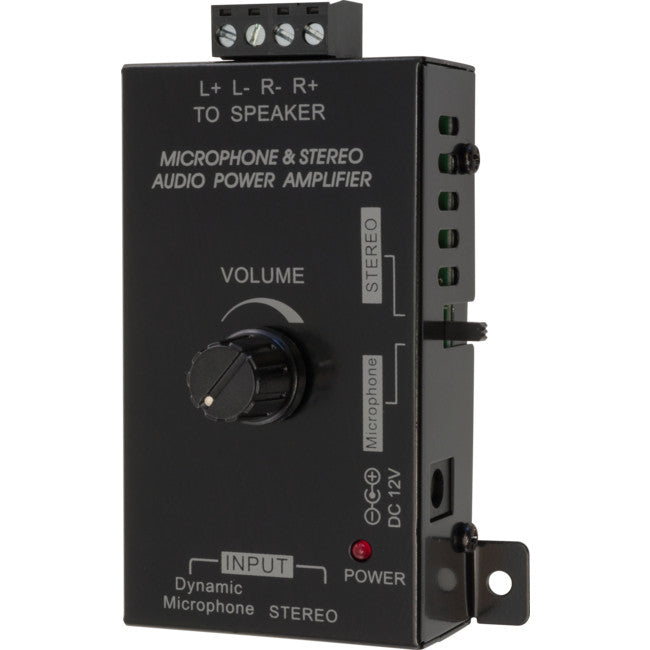

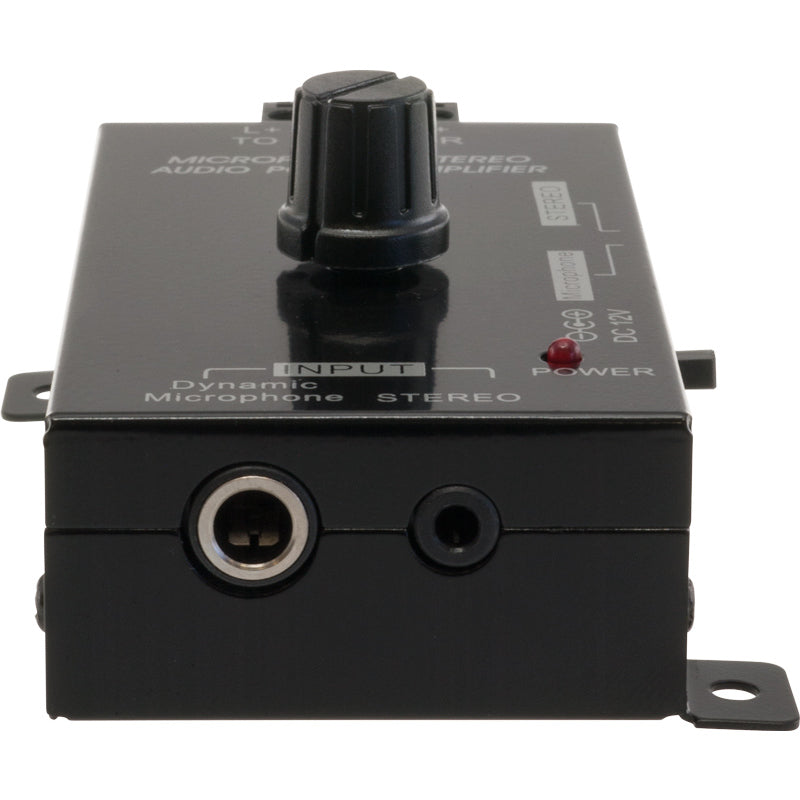

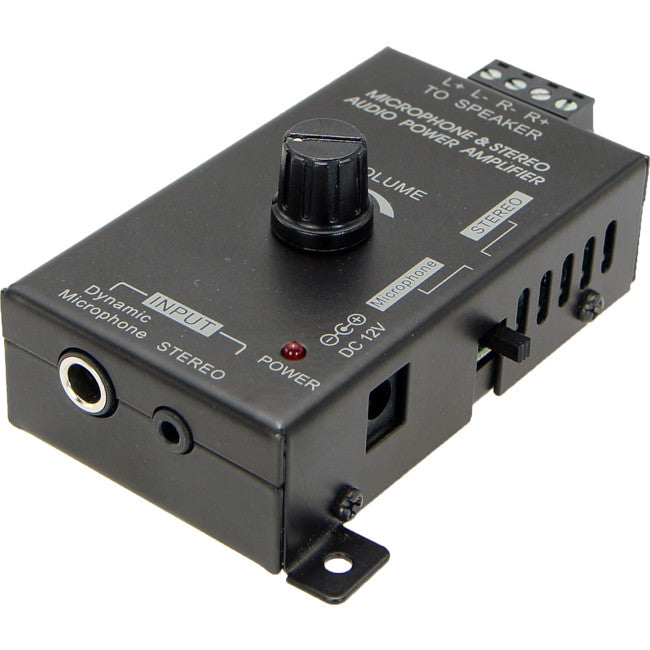

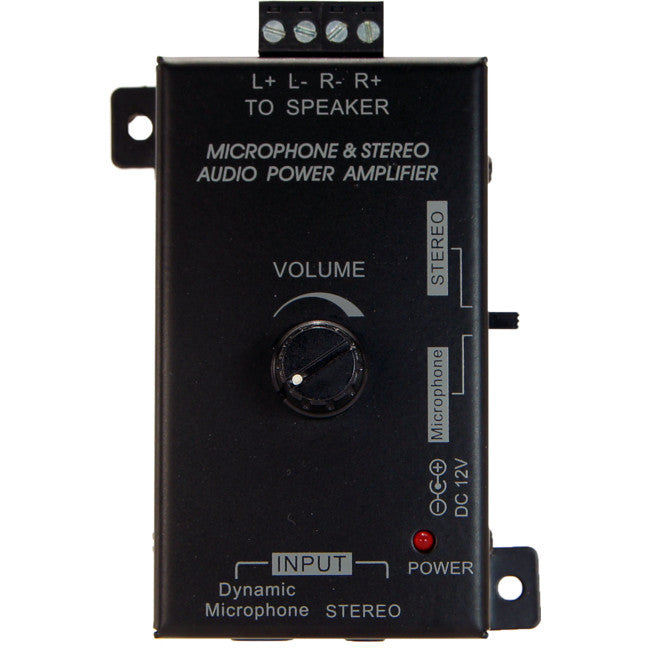

PRO1328 STEREO AUDIO POWER AMPLIFIER MICROPHONE AND STEREO CLASS D PRO2 A-1328

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

{tab Features}

Use the PRO1328 to power in-ceiling speakers with the audio output from any source device such as computers, DVD players, TVs and even Microphones. Alternatively the PRO1328is perfect for shop display installations, where basic audioamplification and compact size is required.

If your Flat Screen TV's built-in speaker output is belowpar, the PRO1328 can provide an elegant solution to add you own passive speakers for clearer and more powerful listening!

With the abilty to switch from line-level to dynamic microphone input, the PRO1328 can be used to give your shop displays and demonstrations more reach!

Ideal for use with:

  • Computers
  • DVD players
  • TV's
  • Microphones

Features

  • Small size and compact
  • Also suitable for wall-mounting
  • Works with 4Ω, 6Ω and 8Ω speakers
  • To speaker screw terminals handle wire sizes from 24 to 12 gauge
{tab Specifications}
  • Inputs: Dynamic microphone or stereo audio line level
  • Microphone pre-Amplifier gain: 40dB
  • Power Amplifier Type: Stereo Class-D
  • Output power: 15W(rms) per channel (@ RL=4 ohm)
  • THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
  • Minimum Load Resistance: 4Ω
  • Includes Speaker Protection circuit.
  • Power Source: 12 VDC / 2A (included)
  • Size (LxWxH): 92.6mm x 73.4 mm x 26.6mm
  • Net Weight (Unit only): 160 g
