PRO1323 4-ZONE AUDIO POWER AMPLIFIER INTEGRATED 4 SOURCE STEREO PRO2 A-1323

Overview

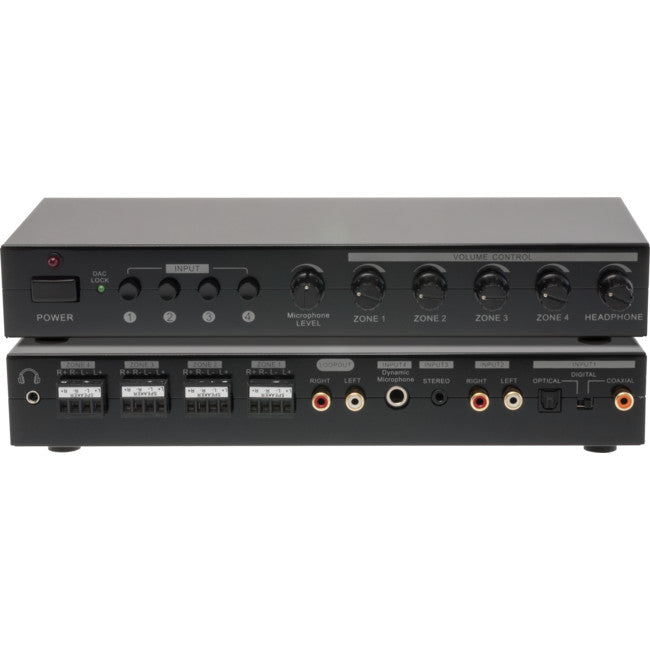

PRO1323 PRO2 4-ZONE AUDIO POWER AMPLIFIER

With a diverse range of inputs, including digital (optical or coaxial) and dynamic microphone inputs, and the ability to adjust each zone's volume independently, the PRO1323 is a quick and easy way of adding audio in up to four rooms. It also features a Loop-out for expanding to another unit, increasing the number of zones further.

  • Four-in and five-out
    • IN: 1 × Digital (Optical / Coaxial selectable), 1 × RCA Stereo, 1 × 3.5mm Stereo, 1 × Dynamic Microphone input
    • OUT: 4 × Speaker output + 1 × Headphone output
  • Built-In audio digital to analogue converter (DAC)
    • Audio DAC Lock indicator
  • Independent microphone level control
  • Individual speaker volume control
  • Provides line loop-out for expanding to more zones
  • Large detachable terminal block (supplied) for quick and easy installation
    • Screw terminals handle wire sizes from 24 to 12 gauge

Specifications

Specifications


Speaker Audio Power Amplifier (×4)


Amplifier Type Stereo Class-D
Output Power 15W (RMS) per channel (@ RL = 4Ω (Ohm))
THD+N 0.06% (@ RL = 8Ω (Ohm), f = 1 kHz)
Minimum Load Resistance 4Ω (Ohm)
Other Includes Speaker Protection Circuit

Earphone Audio Power Amplifier


Output Power 105mW (RMS) per channel
THD+N 0.05% (@ RL = 16Ω (Ohm), f = 1 kHz)
Minimum Load Resistance 16Ω (Ohm)

Power & Dimensions


Power Consumed 9A Max

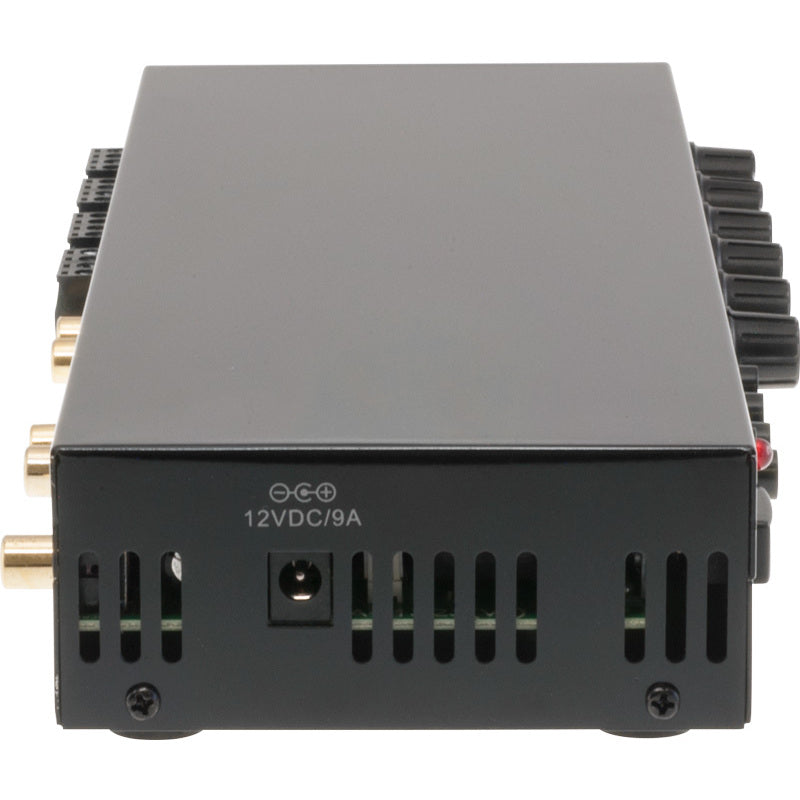

Power Source 12V DC (Included)
Size (L×W×H) 285mm × 128mm × 43mm
Net Weight (Unit Only) 0.8kg
