4 Zone Stereo Audio Power Amplifier With Headphone Output
Speaker Audio Power Amplifier (×4)
- Amplifier Type: Stereo D-Class
- Output Power: 15W (RMS) per channel
- THD+N: 0.06% (@ R L= 8Ω (Ohm), f = 1kHz)
- Minimum Load Resistance: 4Ω (Ohm)
- Includes Speaker Protection Circuit
Earphone Audio Power Amplifier
- Output Power: 105mW (RMS) per channel
- THD+N: 0.05% (@ RL= 16Ω (Ohm), f = 1kHz)
- Minimum Load Resistance: 16Ω (Ohm)
Power & Dimensions
- Power Consumed: 9A Max

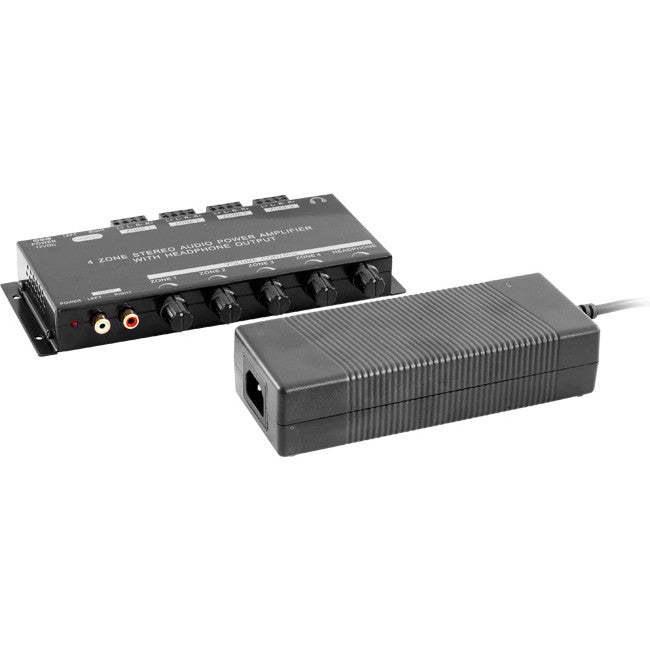

- Power Source: 12V DC (Power Supply Included)
- Size (L×W×H): 205mm × 108mm × 26mm
- Net Weight (Unit only): 0.48kg
