PRO1235D AV DISTRIBUTION OVER CAT5 1X4 COMPOSITE WITH IR PRO2 A1235D

but The IR Emitter has to be plugged in IR Link Socket (not from socket 1,2,3)

Distribute composite video and stereo audio plus IR signals using economical CAT5 cable. The PRO1235D is a readyto go kit including a receiver. The system can be expanded up to 4 zones with additional PRO1235DS spare receivers, also available separately.

Specifications:

• Designed to be surface mounted for in-wall composite video, and stereo audio with IR control applications
• Transmission distance:
  • Audio :300 meters
  • Video : 300 meters
• Interface:
  • 3.5mm mini socket (for emitters)
  • 3x RCA connectors (for audio/video)
  • 4x RJ45 (for CAT5)



• Dimension: 157 mm x 65mm x 29mm
• Power supply: 12VDC, 200mA
• Loop-out function

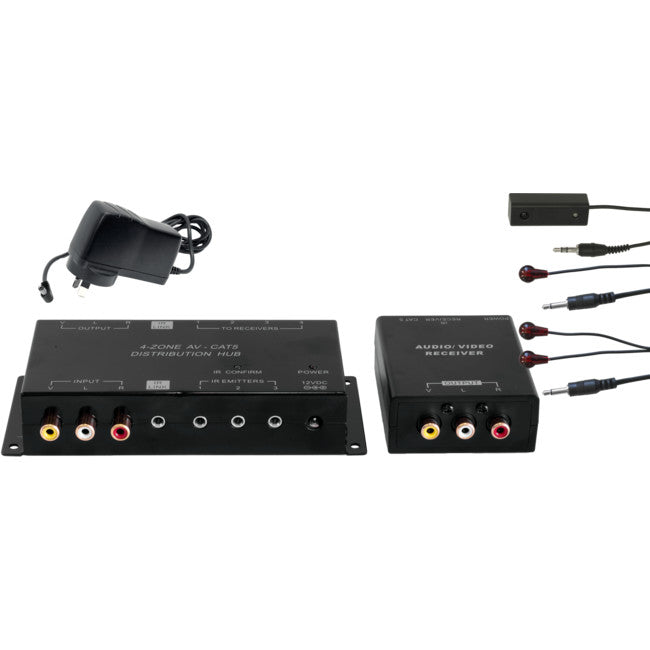

Kit includes:

• PRO1235 AV + IR distribution hub
• PRO1235DS Spare AV + IR receiver
• Single IR emitter
• Dual IR emitter
• IR receiver stick
• 12V 1.2A switchmode power supply
