PRO1048 4-WAY AV S-VIDEO SELECTOR 4 IN 1 OUT COMPOSITE SVIDEO PRO2 A-1048

PRO1048 4-WAY AV S-VIDEO SELECTOR 4 IN 1 OUT COMPOSITE SVIDEO PRO2 A-1048

$32.45

Features

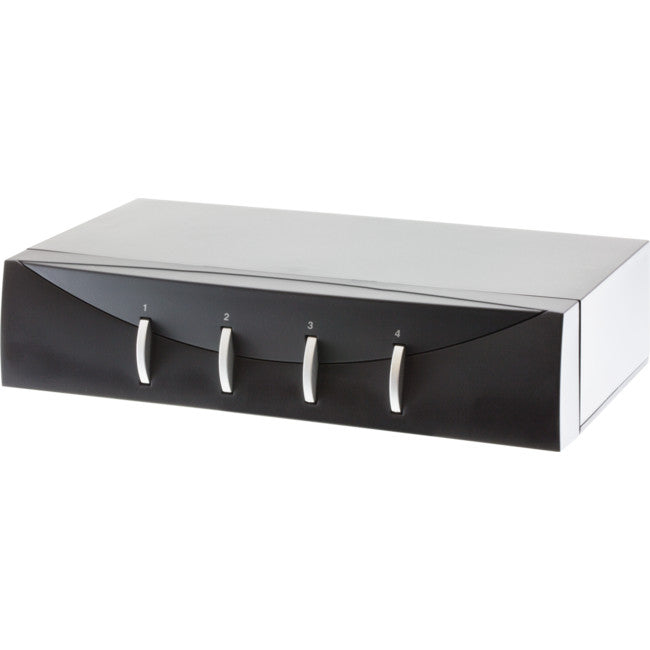

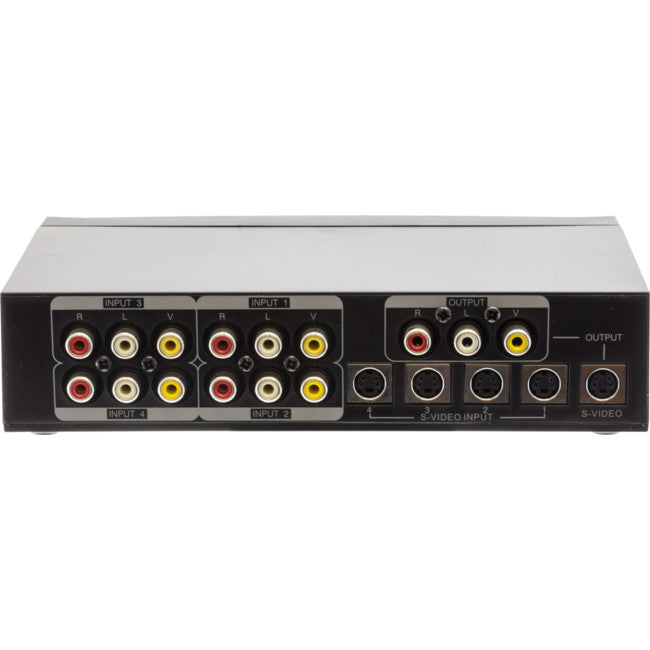

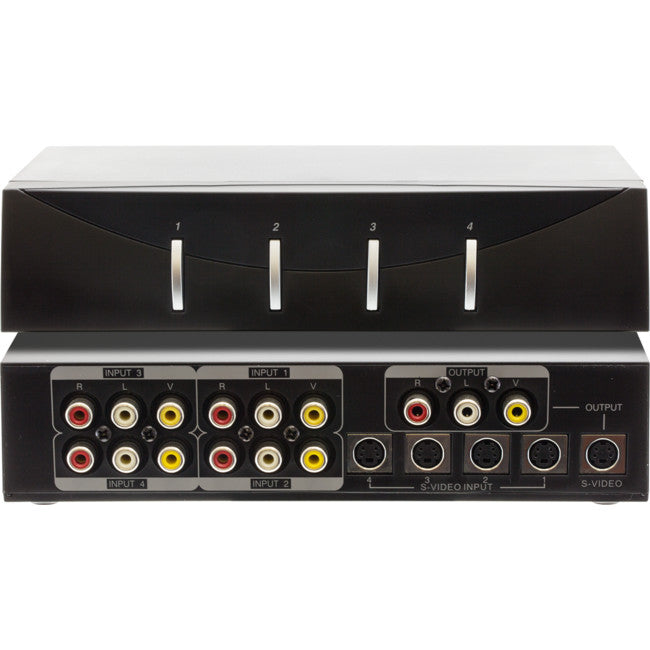

This 4 way AV svideo selector connects up to four AV devices such as DVD players, VCRs or gaming consoles with a single output to your TV and switch between them as required. Inputs can be either composite or S-video.

Specifications

Audio :

Frequency range	10Hz-20K Hz
Insertion Loss	0.5 dB limited
Channel Separation(@1K Hz)	50 dB normal 45dB limited
Crosstalk Between Function(@1K Hz)	60dB normal 55dB limited

Note:

The generator impedance should be 600 ohm.
Signal output reading is taken across a 47K ohm load.
Product Input 4.7K ohm terminated. (on testing channel
separation and crosstalk)

Video :

Frequency Range	0.3M-6M Hz
Insertion Loss	1 dB limited
Isolation Loss	35 dB limited

Chrominance :

Frequency Range	4.43M±0.5M Hz
Insertion Loss	1dB limited.
Isolation Loss	35dB limited.

Luminance :

Frequency Range	0.3M-1M Hz
Insertion Lloss	1dB limited.
Isolation Loss	35dB limited.

Composite/S-Video signal conversion :

Video Input	1V P-P
Luminance Output	0.9V P-P
Chrominance Output	0.286V P-P

Note:

The generator impedance should be 75 ohm.
Input 75 ohm terminated.
