PRE126 STEREO PRE AMP WITH BLUETOOTH DUAL ZONE AUDAC AUDAC PRE126

PRE126 Dual Zone Stereo Pre amplifiers

PRE126 is a simple yet versatile, single rackspace, 6 channel stereo preamplifiers with dual zones

It offers the perfect solution for a wide variation of applications where various and multiple music sources should be mixed and distributed through either one or two audio zones.

They are reliable, easy to install, and simple to operate, but still provide the possibility to connect and control all kinds of audio sources.

It is constructed as a six channel stereo preamplifier where of two channels are balanced microphone inputs, which both contain a three-band tone control, gain control, phantom power and a talk over function.

The other four input channels are direct lineinputs, where of one is constructed as a balanced stereo line input, while the remaining line inputs are unbalanced RCA connections.

PRE126 is a two-zone 6 channel stereo preamplifier containing a variety of input possibilities for microphone and line level audio signals, offering a possibility for a wide range of small to medium sized audio
installations in various kinds of applications with a two-zone audio distribution system.

It features two balanced mono inputs with phantom power and three band tone control allowing connection of microphones or line level signal sources.

The switchable talkover function suppresses background music if a priority signal is present, making it suitable for paging or voice file announcements.

The four stereo line level inputs are implemented as a balanced one fitted with XLR connectors and three unbalancedones fitted with RCA connectors.

Hereby, connection possibilities for a wide variety of line level sources is guaranteed.

Additionally, an integrated Bluetooth receiver (mixed with Ch 3) and 3.5 mm jack connection on its front panel (mixed with Ch 4) are offering convenient wired or wireless connection possibilties for portable and handheld devices including laptops, smartphones and tablets.

A priority mute contact suppresses all (nonpriority) music sources in case of contact closure, allowing to link autonomous alarm systems.

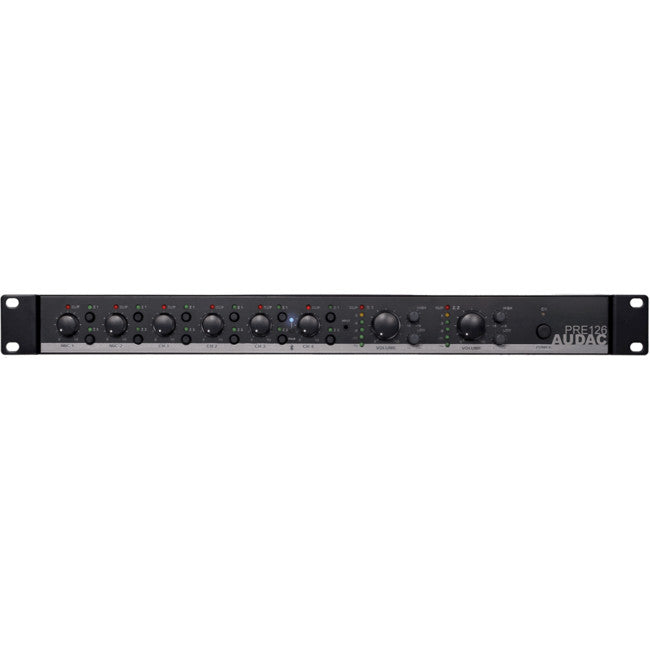

Input volume control is done using the corresponding rotary dials on the front panel, while routing is settings are made through zone selection buttons.

Each output section features a 6-segment LED VU bar, a master volume control and 2-band tone control.

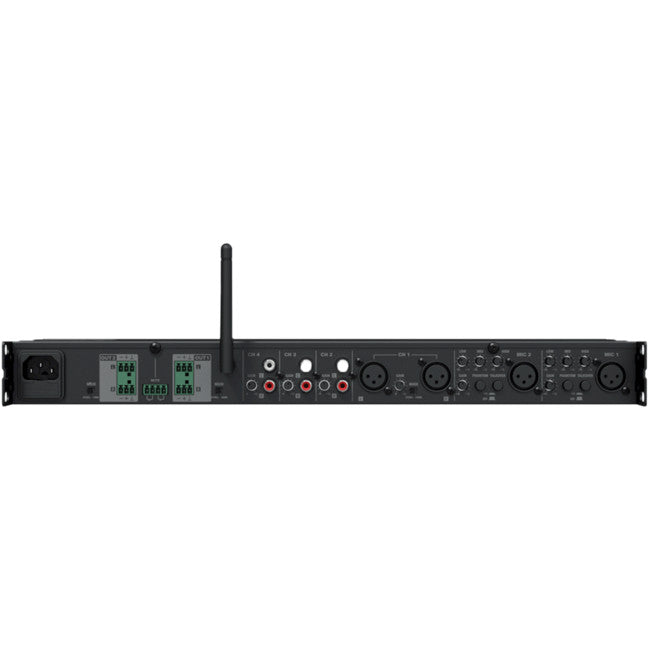

Connections and input or output configurations such as gain adjustment and mono/stereo switching can be done through the provided controls on the back of the device.

Features

  • Two zone system
  • 6 Channel stereo preamplifier
  • 2 Mic inputs with phantom & talkover
  • One balanced stereo line input (XLR)
  • Three unbalanced stereo line inputs (RCA)
  • 3.5 mm Jack input on front
  • Integrated Bluetooth receiver
  • Priority mute contact input
  • Balanced stereo output

Applications

  • Restaurants,
  • bars
  • Shops
  • Hotels
  • Warehouses
  • Business offices
  • Public buildings

Specifications

SYSTEM SPECIFICATIONS


  • Inputs
2 x Balanced microphone (XLR)
  2 x Balanced stereo line (XLR)
  3 x Unbalanced stereo line (RCA)
  Bluetooth receiver (mixed with Ch 3)
  Front 3.5 mm jack (mixed with Ch 4)
  Priority mute contact (one for each output)
  • Outputs
2 x Stereo balanced line (3-pin Euro Terminal Block - 3.81 mm)
  • Input sensitivity
Mic -6 dB ~ -50 dB
  Line -20 ~ +4 dB
  • EQ Input Mic 1-2
High 12.5 kHz ±15 dB
  Mid 2.5 kHz ±15 dB
  Low 80 Hz ±15 dB
  • EQ Output
Treble 2.5~20 kHz ±15 dB
  Bass 100 Hz ±15 dB
  • Phantom power mic
15V DC
  • Frequency response
20 Hz - 20 kHz
  • Signal / Noise ratio
> 90 dB
  • THD + N
< 0.05 dB
  • Cross Talk
> 70 dB
  • Power Supply
100 ~ 240 V AC / 50 ~ 60 Hz
  • Power Consumption
12 Watt

PRODUCT FEATURES


  • Dimensions (Width x Height x Depth)
482 x 44 x 335 mm
  • Weight Net
4.1 Kg
  • Unit Height
1 HE

SHIPPING & ORDERING


  • Packaging
Cardboard box
  • Shipping weight and volume
5.1 Kg - 0.013 Cbm
