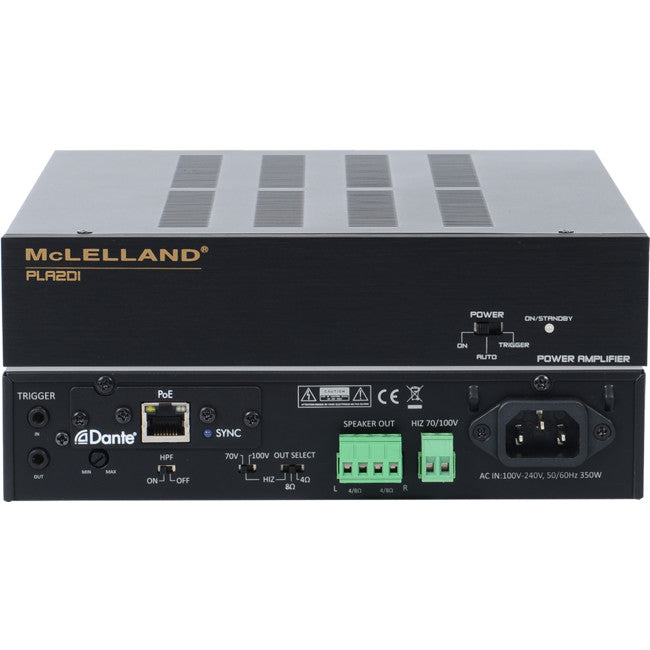

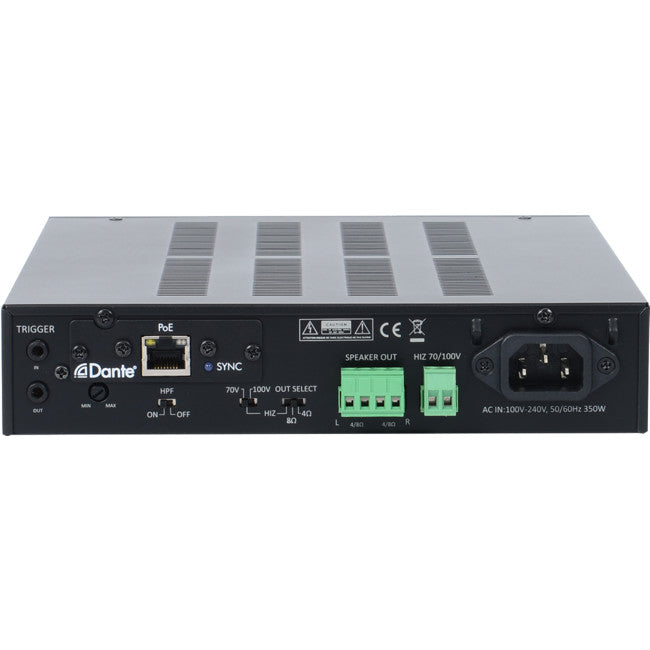

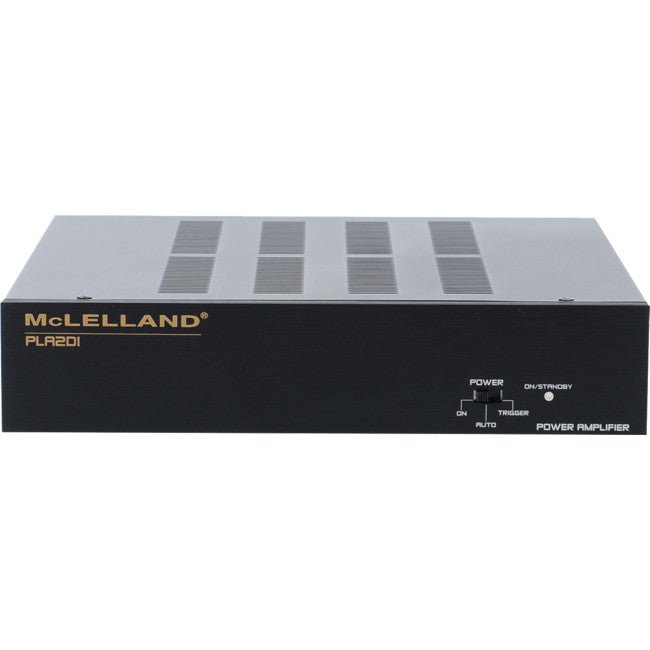

PLA2DI 120W 2CH AMPLIFIER WITH DANTE MCLELLAND PLA2DI

120W RMS Two Channel Power Amplifier with Dante

Features

  • Stereo into 4-8 Ohm loads
  • Bridgeable for 70V or 1 00V (Direct Drive)
  • Slot card with integrated Dante receiver
  • Power down after -15 minutes of no signal and comply with Energy Star Power consumption limits of < 0.5W in standby
  • Yellow LED (Front Panel) to indicated Standby mode is active
  • Terminal Block analog audio inputs on 2 CH amp
  • 2 x amplifier outputs, bridgeable to 1 channel
  • Volume, Auto on/off signal sensing
  • Natural cooling without Fan
  • TRIGGER could be external remoting ON/OFF
  • Short circuit protection
  • Overheating protection

Specifications

Dante Audio Interface

  • 2x2 audio channels
  • I2S digital audio format
  • 16, 24 or 32-bit audio samples (per device or per channel)
  • 44.1 KHz, 48KHz, 88.2KHz and 96KHz sample rate

Network Interface

  • Standard 100Mbps Ethernet
  • RMII Ethernet interface with MDIO
  • Hardware time-stamping, supporting sample-accurate playback
  • Transmit flows: 2 (unicast or multicast)
  • Receive flows: 2 (unicast or multicast)
  • Latency from 2ms

Amplifier/ Rated Power

  • 4ohm Stereo Mode = 120W (22 V) RMS output (steady state). per channel @ < 1 % THD+N
  • Bohm Stereo Mode = 120W (31 V) RMS output (steady state), per channel @ < 1 % THD+N
  • 70V Bridge Mode= 240 W output (steady state), per channel@ < 1 % THD+N
  • 100V Bridge Mode= 240 W output (steady state), per channel@< 1 % THD+N
  • 1/8 Rated Power Run Time: continuous operation
  • Frequency Response: 20Hz-20kHz +0/-2dB @ 4ohm load
  • Signal to Noise: >90dB A WTD
  • Dimension: 214mm(W) x 249.Bmm(D) x 44mm(H)
