PLA2 120W POWER AMPLIFIER COMPACT 100V OR 8OHM SPK MCLELLAND PLA2

Features

  • It used 9.5 inches special tiny design.
  • Two Channels Model ? 120W RMS/Per channel.
  • Stereo into 4-8 Ohm loads.
  • Bridged mode 240W output for 70V or 100V (Direct Drive)
  • Power down after ~15 minutes of no signal and comply with Energy Star Power consumption limits of < 0.5W in standby.

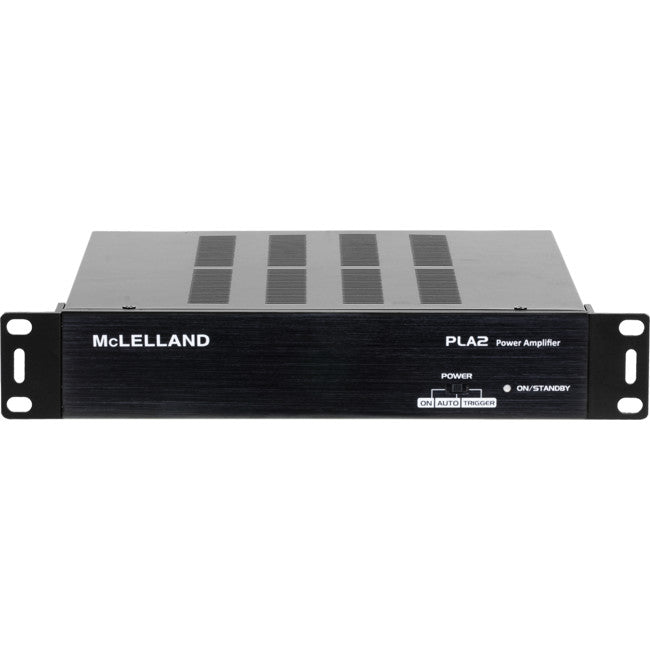

  • Red LED ( Front Panel) to indicated Standby mode is active.
  • Terminal Block analog audio inputs.
  • Selection for Power-Up mode.
  • Switch for High Pass Filter.
  • Natural cooling without Fan.
  • TRIGGER could be external remoting ON/OFF.
  • Short circuit protection.
  • Overheating protection.

Specifications

  • Stereo Mode (all channels driven)
  • 120W x 2, 8O (31 V) RMS output (steady state), per channel @ < 1 % THD+N
  • 120W x 2, 4O (22 V) RMS output (steady state), per channel @ < 1 % THD+N
  • Bridged Outputs For 70V/100V (Switch at “HIZ” position)
  • 240W, 70V @ < 1 % THD+N
  • 240W, 100V @ < 1 % THD+N
  • Frequency Response 20 Hz - 20 kHz, +/- 2 dB @ 4O Load
  • Signal to Noise >90dB @ 1W(20 Hz - 20 kHz)
  • Input Sensitivity1.0V (+0dBu) @ Max Output 4O
  • Gain Value ?25 dB @ 4O
  • Input Impedance >10k, Balanced.
  • Maximum Input Level 12.3 V (+24 dBu)
  • Trigger In/Out DC 12V
  • High Pass Filter 80 Hz(±2dB)

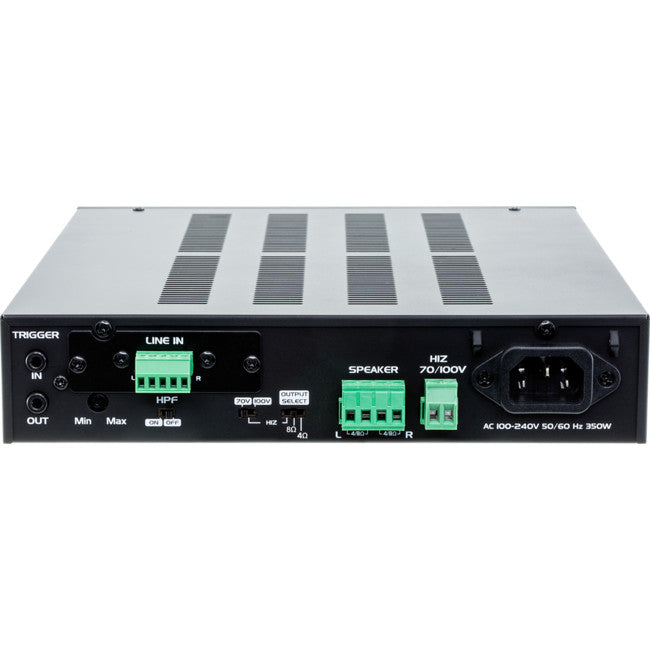

  • Input Connector 5 pin Euro terminal
  • Trigger Connectors 3.5 mm Jacks
  • Output Connectors 4 pin Euro terminal (4O/8O)
  • Dimensions 214mm(W) x 249.8mm(D) x 44mm(H)
  • Net Weight 1.94 Kg
  • Power Requirements 100 - 240 VAC, 50 - 60 Hz, 350W
