PIXBAR6H-WH - 6 x 12W RGBWAU Pixel Control Bar with barndoor (White)

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

Pixel Bar with 6 x 12W RGBWAU LEDs, White Housing, True1 in/out, 3/5 Pin DMX in/out - includes barndoor

Photometrics

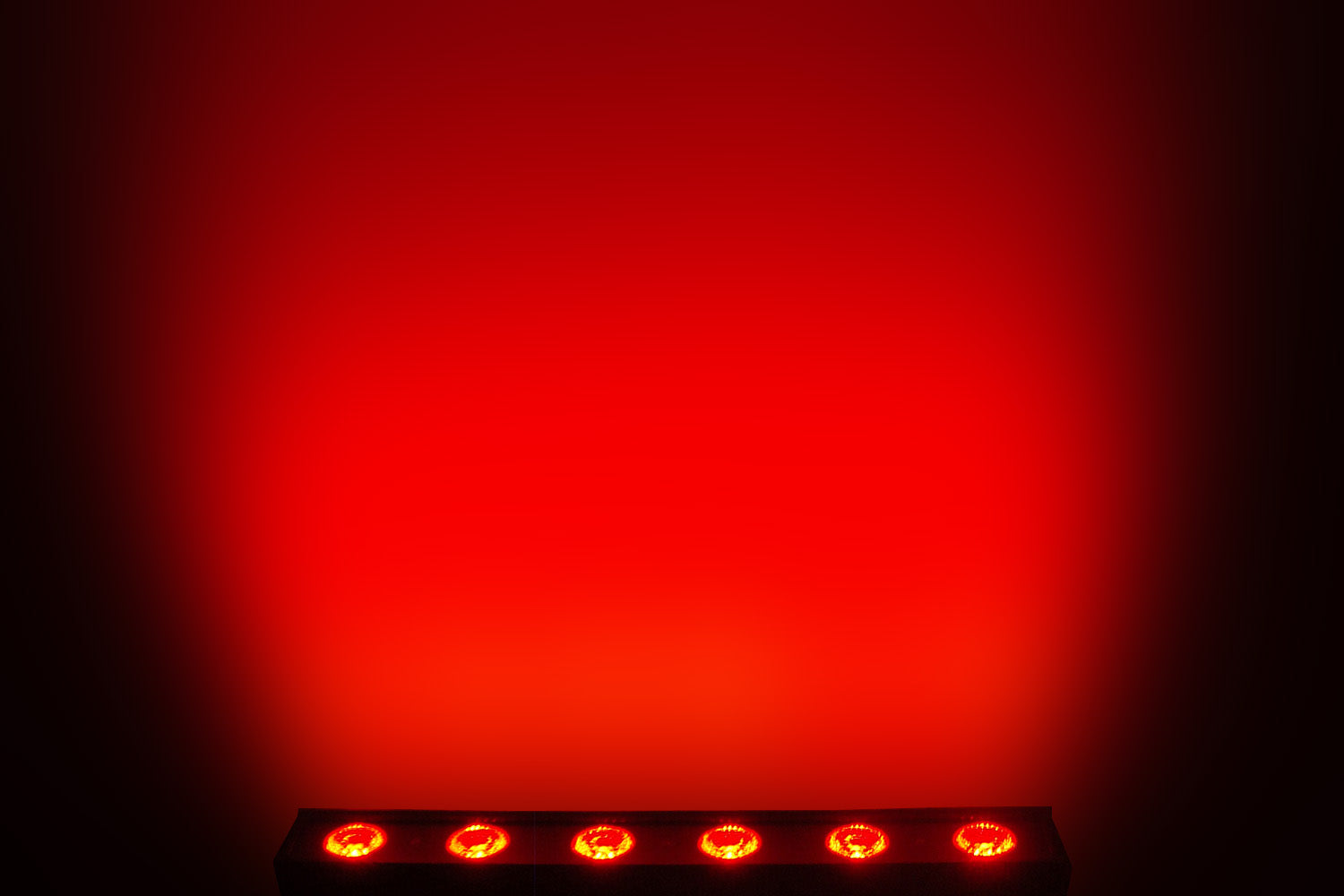

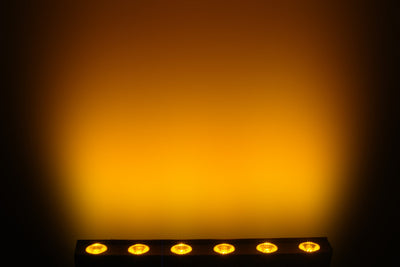

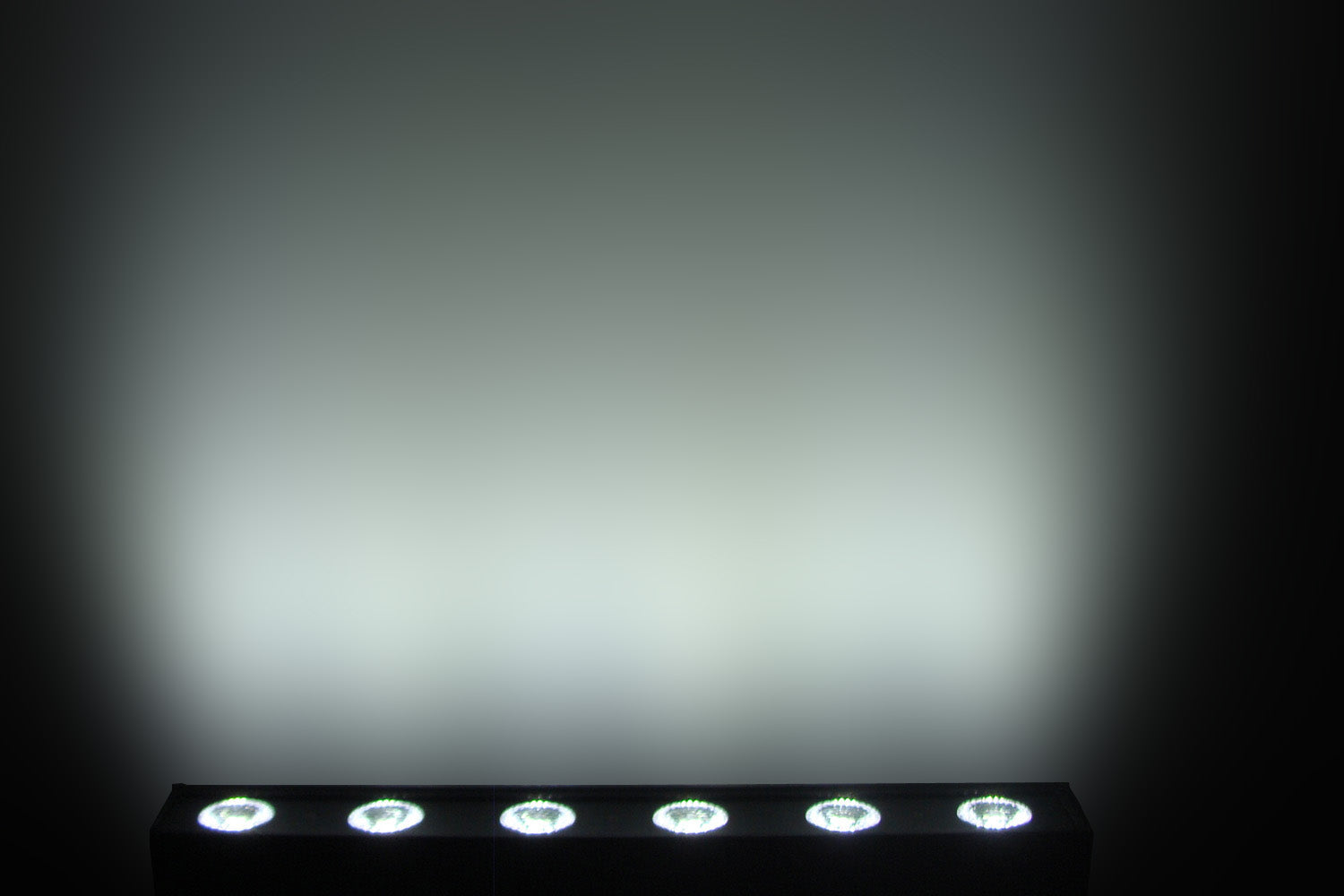

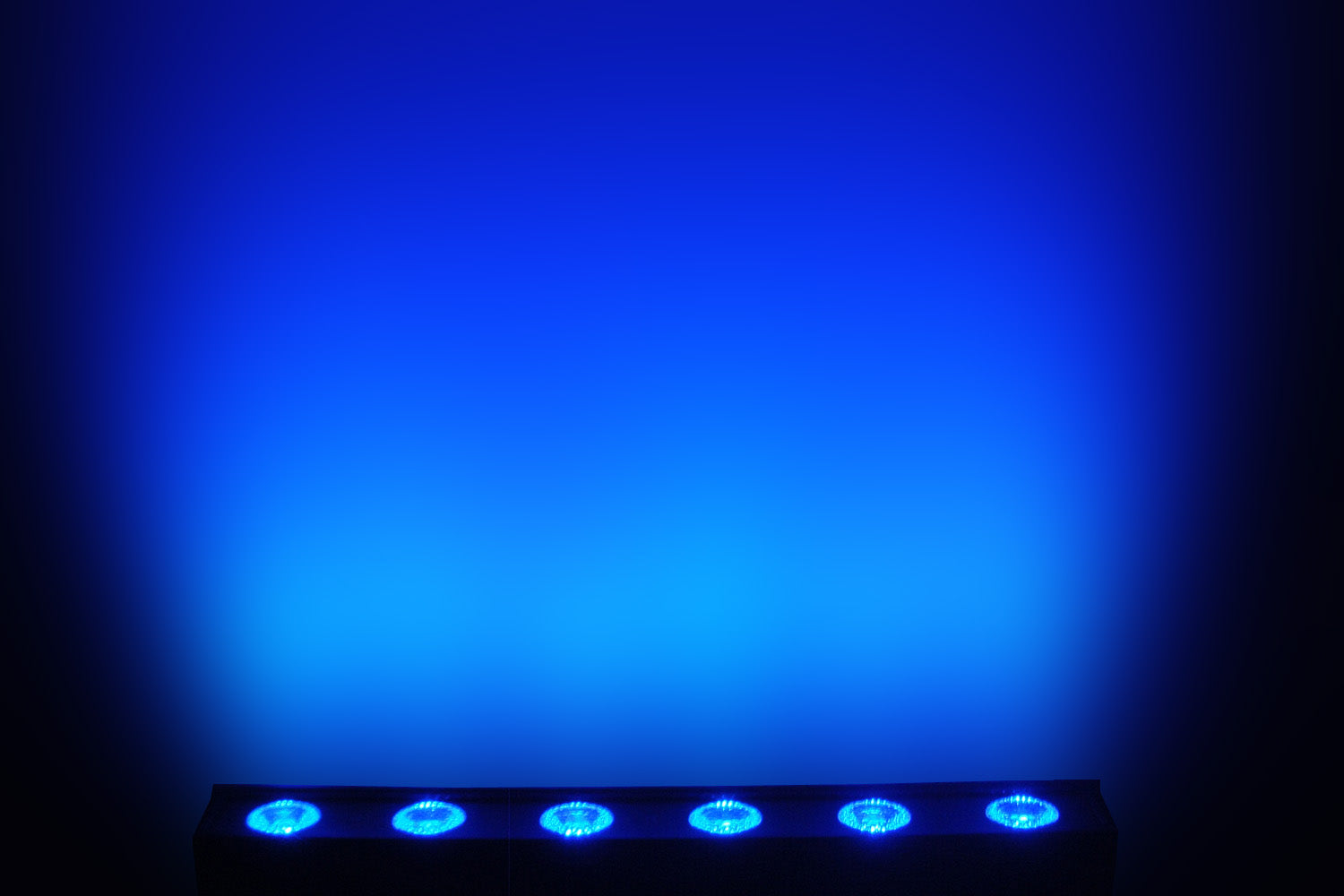

• Light Source: 6 x 12W RGBWAU LEDs

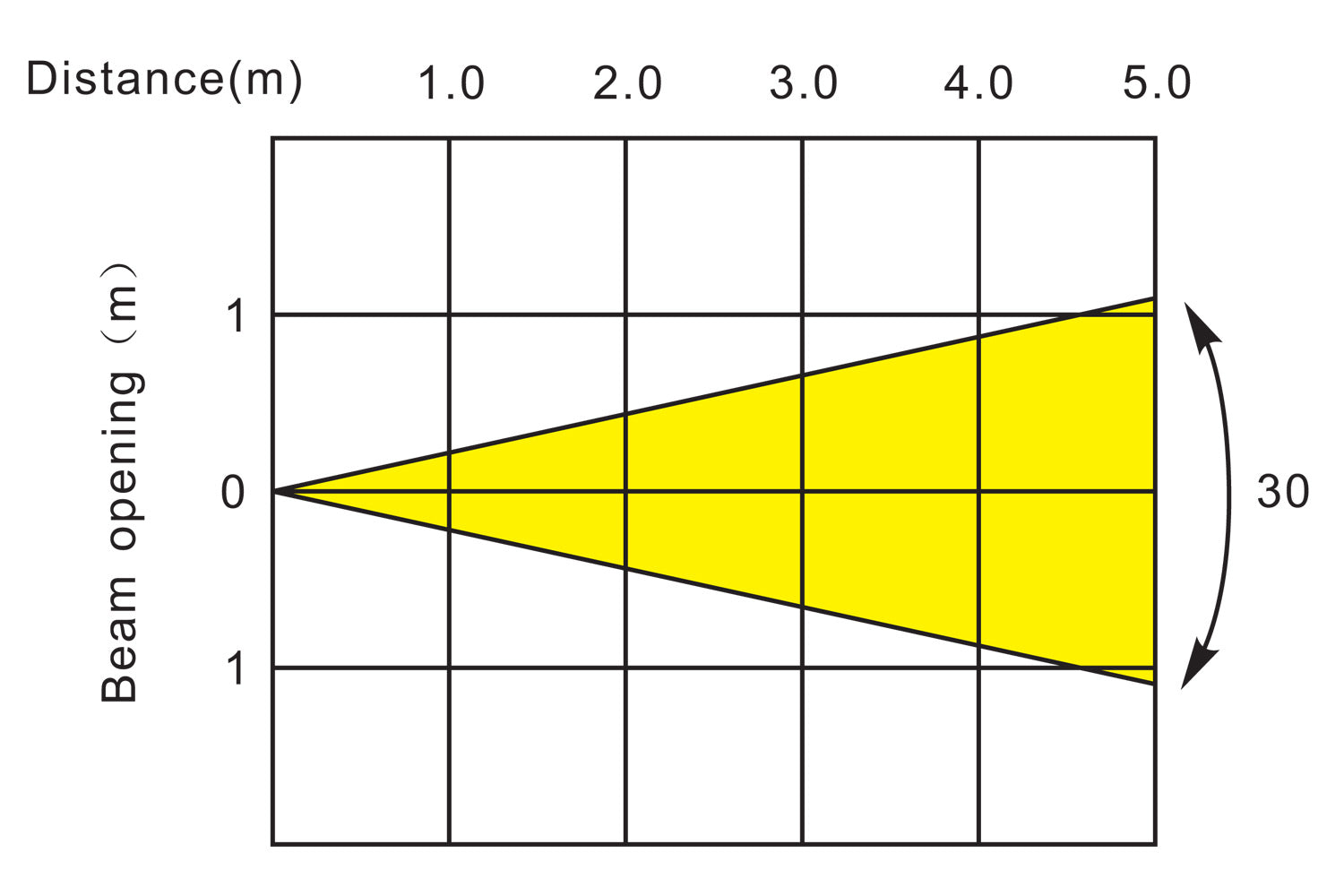

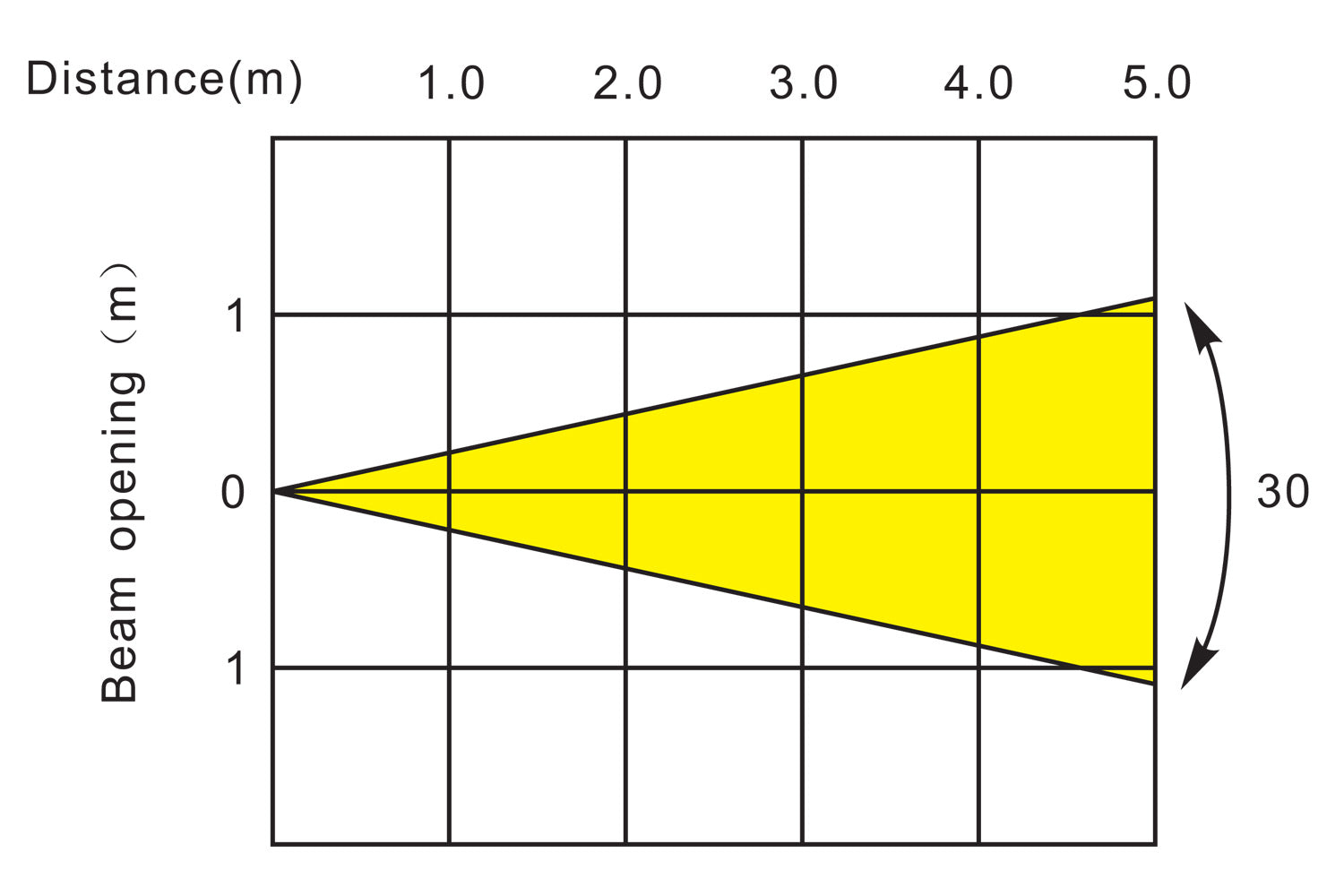

• Beam Angle: 30° (optional: 55°)

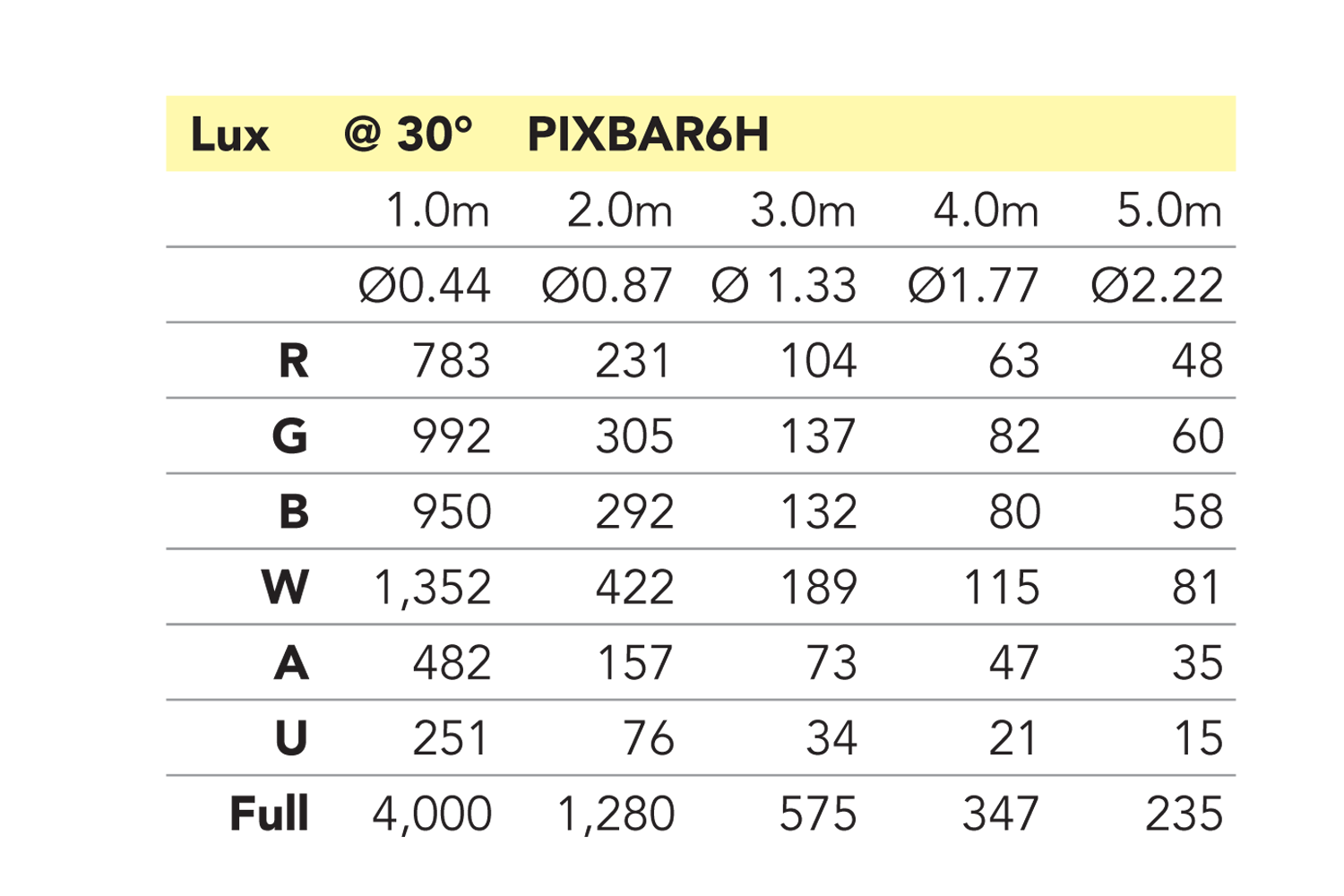

• Output: 1,280 lux @ 2m RGBWAU full on


• PWM: 12,000Hz


• LED Life: 50,000 hours

Effects

• Dimming: 4 Dimming Curves


• Strobe: 1~30Hz

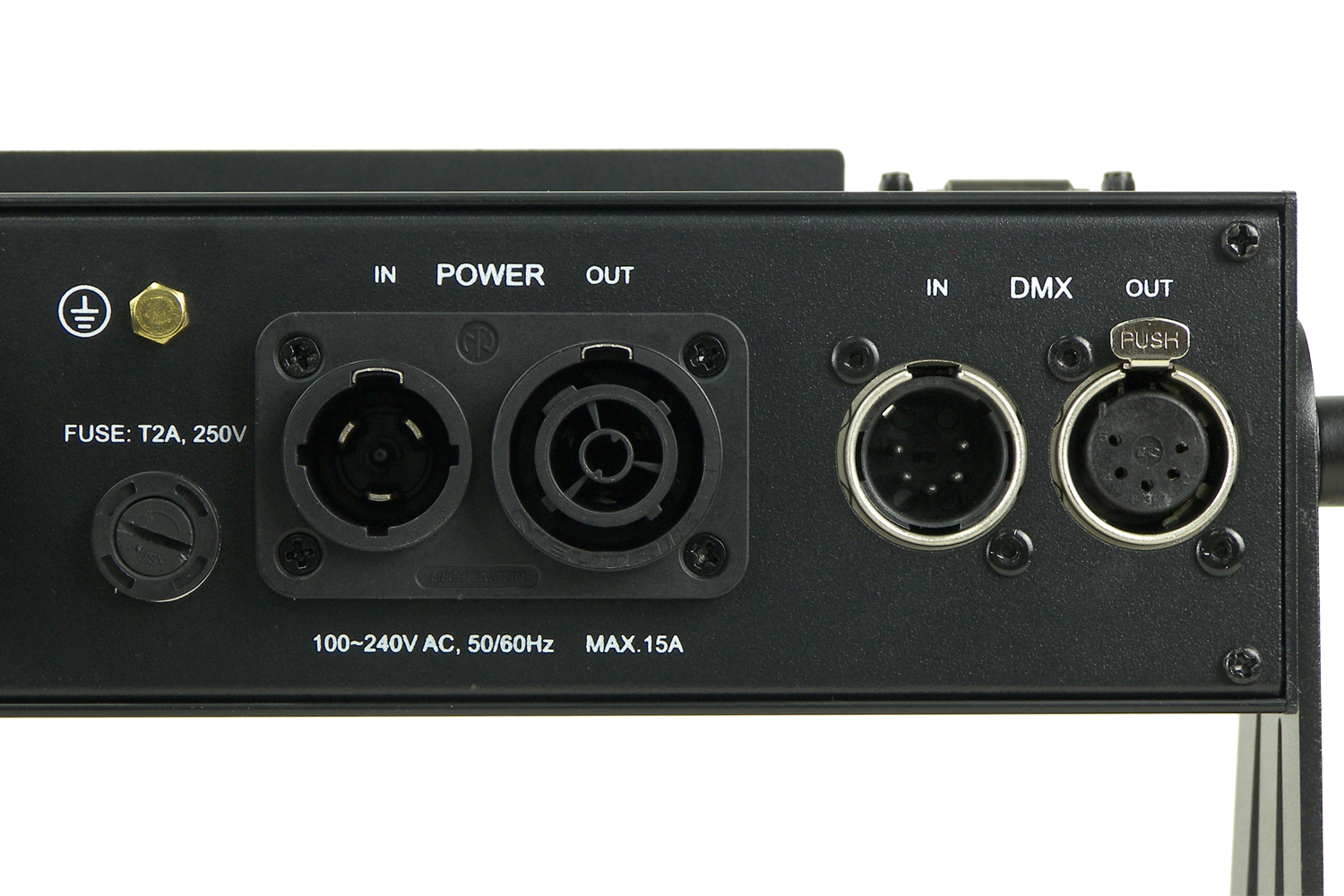

Power

• Input Voltages: 100~240V AC, 50/60Hz, 60W

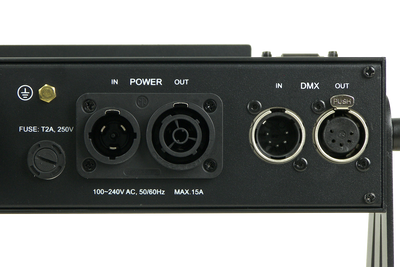

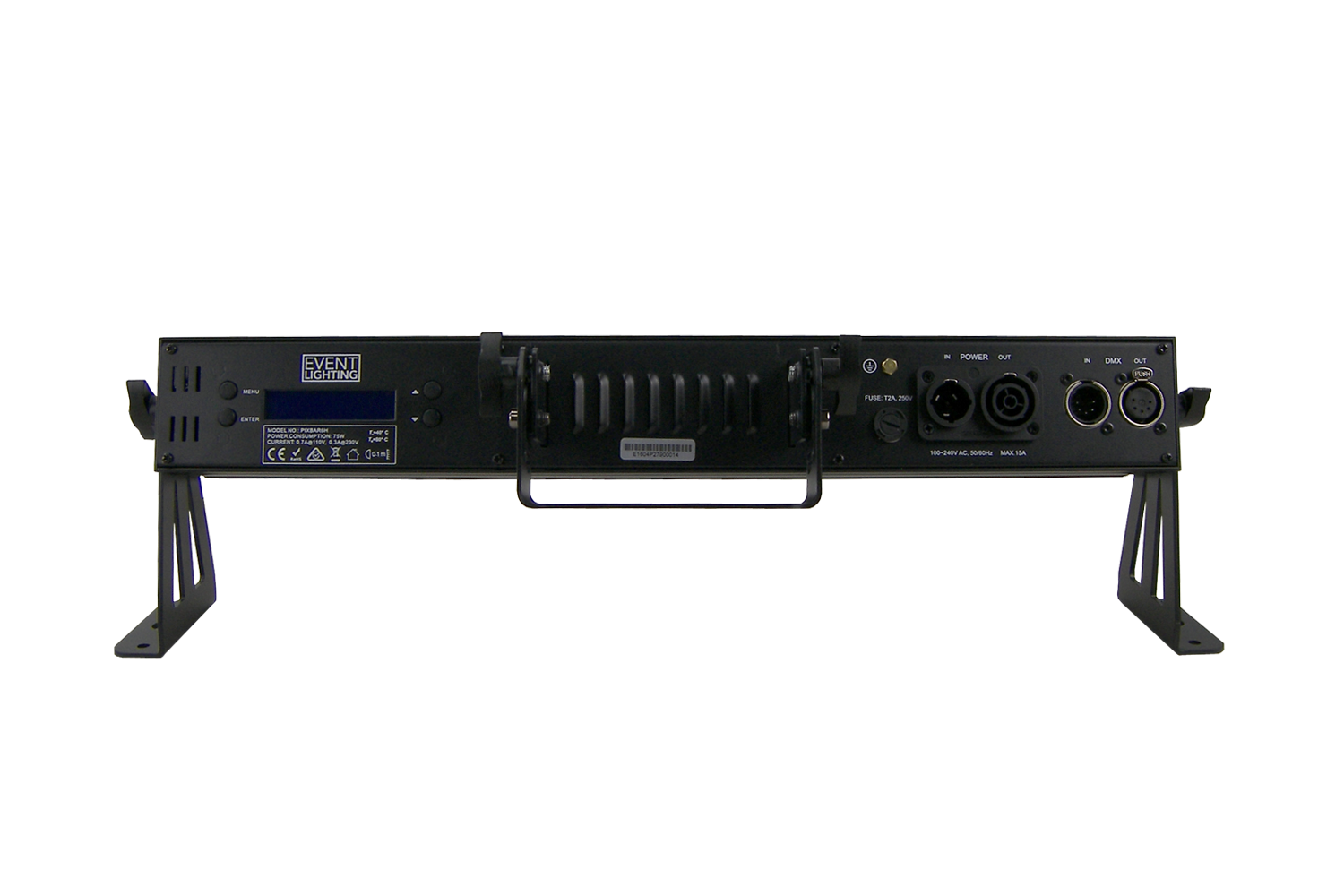

• Power Connection: True1 in/out

Control

• Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase, RDM*

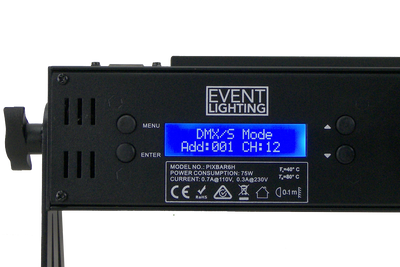

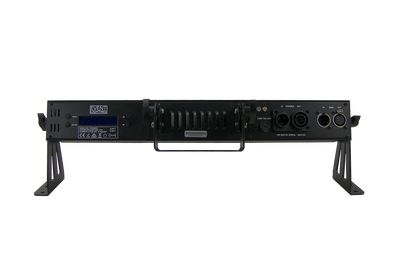

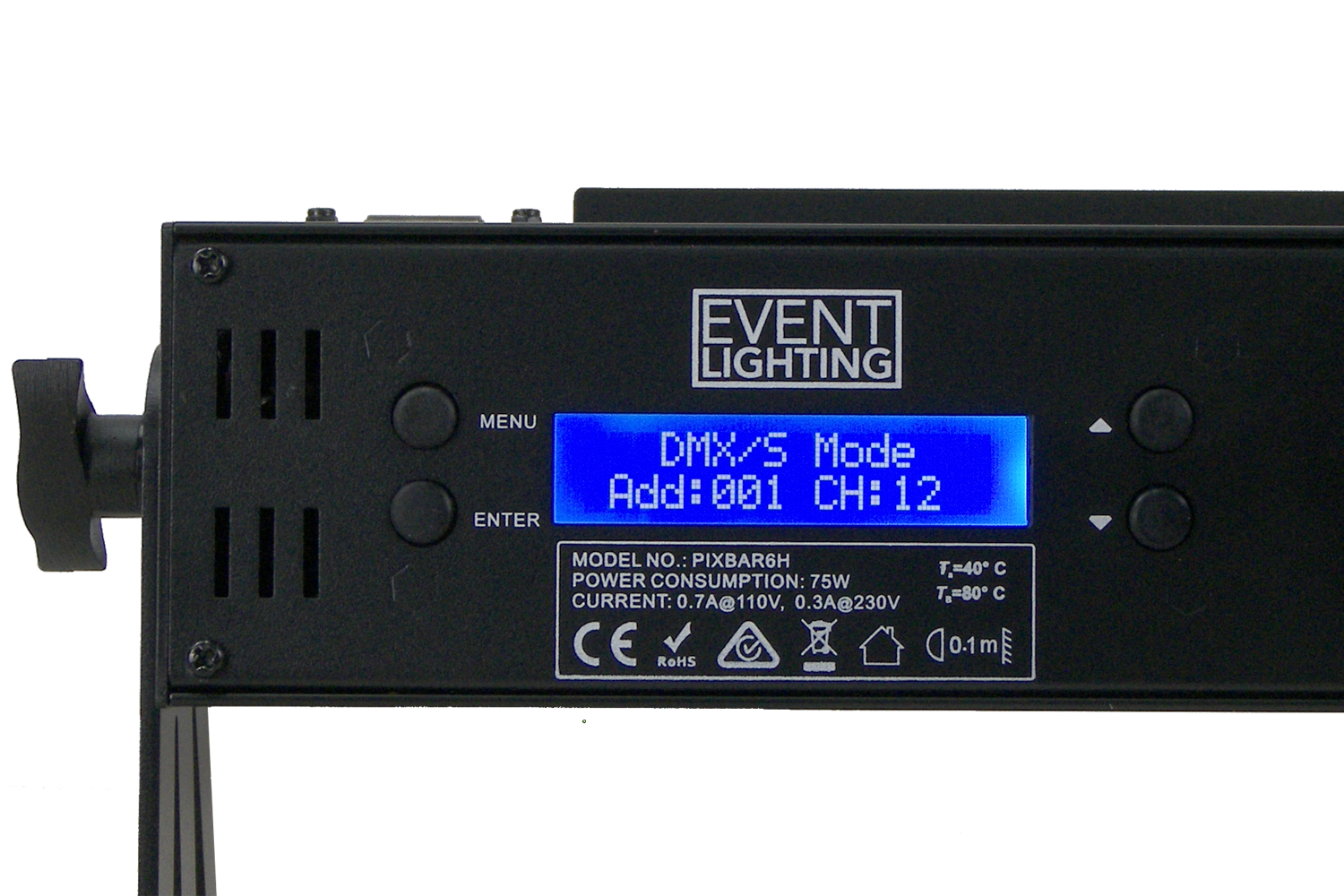

• Display: 4-button LCD control panel


• Control Protocol: DMX512


• DMX Channels: 3 / 4W / 4A / 6 / 8 / 12 / 14* / 36 / 38


• Control Interface: 5-pin XLR in / out


• Software Upgrade via DMX: Yes

Housing

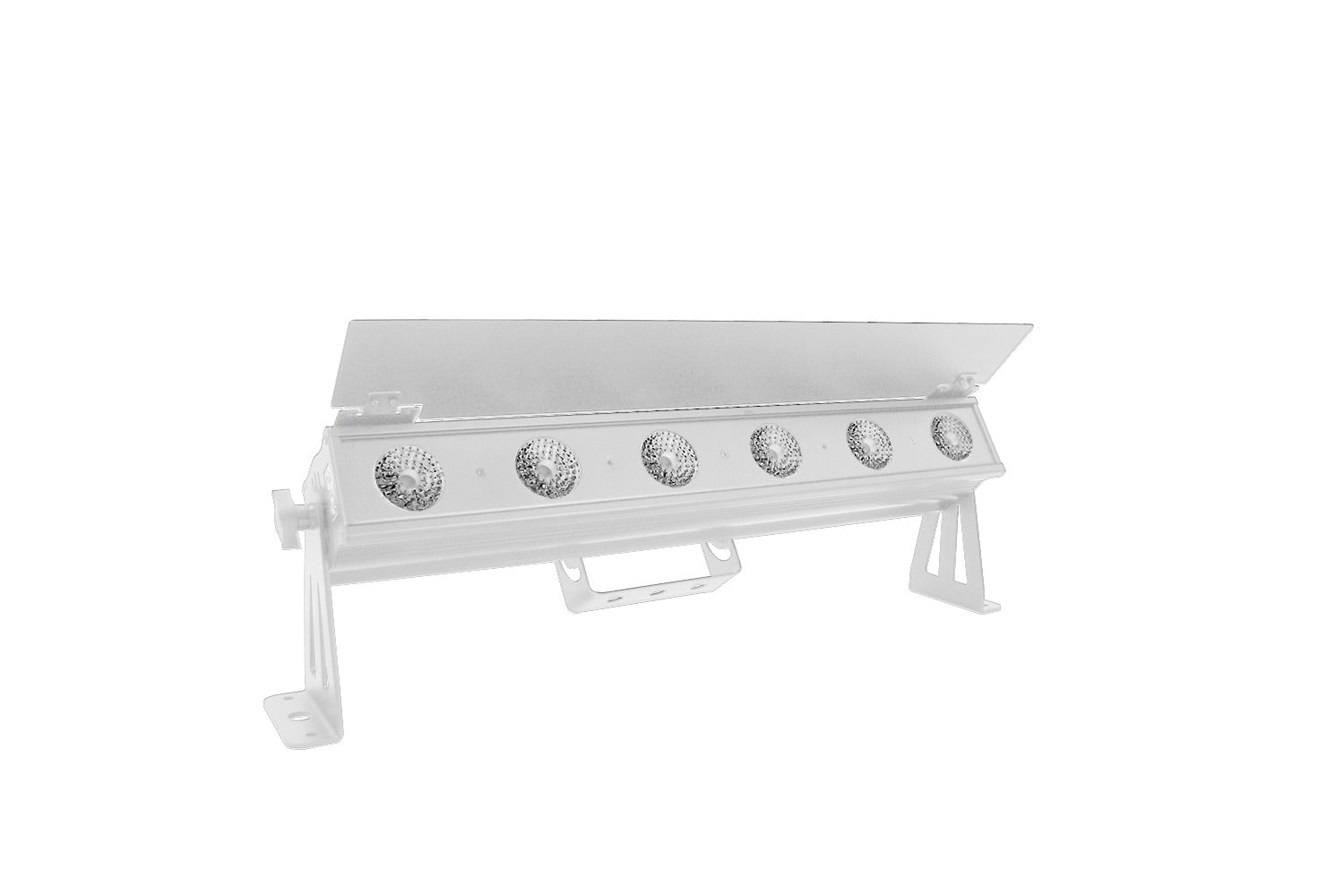

• Housing Materials: Aluminium, matte white finish

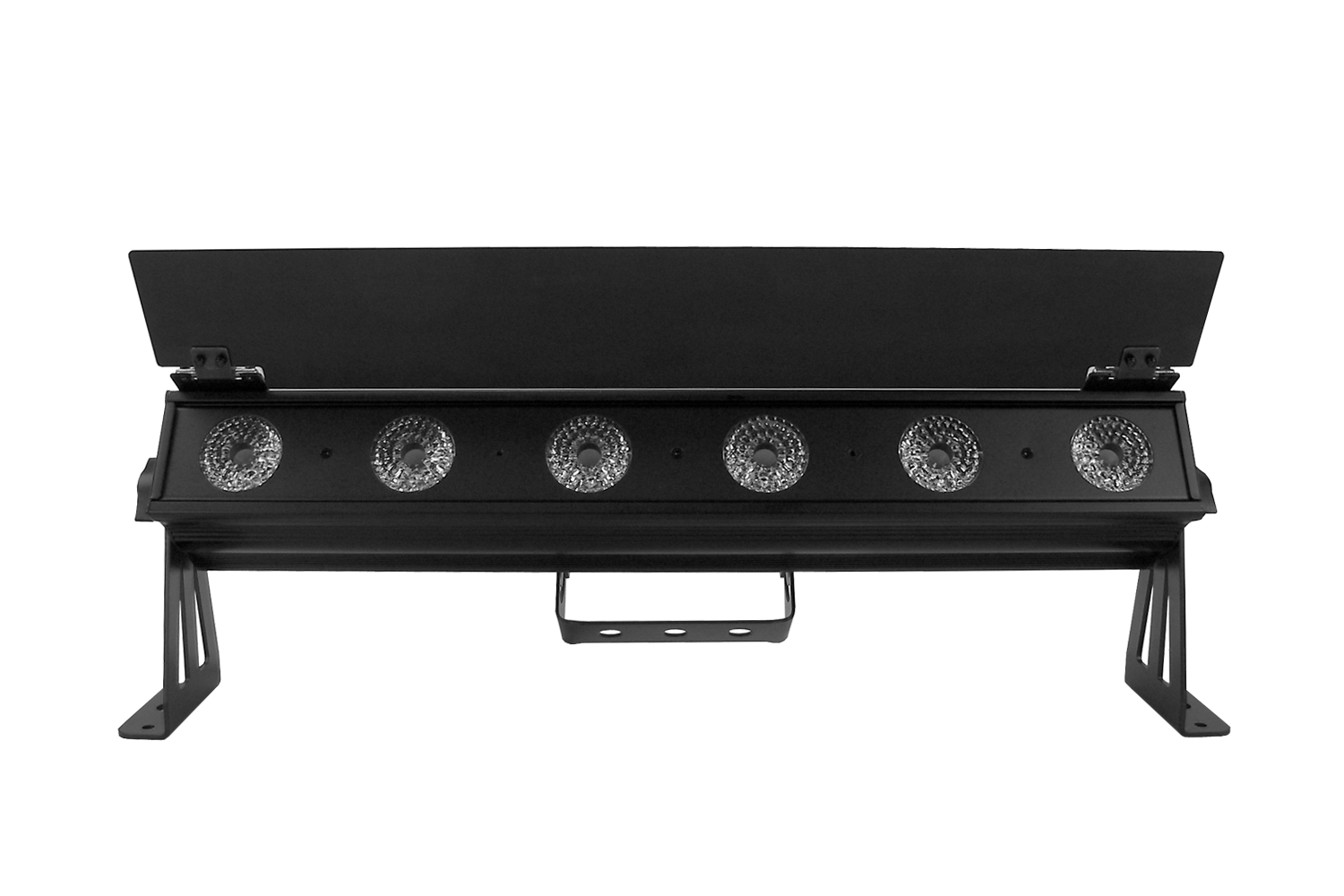

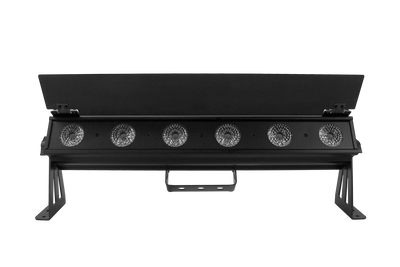

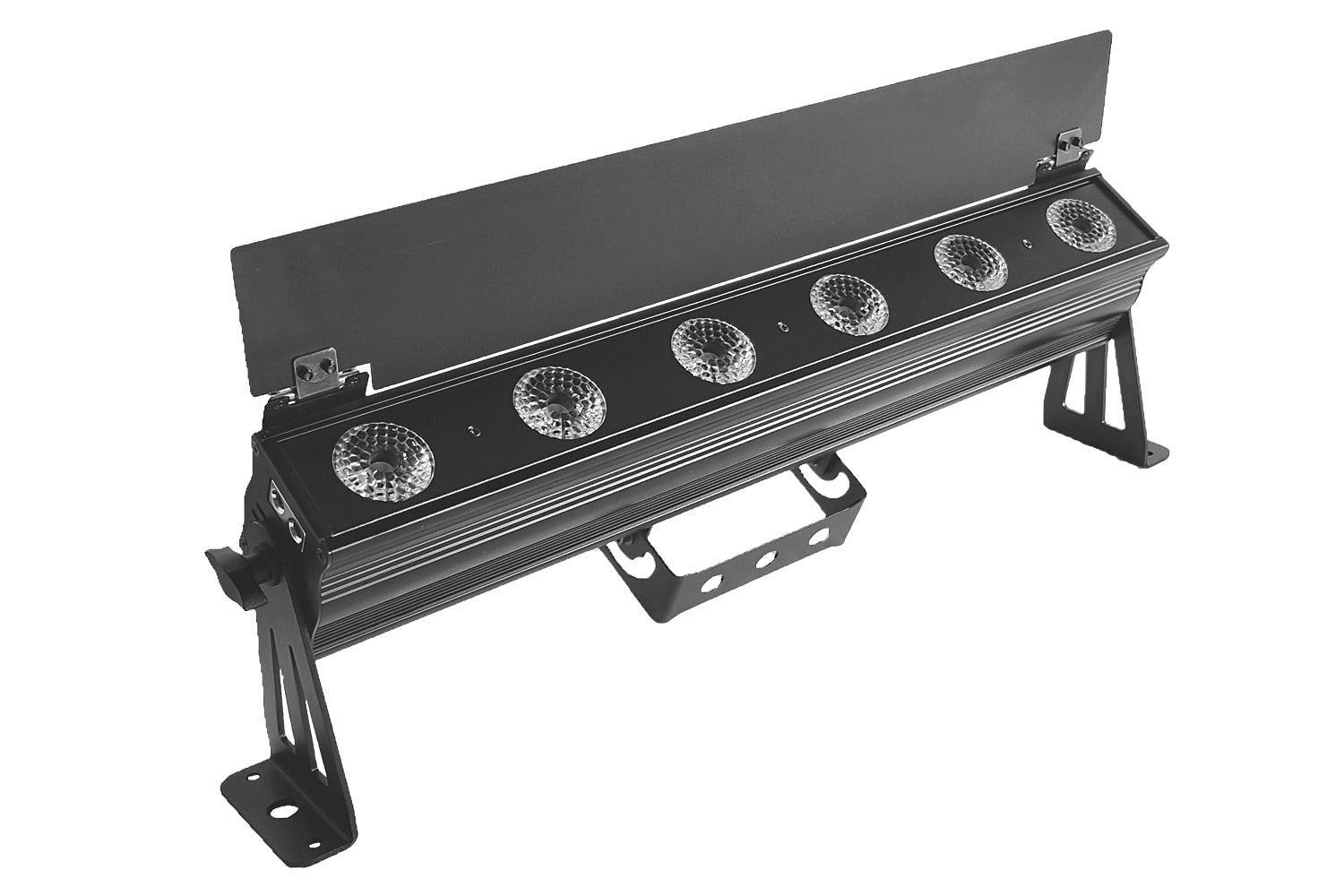

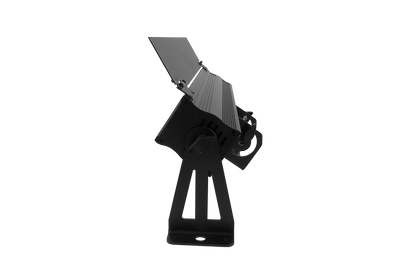

• Barndoor: included


• Frost filter: included


• Cooling: Fanless Cooling

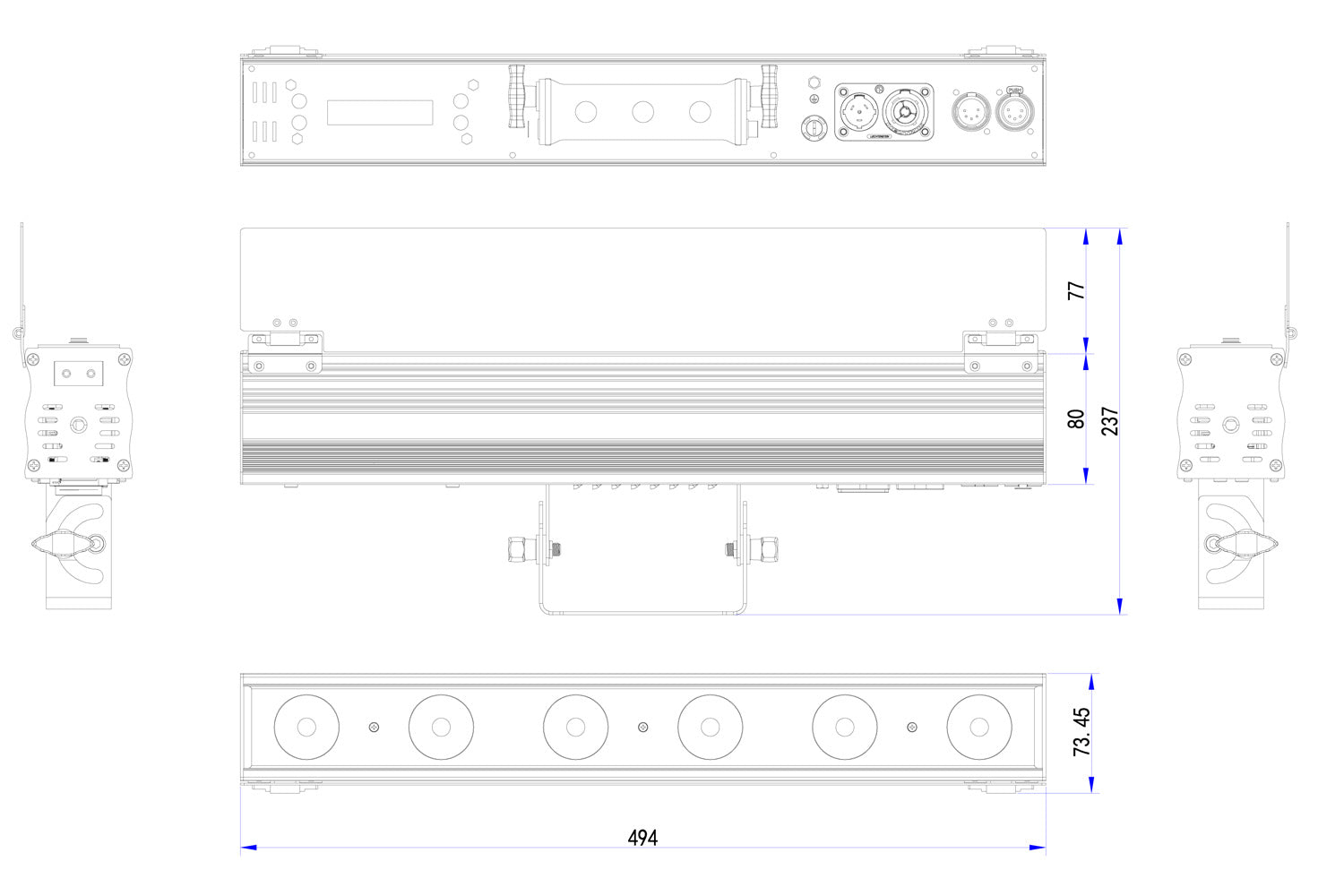

• Dimension: 568 x 165 x 80mm


• Net Weight: 2.6kg

MISC

• Road case: PIXBAR6CASEWC

*14 channel mode and RDM capabilities were added in a software update in October 2025. If you are interested in these features, please contact your supplier and request the software update.

Download product datasheet

Download user manual

Tap to unmute

Event Lighting - Introduction to the PIXBAR6HEvent Lighting

Event Lighting960 subscribers

Watch on

Warranty: 3 years
