Features:

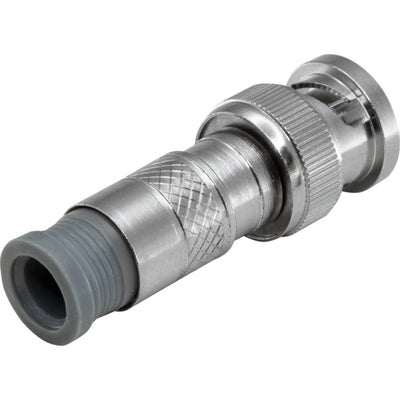

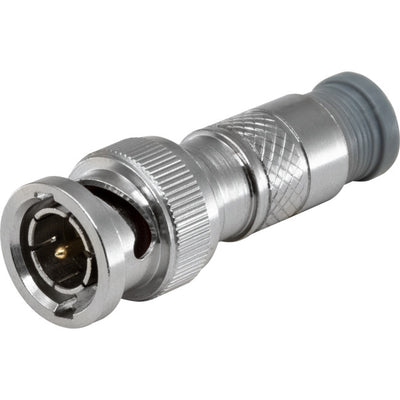

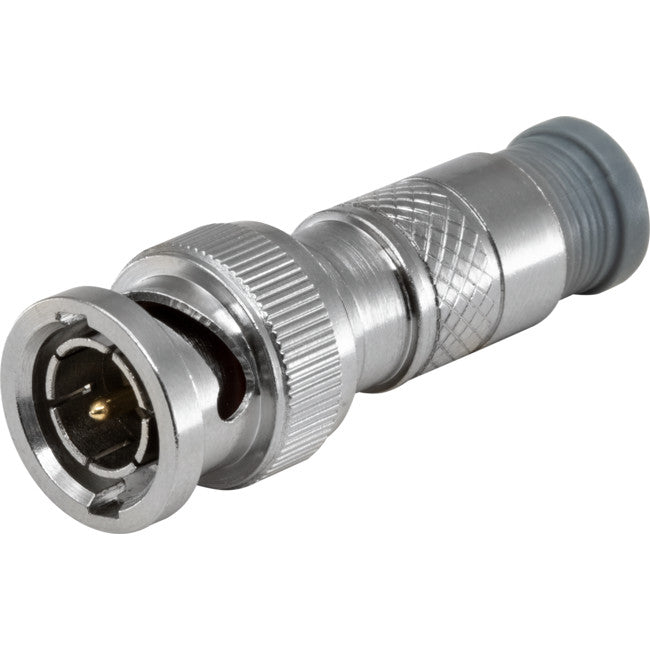

- Connector Type: BNC Compression Connector
- Frequency Range: 0.3-3000MHZ
- Cable Type: RG59
- Impedance: 75ohm
- Shielding Effectiveness: 110db@1 GHz
Structure Chart
Materials
- Hull Material: Brass
- Plating Material: Nikel
- Copper Rate min: 58%
- Plating Thickness: 1.8µ
Mechanic specifications
- Corrosion Resistance: 1000hours
- Cable Assembly Force: < 20lbs
- Tensile Strength: > 40lbs
- Breaking Torque: > 30 in-lbs
- Operating Temperature: -40°C to 60°C
Return Loss:
- 0.3 - 500 MHz: - 42.2dB
- 500 - 860 MHz : - 40.1dB
- 860 - 1000 MHz: - 37.8dB
- 1000 - 3000 MHz : >- 30dB
Insertion Loss
- 0.3 - 500 MHz: - 0.1dB
- 500 - 3000 MHz: < - 0.3 dB
