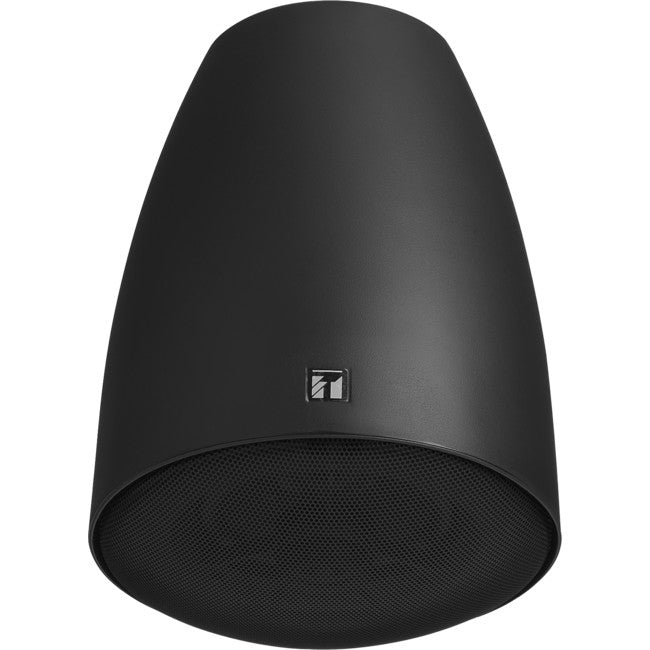

The PE-304 are HIPS resin bass-reflex enclosure 5" (12cm) conetype pendant speakers intended for ceiling suspension installation. The PE-304 also includes abalanced dome tweeter.
They have an outstandingly stylish design that is inspired by the finest lighting fixtures, allowing them to harmoniously blend in with lighting equipment.
They are ideally suited for such applications as BGM and announcements at high-ceiling venues such as airports, factories and shopping malls.
The speakers are easy to repaint, extending the range of design needs they can meet. A directly attached sturdy suspension cable is extendable up to 5 meters.
PE-304 is driven on a highand low-impedance(8?) line. Input impedance is adjustable with rotary switch on the upper side of the speaker
Enclosure: Bass-reflex type
Rated Input: 30W (100V , 70V line, 8?)
Rated Impedance: 100V line: 330? (30W), 500? (20W), 670? (15W) , 1k? (10W), 2k? (5W) 70V line: 170? (30W), 250? (20W), 330? (15W), 500? (10W), 1 k? (5W) 8? (30W)
Sensitivity (1W, 1m): 91dB (500 ? 5,000Hz, pink noise)
Frequency Response: 70 ? 20,000Hz (peak ?20dB)
Speaker Component: 5" (12cm) cone-type + balanced dome tweeter
Speaker Cord: 2-core cabtyre cord 5m (16.4 ft)
Applicable Cable: 600V vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: Ø0.8 ? Ø1.6mm (equivalent to AWG 20 ?14) 7-core twisted copper wire: 0.75 ? 1.25mm2 (equivalentto AWG 18 ? 16)
Connetion: Push-in connector (bridging terminal-2 branch type)
Finish: Enclosure: HIPS resin, off-white (RAL 9010 or equivalent colour)
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent colour), paint
Dimensions: Ø186 x 251(H) mm (Ø7.32" x 9.88") (unit only)
Weight: 2.1kg (4.63 lb) (unit only)
Accessory: Ceiling bracket x 1, Mounting hanger x 1, Ceiling cover x 1, Speaker mounting screw (4 x 16) x 4
