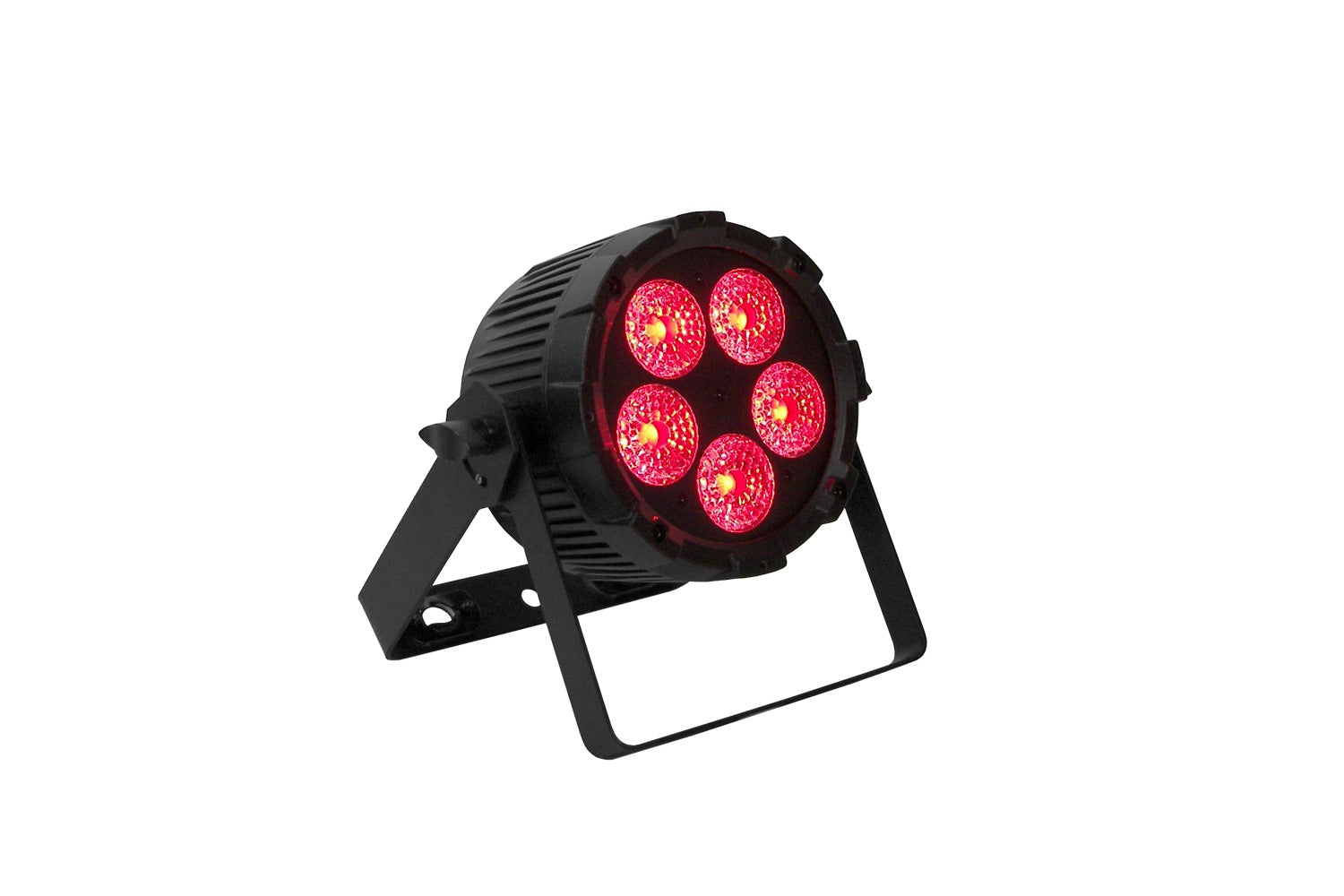

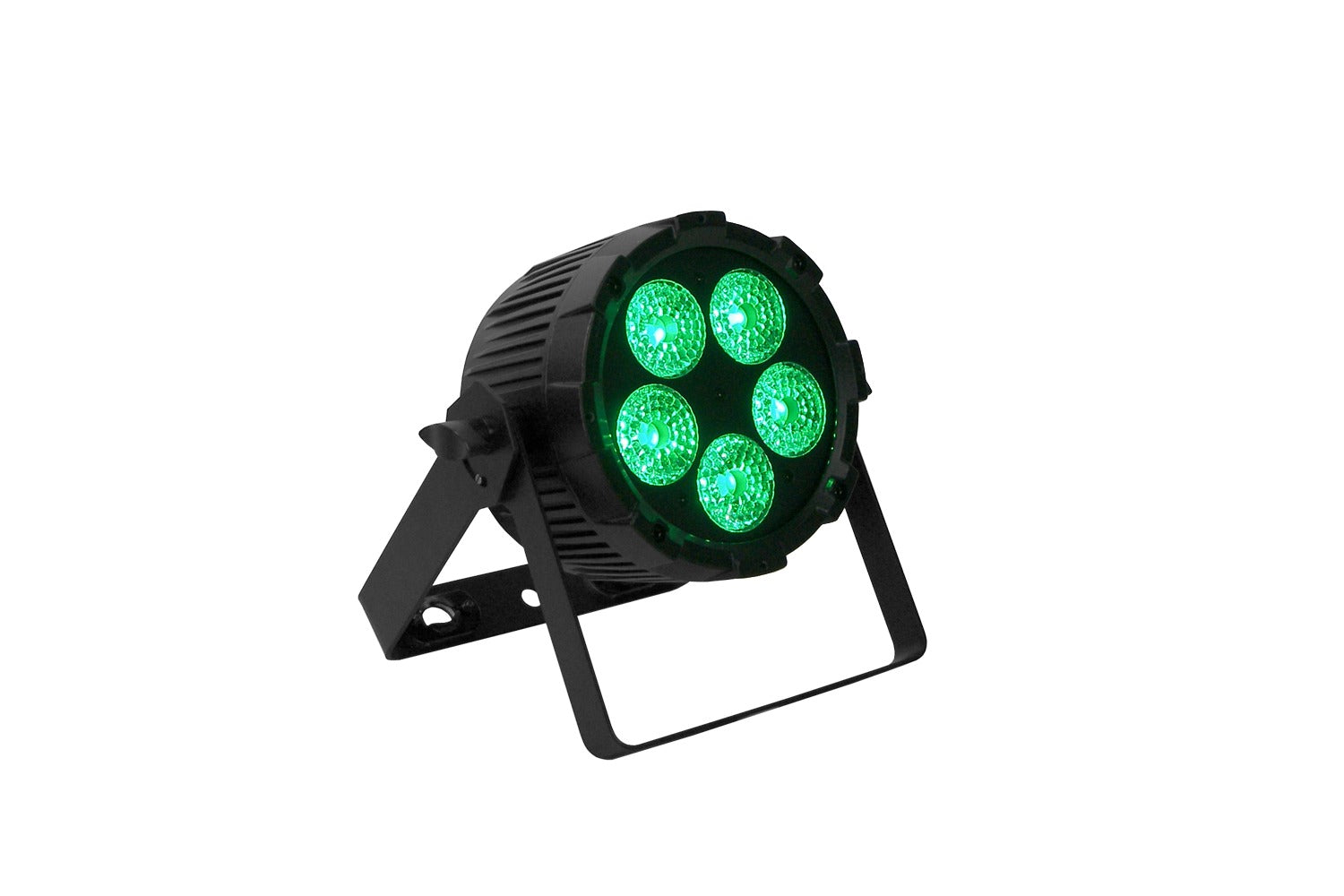

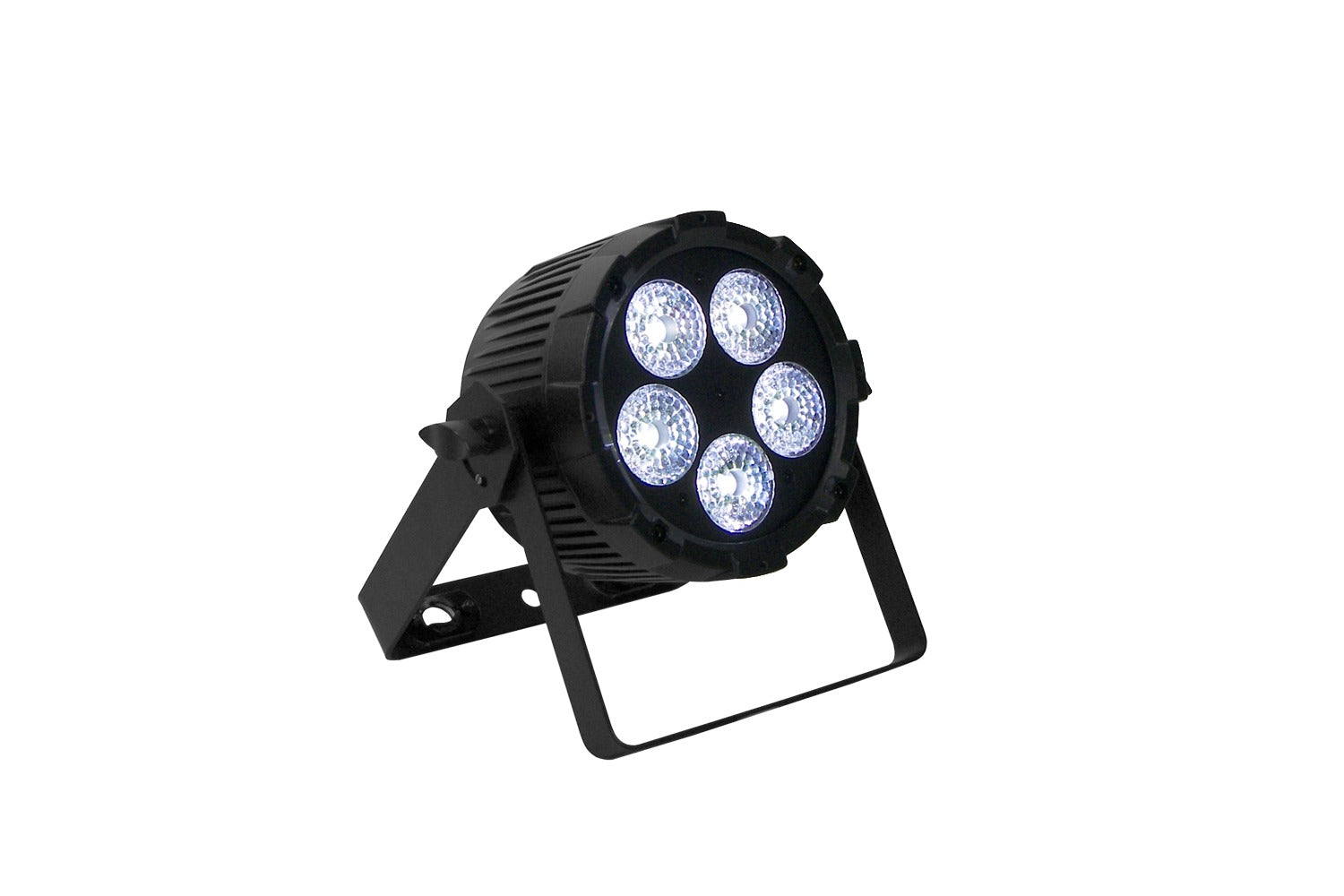

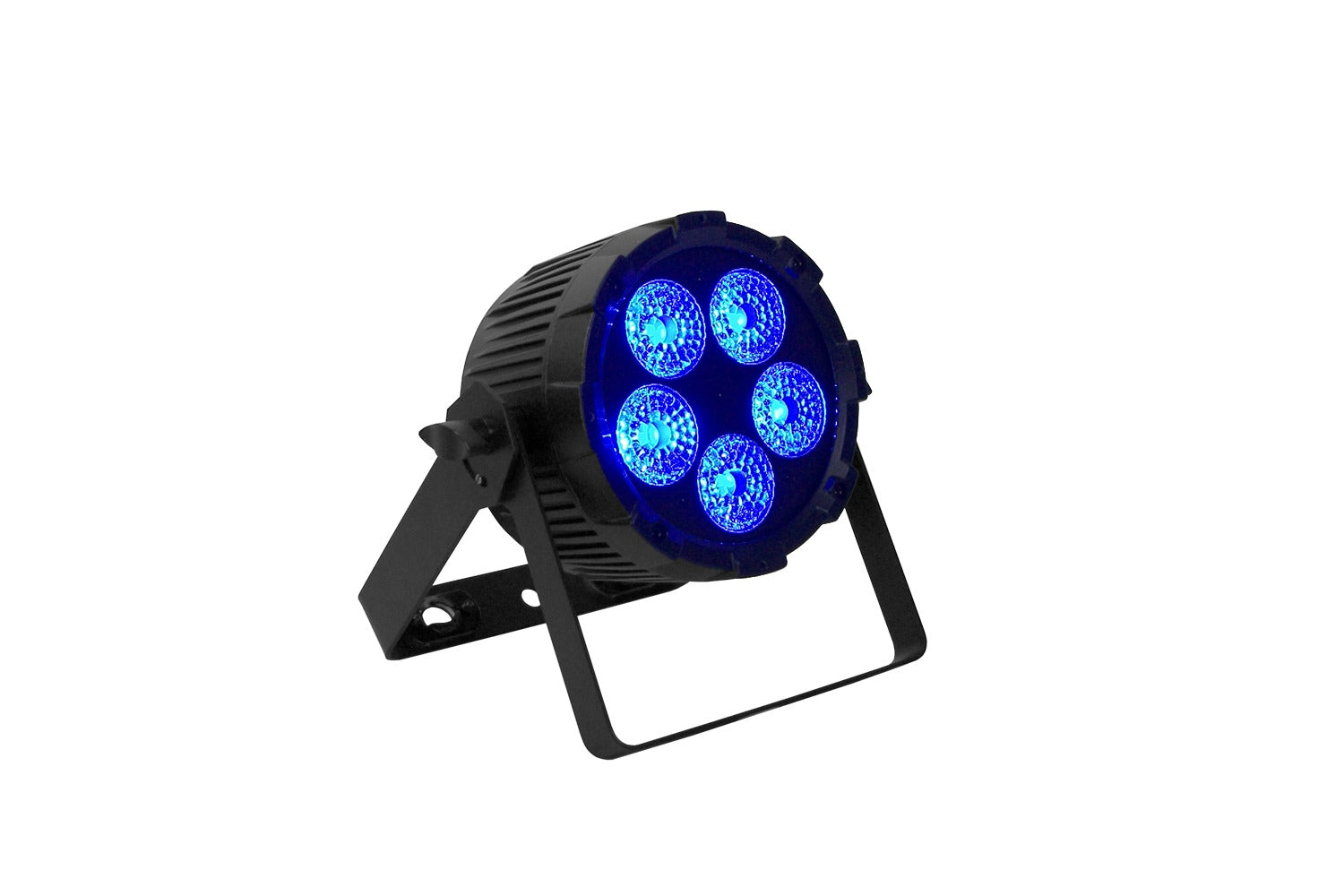

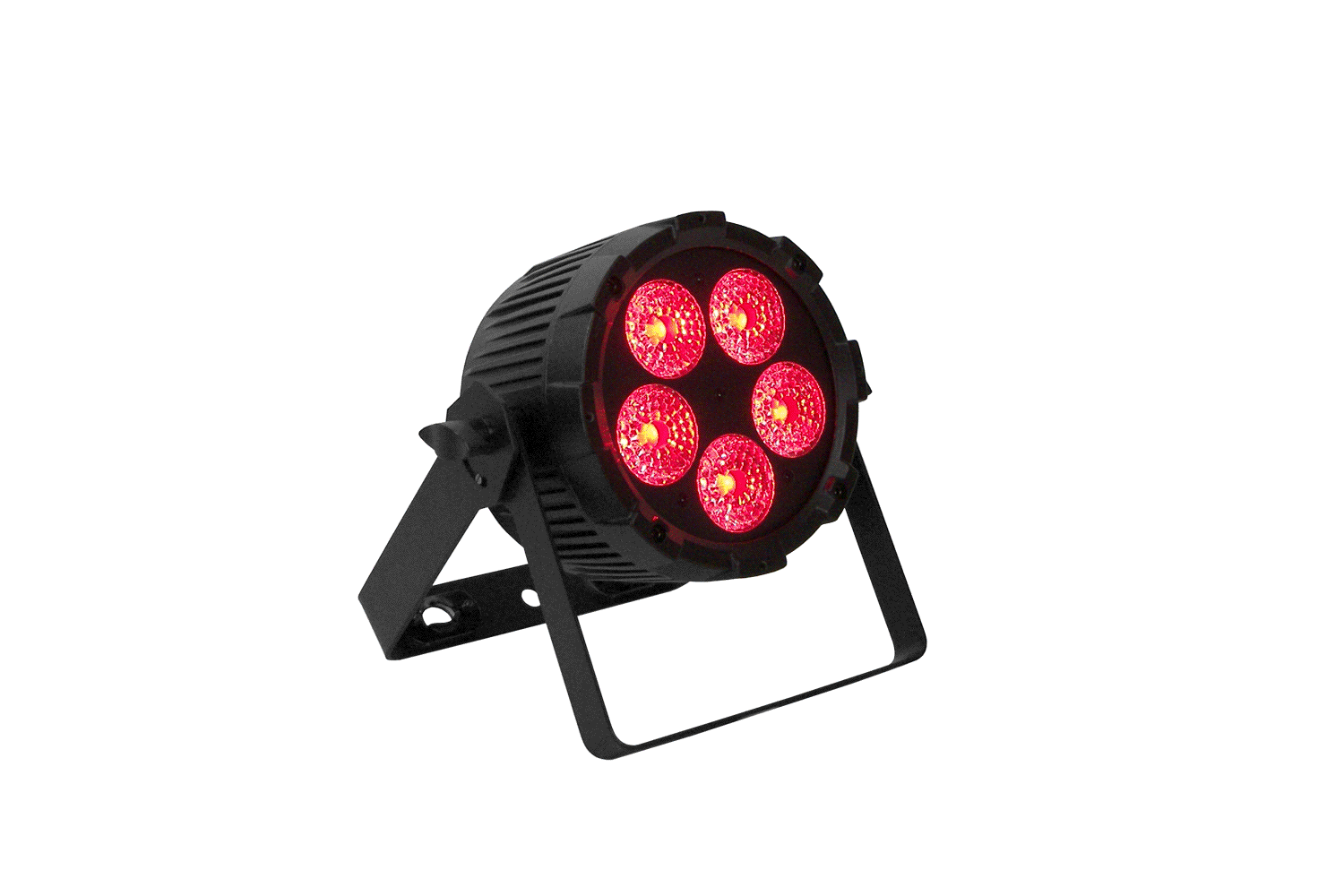

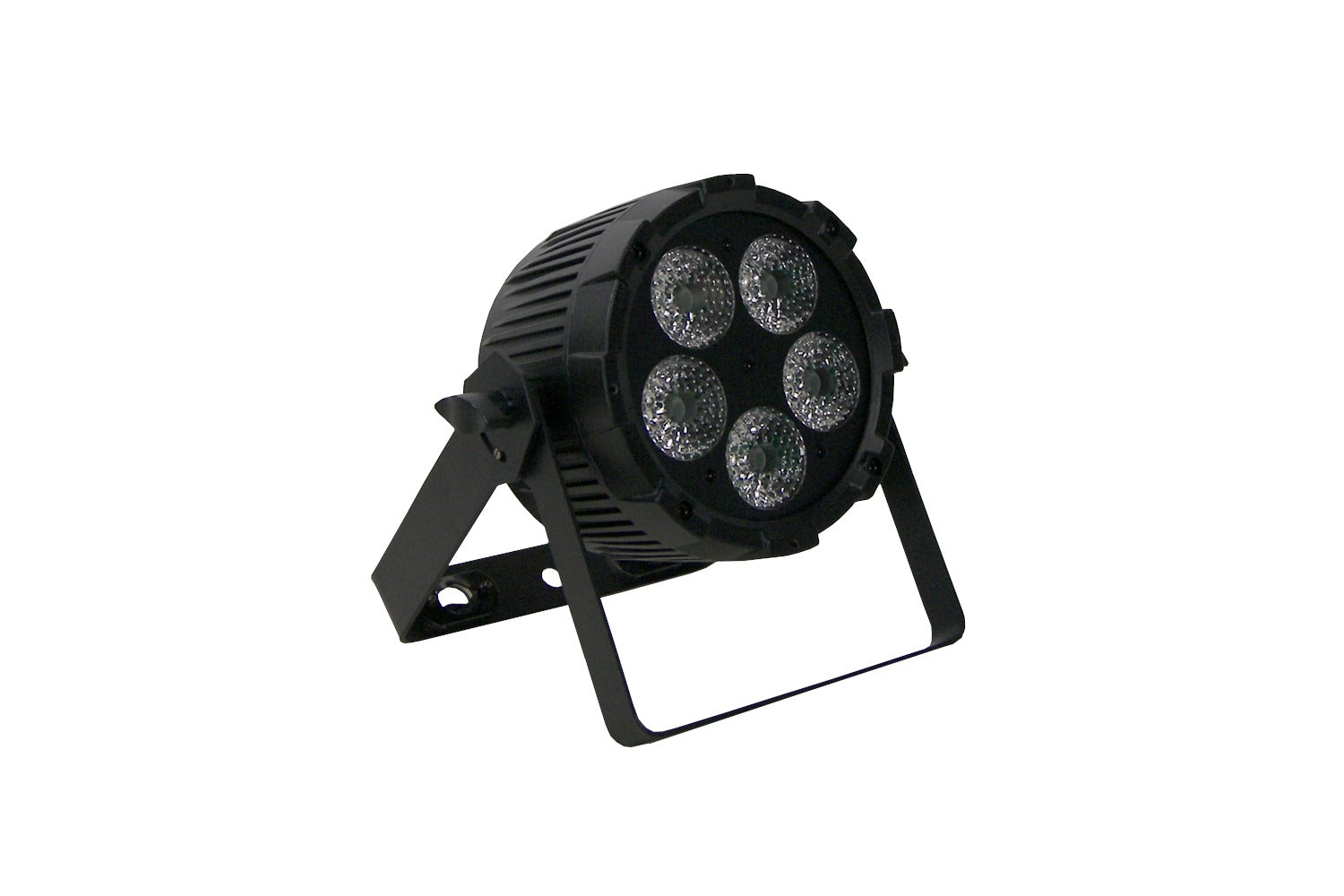

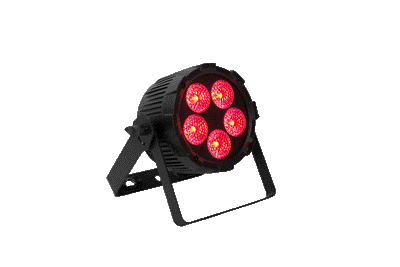

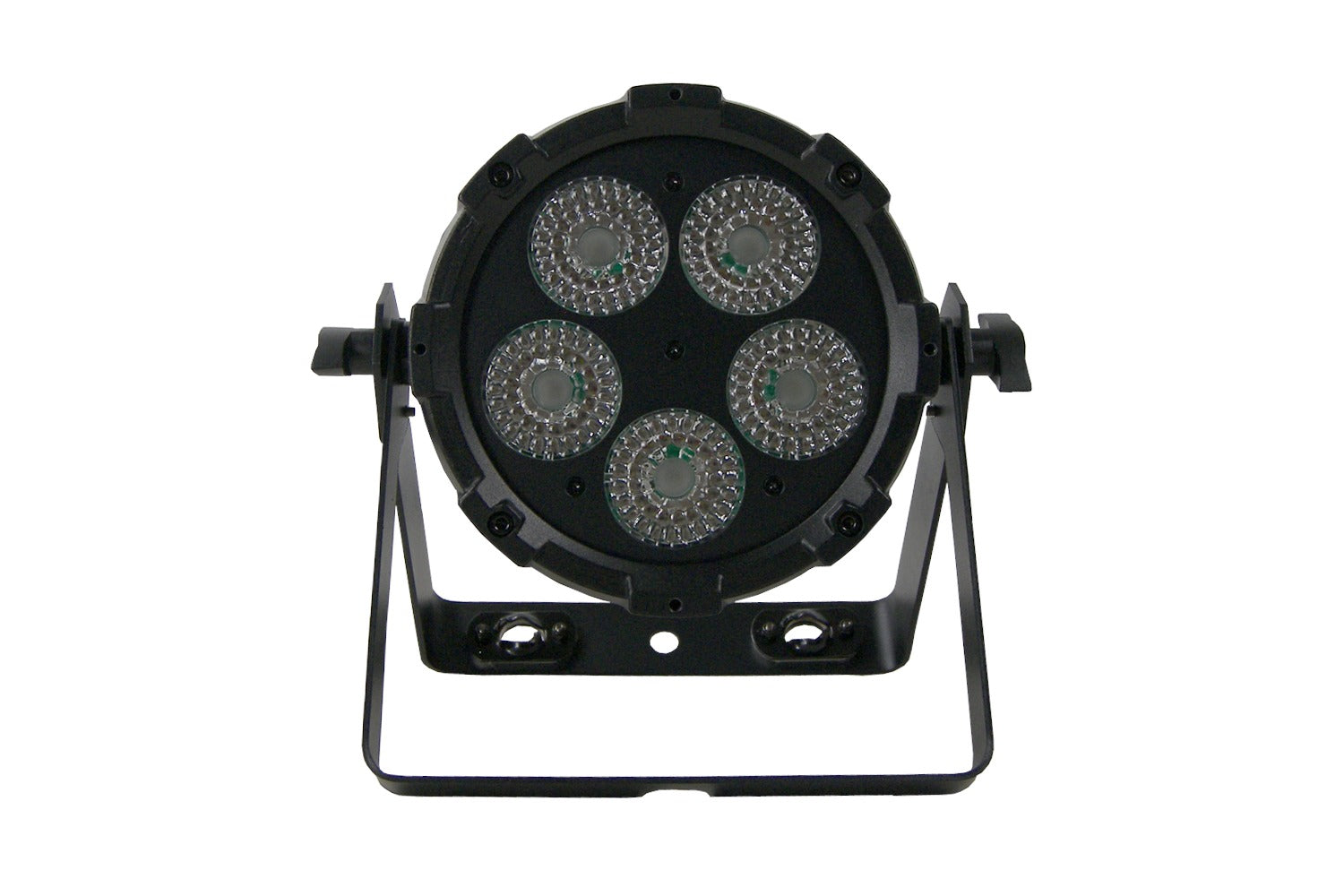

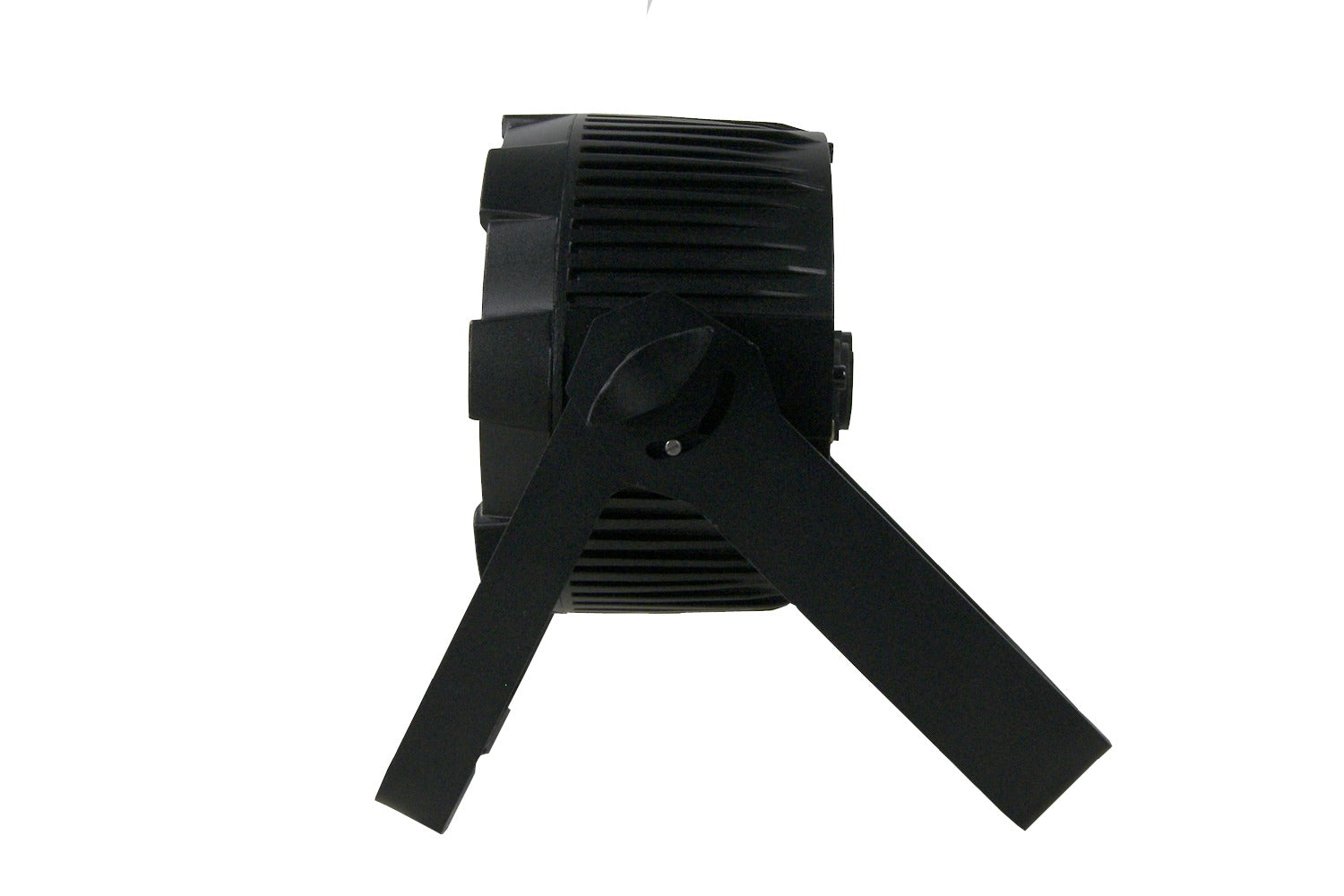

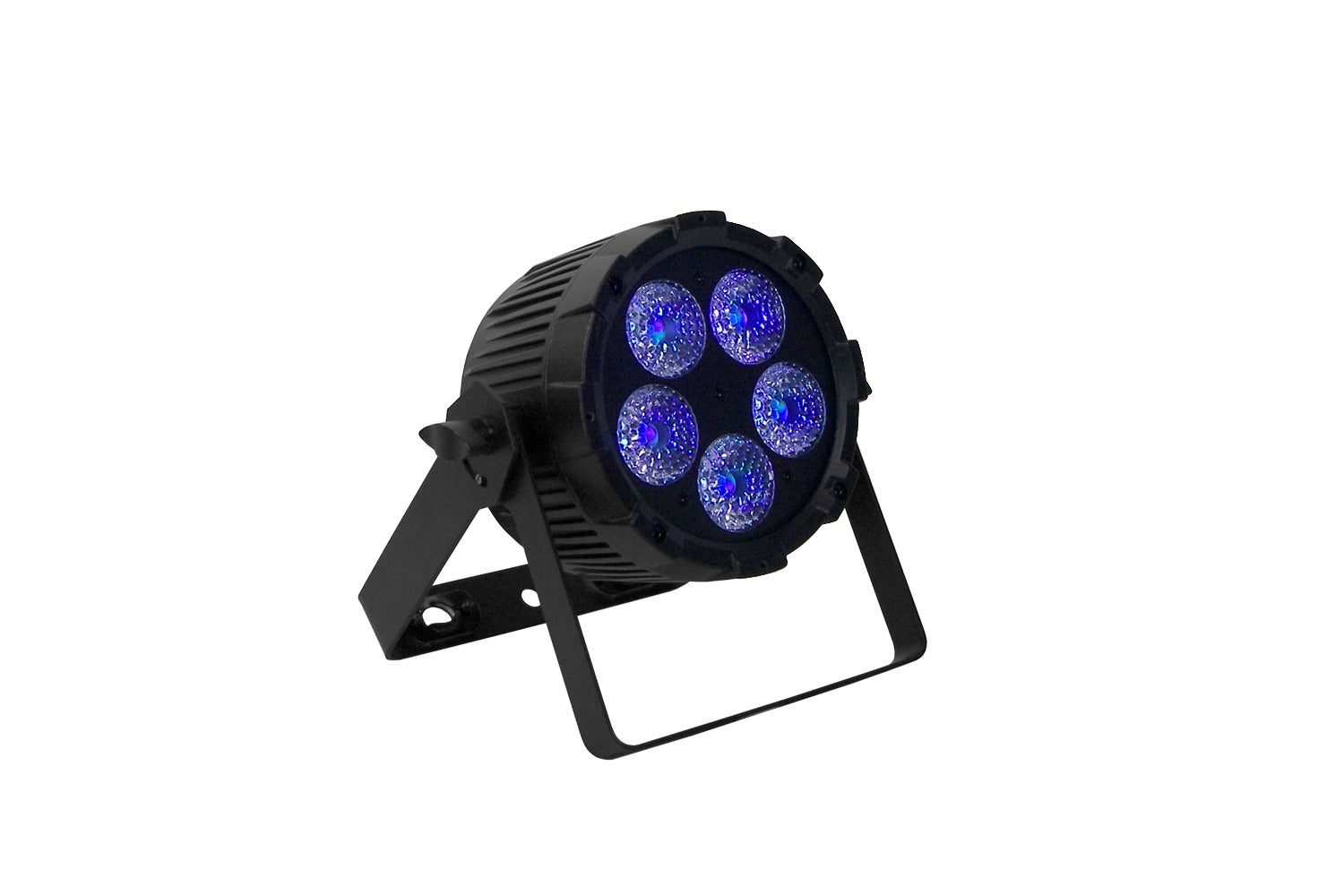

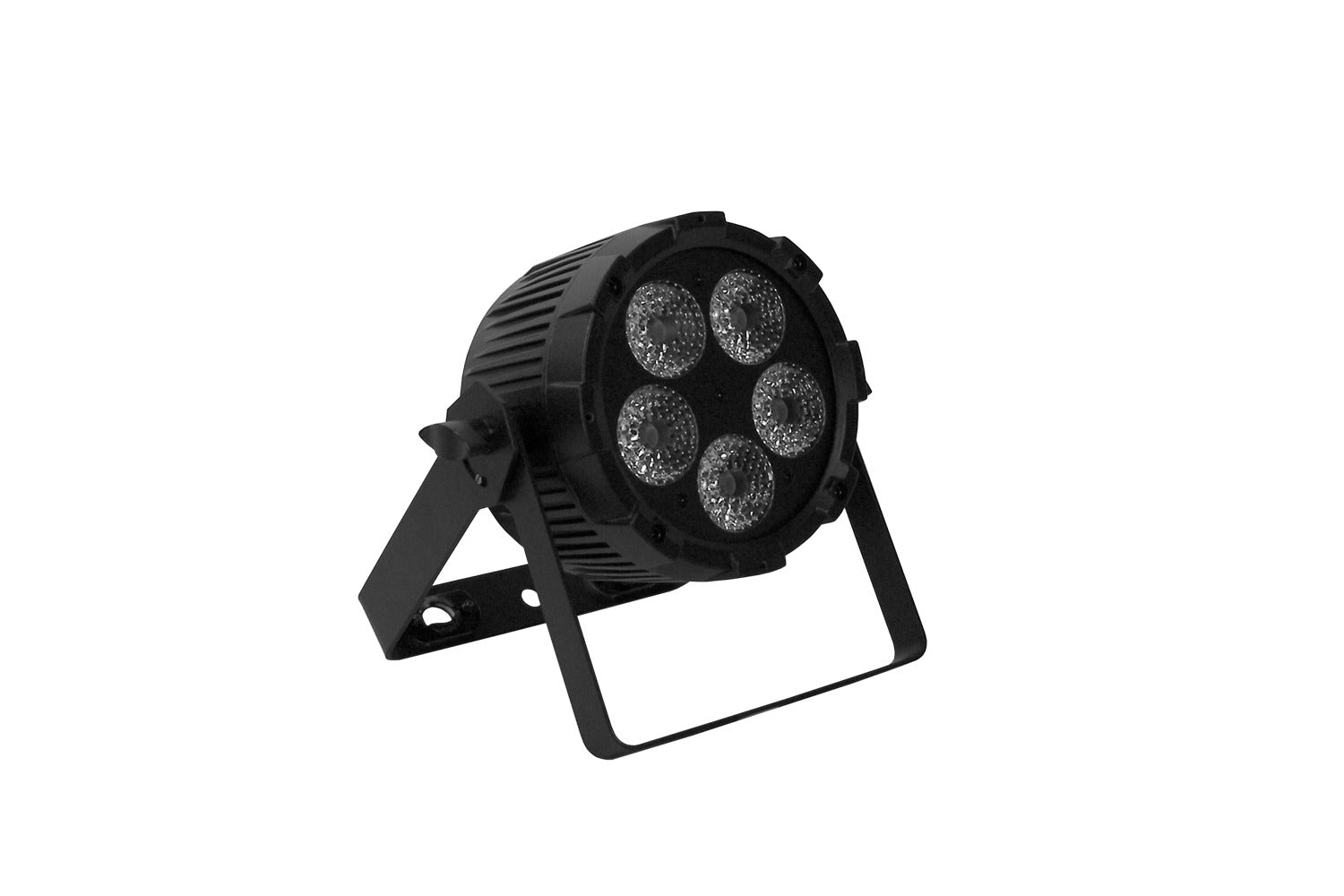

PAR5H - Indoor Pro Par with 5 x 12W RGBWAU LEDs

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.


The Event Lighting PAR5H is a compact and versatile LED Pro Parcan. With 5 x 12W RGBWA+UV 6 in 1 LEDs, it delivers stunning colour combinations to suit a variety of spaces. Enjoy customisable beam angles with options for 30˚, 40˚, 25˚ and 15˚, providing the perfect spread for any application. Experience 1,420 lux output at 2.0 meters, ensuring vibrant illumination in any setting. Boasting a robust lifespan of 50,000 hours, this fixture is built to last.


With 5 x 16-bit Dimming Curves and adjustable strobe settings ranging from 1 to 30Hz, you have full control over your lighting effects. Its flexible operational modes include DMX, auto run, sound active, and more, all easily navigated through the intuitive 4-button LCD control panel. Plus, with a sturdy die-cast aluminium housing and fanless cooling design, durability and reliability are guaranteed.

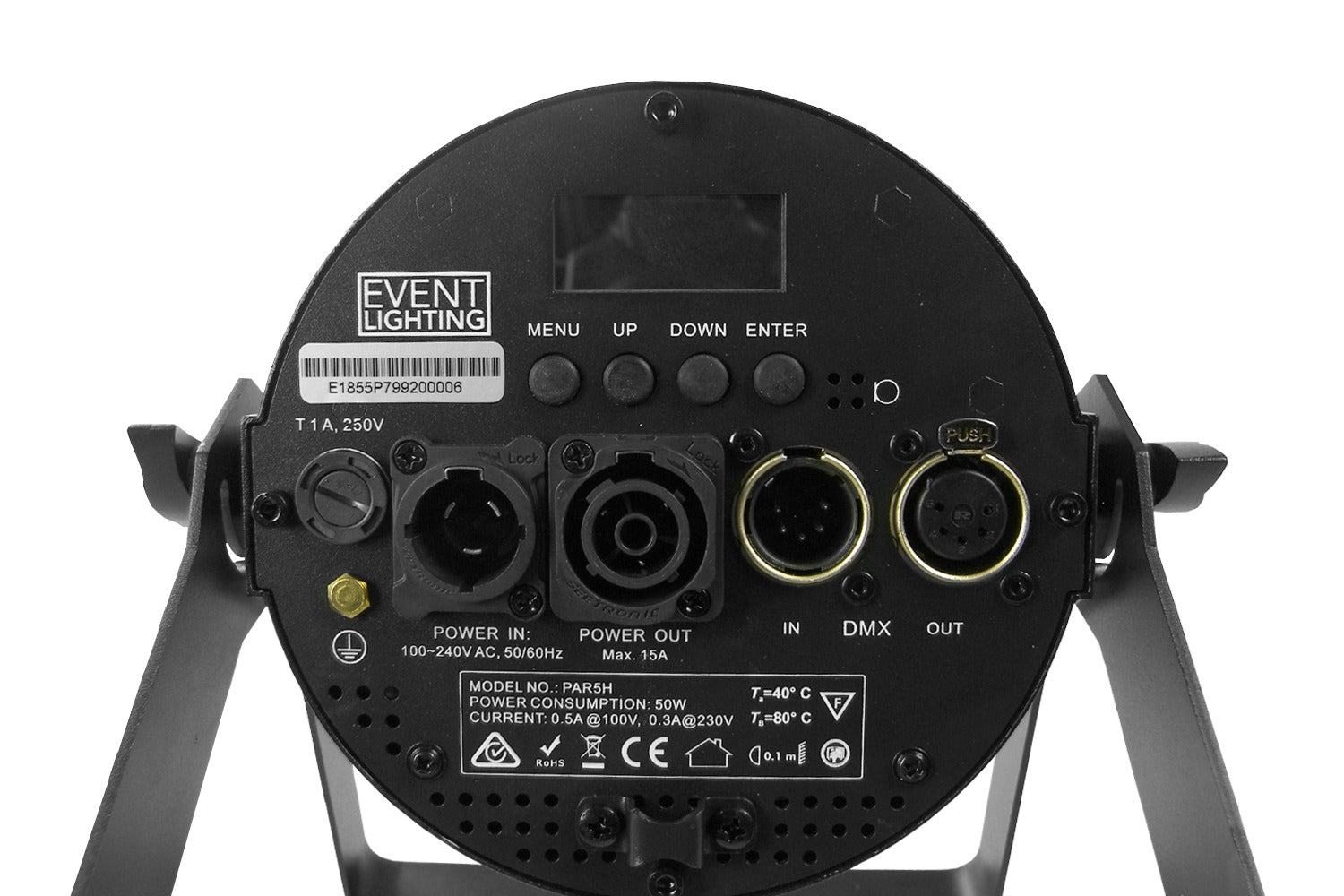

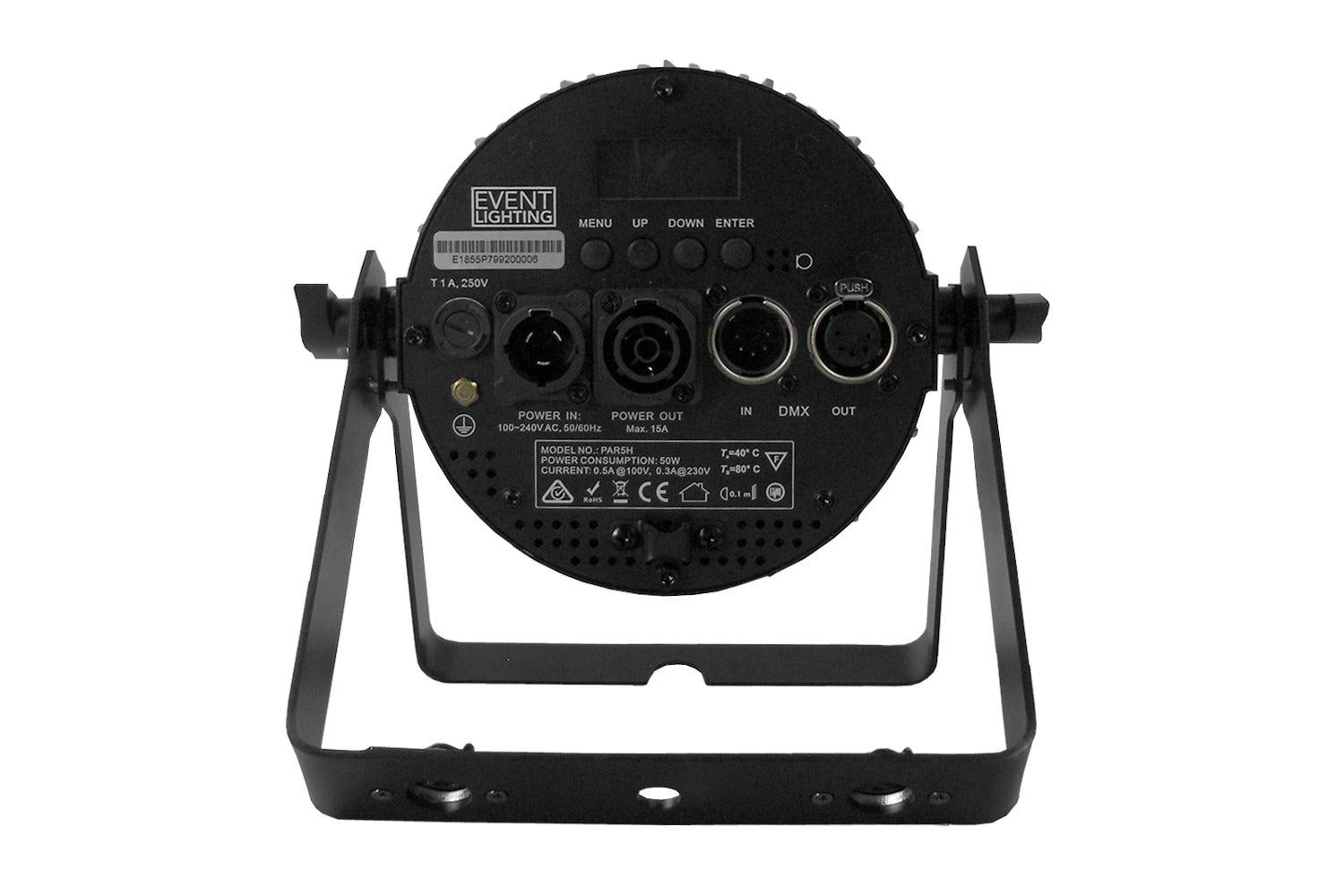

The PAR5H comes with True1 in/out, 5 pin DMX in/out and includes an omega bracket for quick and easy installation.





Specifications:


Photometrics



  • Light Source: 5 x 12W RGBWA+UV 6 in 1 LED

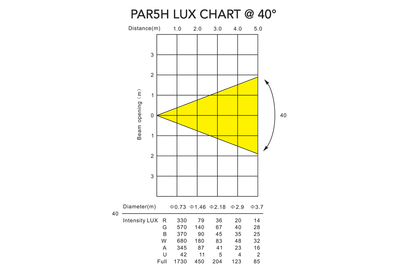

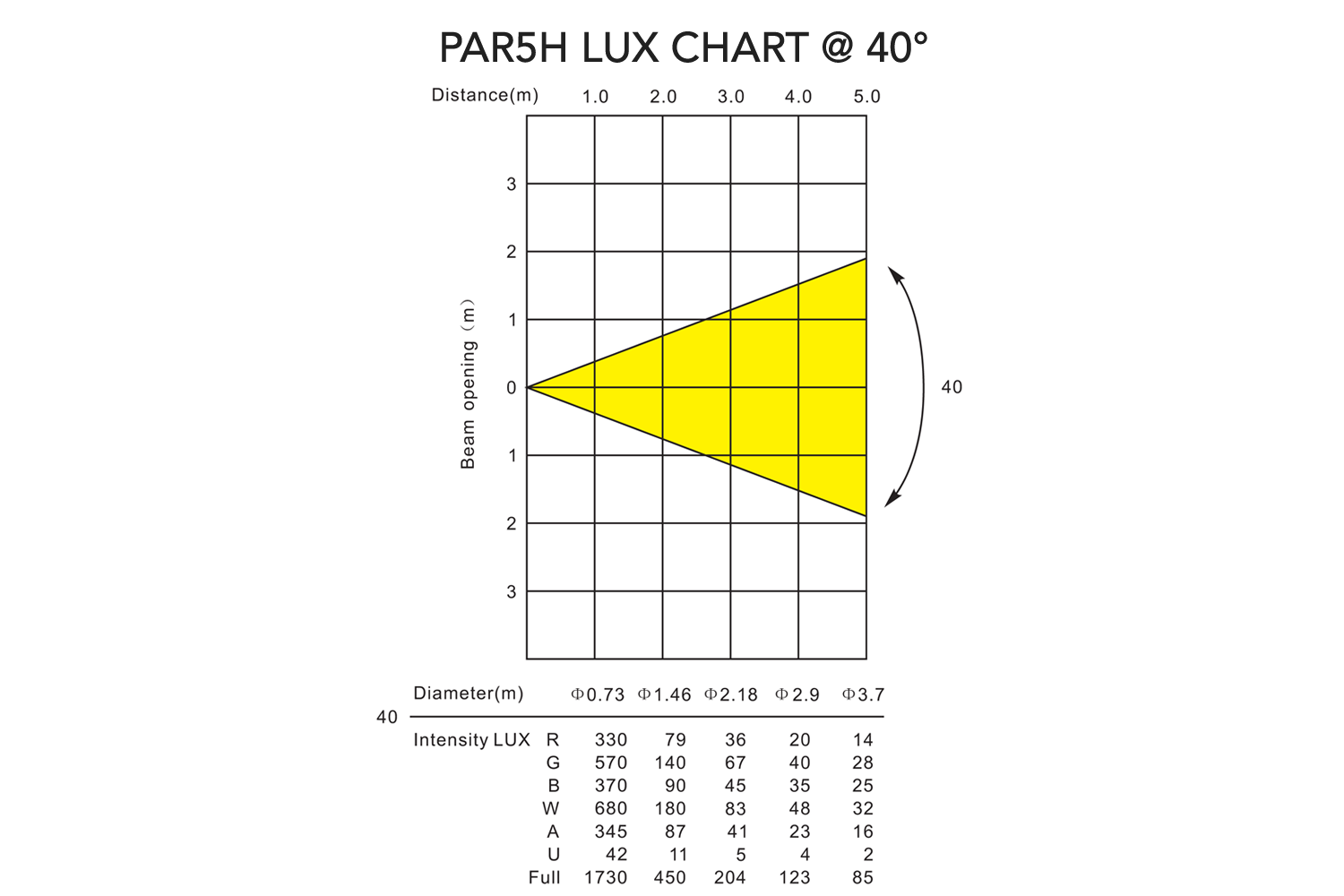

  • Beam Angle: 30˚ (40˚, 25˚, 15˚ Optional)

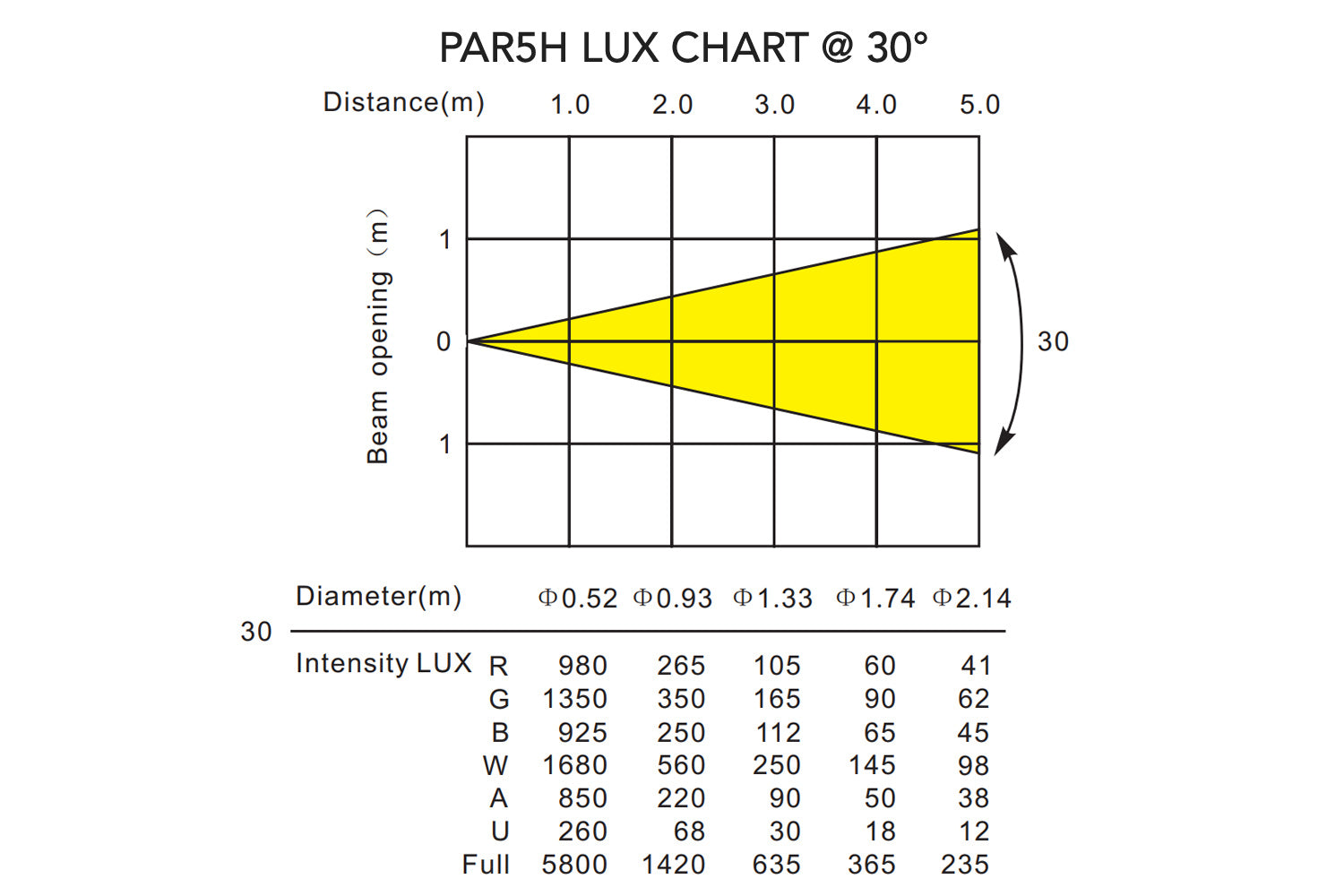

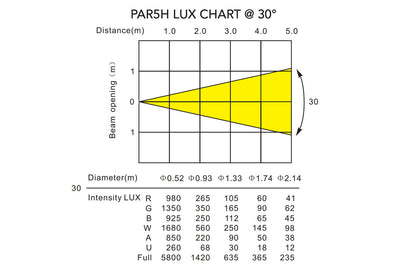

  • Output: 1,420 lux @ 2.0 m full on

  • PWM: 2,940Hz

  • LED Life: 50,000 hours


Effects



  • Dimming: 5 x 16-bit Dimming Curves

  • Strobe: 1~30Hz


Power



  • Input Voltage: 100V~240V AC, 50/60Hz, 50W

  • Power Connection: True1 in/out


Control



  • Operational Modes: DMX, WDMX (optional), auto run, sound active, master/slave, manual colour control, static colour control

  • Display: 4-button LCD control panel

  • DMX Protocol: DMX512

  • DMX Channel Mode: 1 / 2 / 3 / 4W / 4A / 6 / 8 / 12 / 14

  • DMX Interface: 5-pin XLR in / out


Housing



  • Housing Materials: Die-cast aluminium, matte black finish

  • Cooling: Fanless Cooling

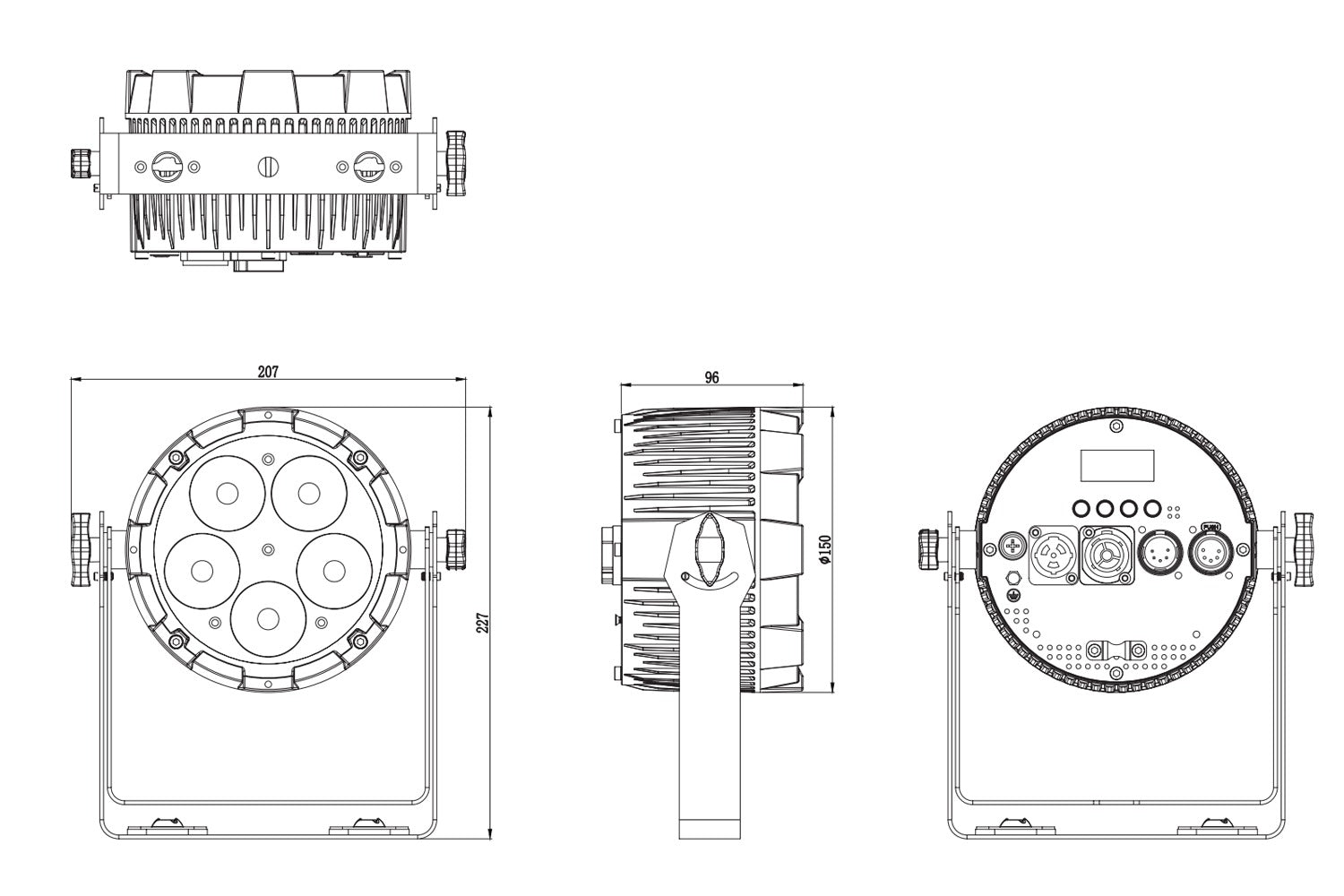

  • Dimension: 207 x 227 x 120mm

  • Net Weight: 1.9kg

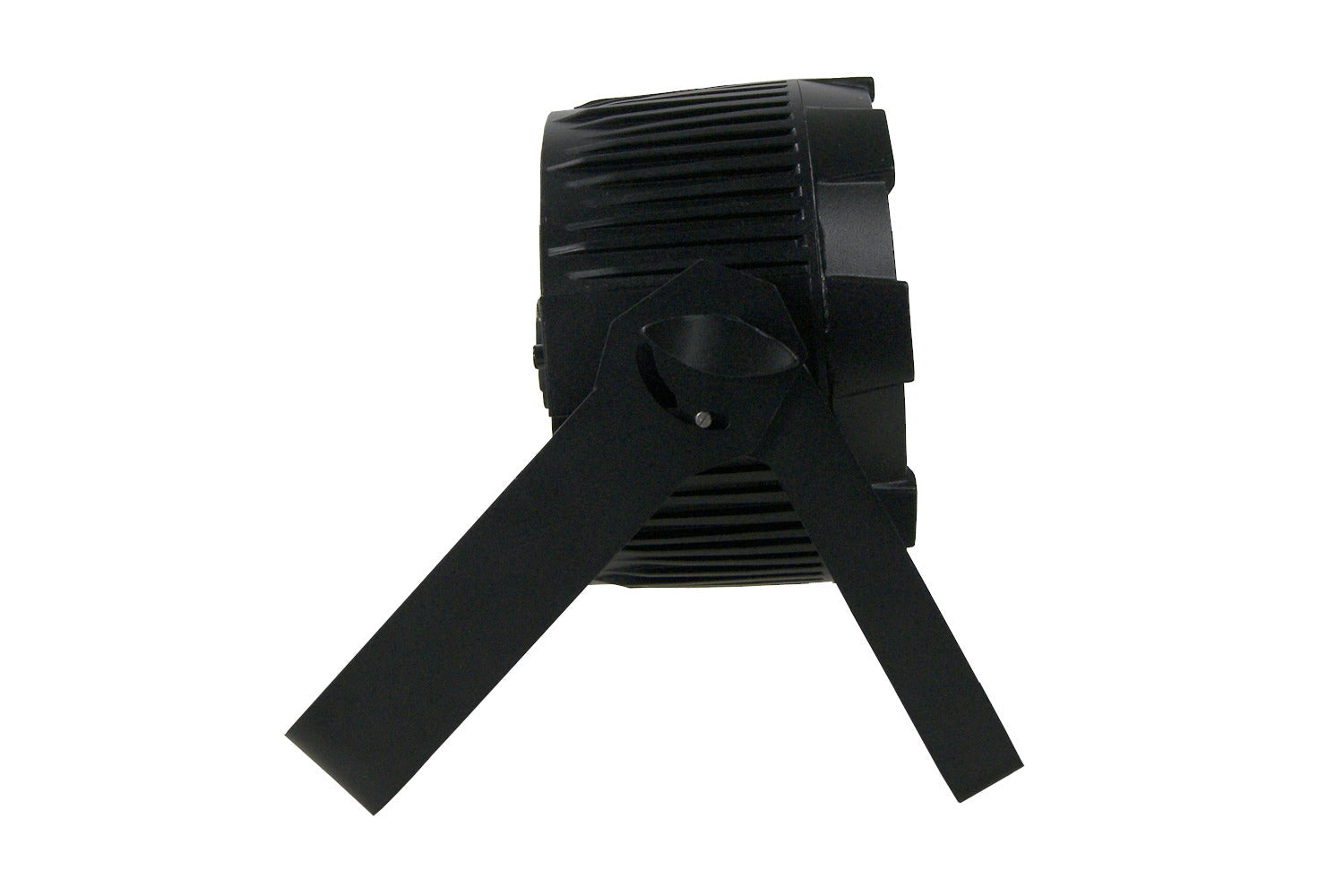

  • Rigging: 1 x Omega bracket with 1/4 turn quick locks


MISC





























Download Product Datasheet


Download user manual


Warranty: 3 years
