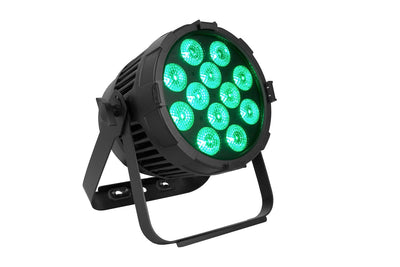

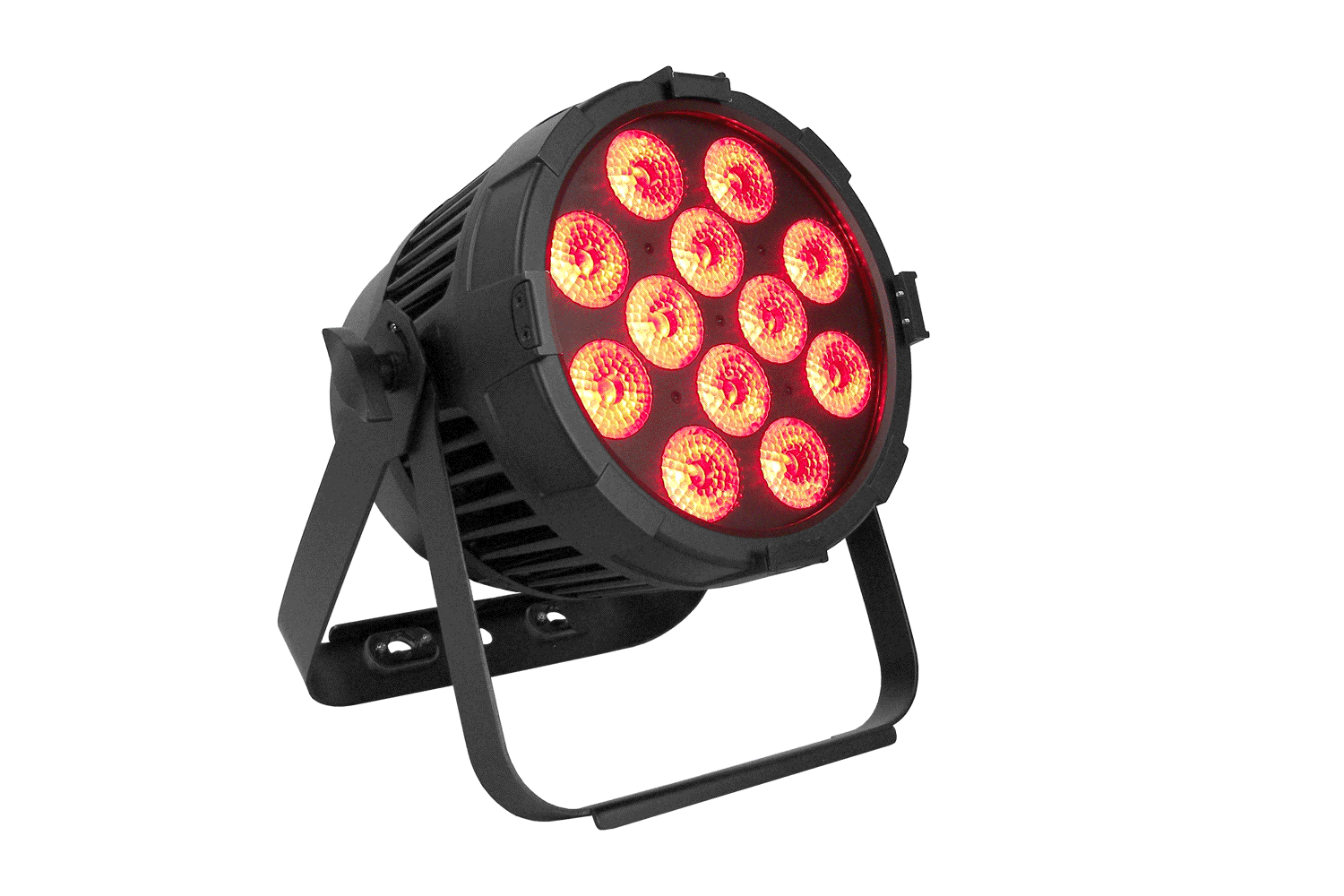

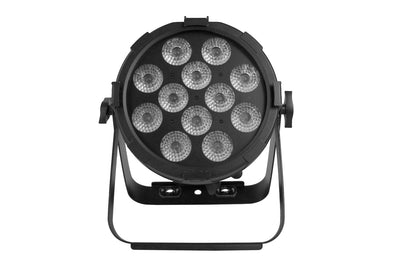

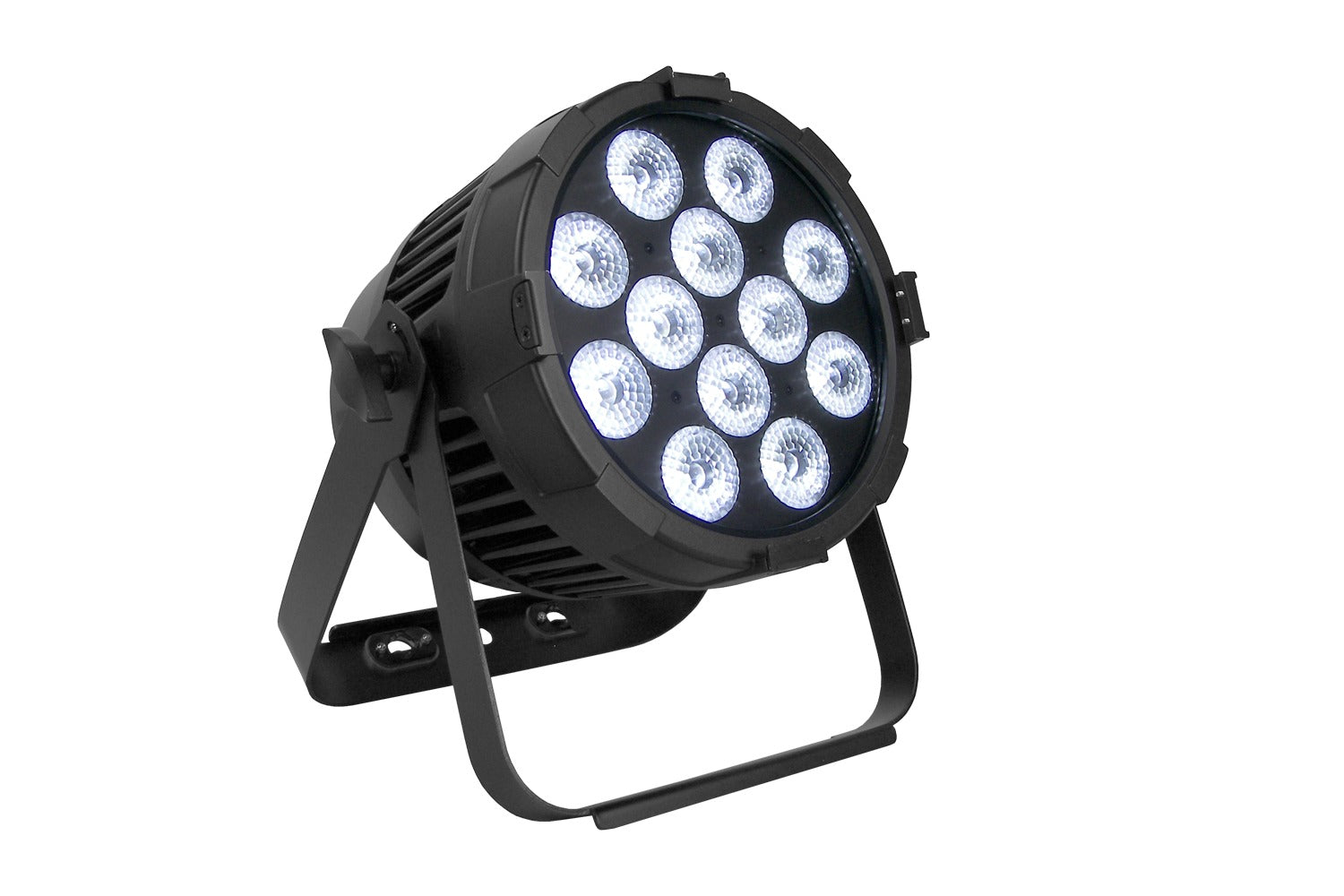

PAR12X20H-IP - Outdoor Pro Par with 12 x 20W RGBWAU LEDs

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

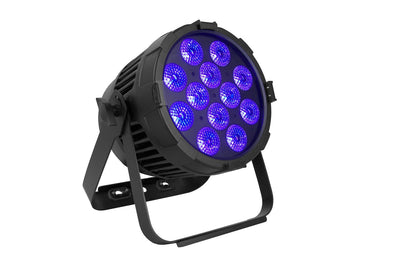

    The Event Lighting PAR12X20H-IP a powerhouse of light and versatility. With 12 x 20W RGBWA+UV 6 in 1 LEDs, it delivers stunning colour combinations and ultraviolet effects. Enjoy customisable beam angles with 22

    ° as standard and options of 8°, 14

    ° and 45

    ° providing the perfect spread for any application. Experience an astounding 12,700 lux output at 2.0 meters, ensuring vibrant illumination in any setting. Boasting a robust lifespan of 50,000 hours, this fixture is built to last.


    With 5 x 16-bit Dimming Curves and adjustable strobe settings ranging from 1 to 30Hz, you have full control over your lighting effects. Its flexible operational modes include DMX, auto run, sound active, and more, all easily navigated through the intuitive 4-button LCD control panel. Plus, with a sturdy die-cast aluminium housing and fanless cooling design, durability and reliability are guaranteed.

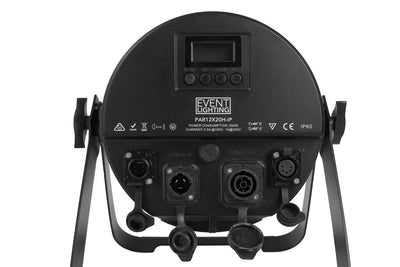

    The PAR12X20H-IP comes with Tru1 in/out, 5 pin DMX in/out, on-board WDMX and includes an omega bracket for quick and easy installation.





    Photometrics



    • Light Source: 12 x 20W RGBWA+UV 6 in 1 LED

    • Beam Angle: 22° (Optional: 8°, 15°, 45°)

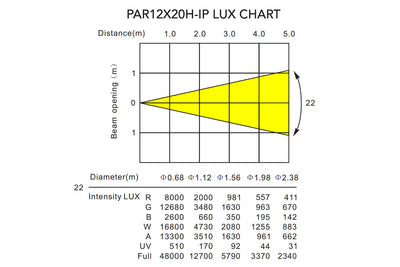

    • Output: 12,700 lux @ 2.0m full on

    • PWM: 1,240Hz

    • LED Life: 50,000 hours


    Effects



    • Dimming: 5 x 16-bit Dimming Curves

    • Strobe: 1~30Hz


    Power



    • Input Voltage: 100V~240V AC, 50/60Hz, 250W

    • Power Connection: True1 in/out


    Control



    • Operational Modes: DMX, WDMX, auto run, sound active, master/slave, manual colour control, static colour control

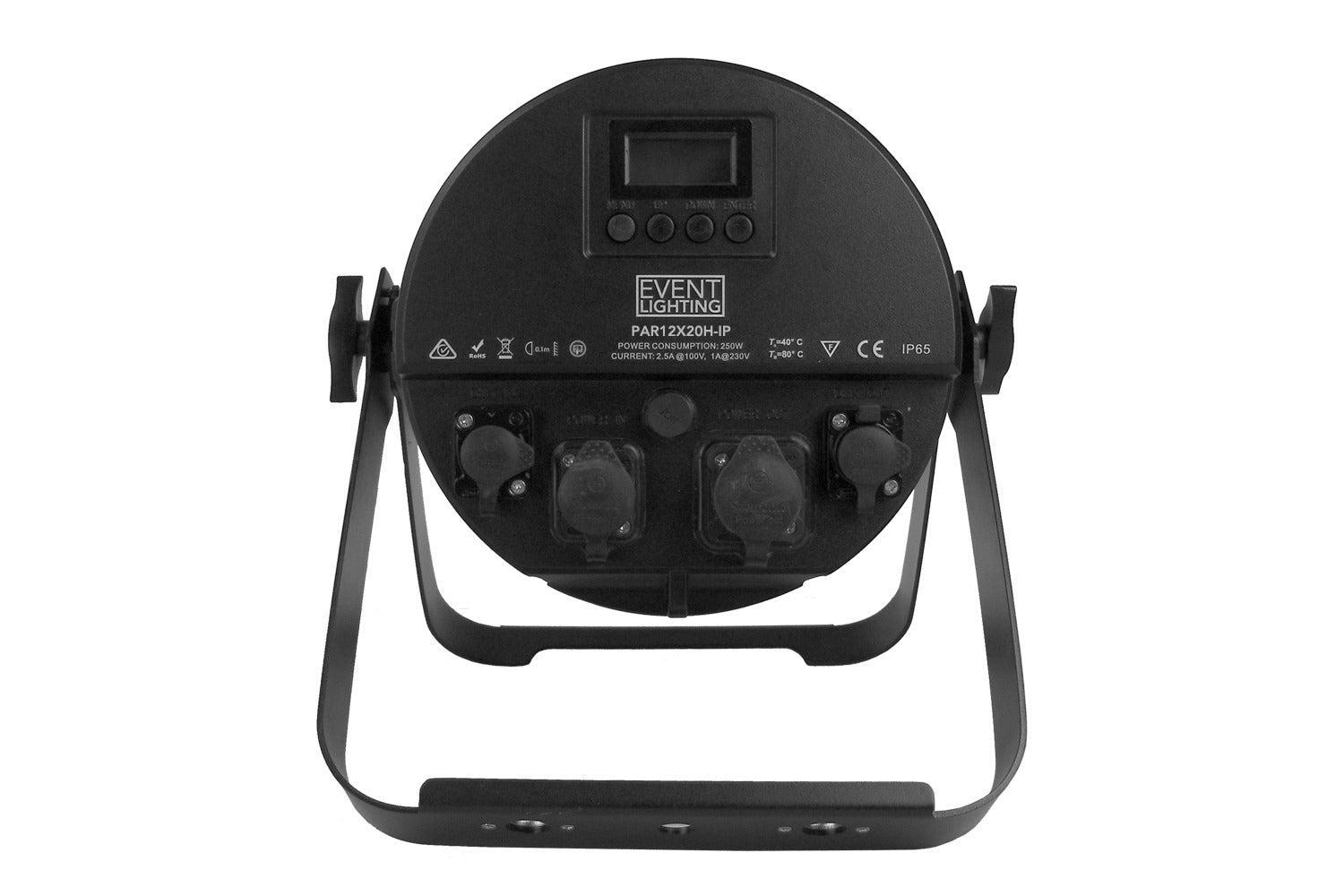

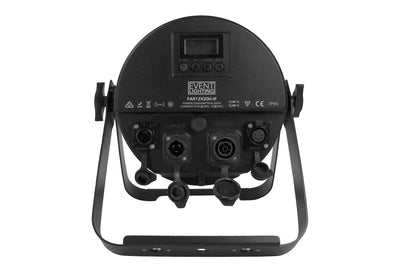

    • Display: 4-button LCD control panel

    • DMX Protocol: DMX512

    • DMX Channel Mode: 1 / 2 / 3 / 4W / 4A / 6 / 8 / 12 / 14

    • DMX Interface: 5-pin XLR in/out


    Housing



    • Housing Materials: Die-cast aluminium, matte black finish

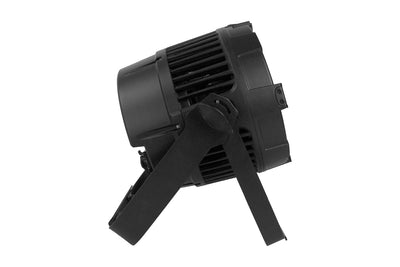

    • Cooling: Fanless Cooling

    • IP Rating: IP65

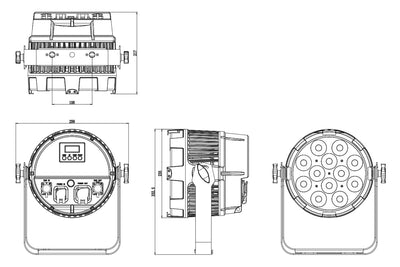

    • Dimension: 299 x 217 x 333mm

    • Net Weight: 3.2kg

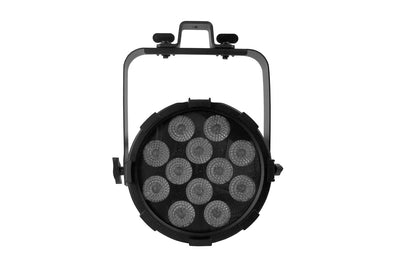

    • Rigging: 1 x Omega bracket with 1/4 turn quick locks

























    Download Product Datasheet


    Download user manual


    Warranty: 3 years
