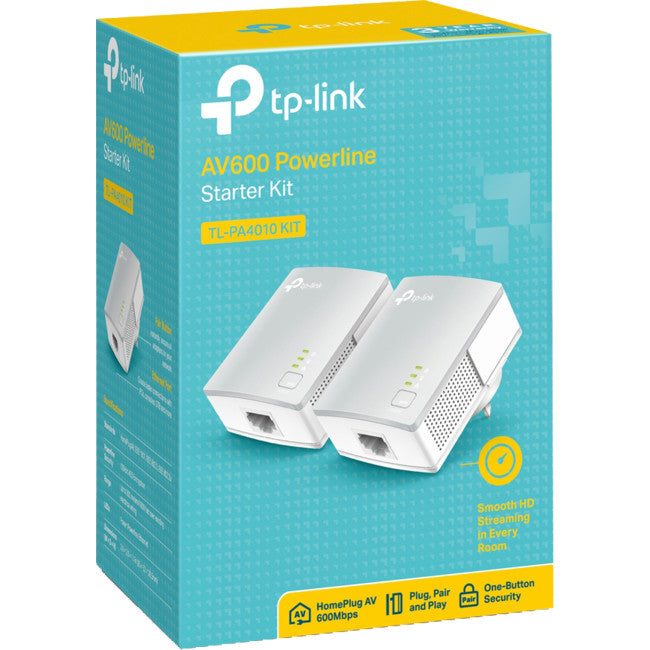

PA4010KIT 600MBPS POWERLINE ADAPTER KIT TP-LINK TL-PA4010 KIT

PA4010KIT 600MBPS POWERLINE ADAPTER KIT TP-LINK TL-PA4010 KIT

Overview

TP-LINK AV600 Powerline Starter Kit

  • HomePlug AV standard compliant, high-speed data transfer rates of up to 600Mbps.
  • Miniature design, smaller than most powerline adapters on the market, blends discreetly in front of any power outlet.
  • No new wires, easy Plug and Play operation, no configuration required.
  • Patented Power-Saving Mode automatically reduces power consumption by up to 85%.

600Mbps Powerline Speeds Ideal for HD Streaming

Using advanced Home Plug AV technology, TL-PA4010 KIT provides users with stable, high-speed data transfer rates of up to 600Mbps on a line length of up to 300 meters. With speed of up to 600Mbps, TL-PA4010 KIT enables heavy-bandwidth applications like HD streaming, on-line gaming and large file downloading, turning your home into a robust and high-speed networking.

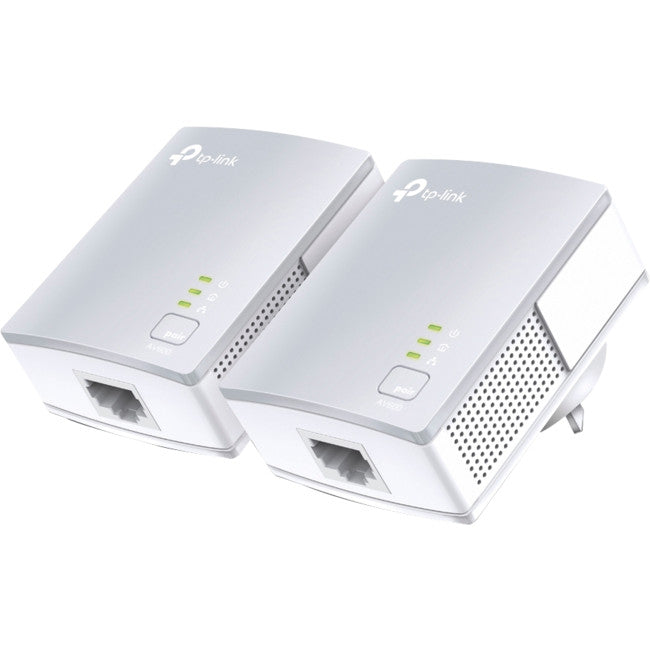

Miniature Design

With its new ultra-compact housing design, TL-PA4010 KIT is much smaller than TP-Link’s legacy mini 600Mbps powerline products. At just 28.5mm thick, it nearly blends completely in front of any power outlet.


Pair Button for Easy Network Security

Simply by pushing the Pair button on the adapters, users can set up a hassle-free Powerline network within minutes, complete with 128-bit AES encryption for network security and data protection.

It's that simple!

  1. Plug the adapter into the power outlet.
  2. Connect the device via the network cable to the adapter.
  3. Press the pair buttons and you're done!

Specifications

Specifications


HARDWARE FEATURES Plug Type AU
Standards and Protocols HomePlug AV, IEEE802.3, IEEE802.3u
Interface 1 × 10/100Mbps Ethernet Port
Button Pair Button
Power Consumption
  • Maximum: 4.60W (220V/50Hz)
  • Typical: 4.26W (220V/50Hz)
  • Standby: 0.88W (220V/50Hz)
LED Indicator PWR, PLC, ETH
Range 300m in house
SOFTWARE FEATURES Modulation Technology OFDM
Encryption 128-bit AES Encryption
ENVIRONMENT Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature −40°C to 70°C (−40°F to 158°F)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
GENERAL Dimensions (W×D×H) 65mm × 52mm × 28.5mm (2.6″ × 2.0″ × 1.1″)
Package Contents
  • Powerline Ethernet Adapter
  • Ethernet cable (RJ45)
  • Resource CD
  • Quick Installation Guide
Certification CE, FCC, RoHS
System Requirements Windows 8/7/Vista/XP/2000, Mac, Linux
