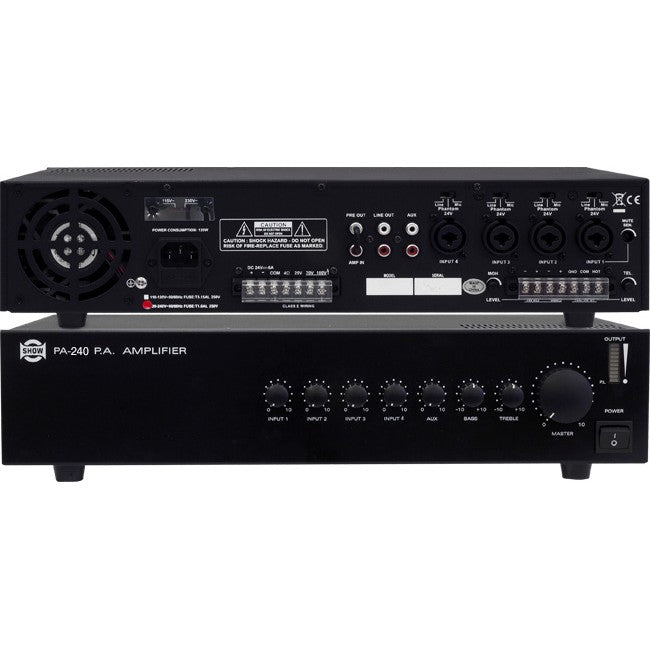

240W Multiplex Amplifier

Introduction

The NEW professional PA240 public address amplifier is specially designed for use in small hotels, super-markets, churched, convention halls and school more public area. Highperformance, excellent sound quality and hassle-free operation make this amplifier an easy choice for installations.

Features:

• RMS 240W/MAX 330W
• AC 115/230V 50Hz/60Hz switchable; DC 24V for external use
• 1 AUX / 1 Master volume control
• 2 Treble/Bass controls
• 4 Input volume controls; TEL. input & Monitor volumecontrols
• Only amplifier output

Specifications:

• Power Output (at 4Ω): RMS 240W / MAX 330W
• Frequency response: 80Hz-16kHz (±3dBv)
• Power supply: AC 115V / 230V 50Hz / 60Hz switchable; DC 24V
• Input / sensitivity: Mic: -52dBv balanced; Phantom: -52dBv balanced; Line: -10dBv balanced;AUX: -20dBv; AMP. In: 0dBv; TEL. In: -10dBv
• T. H. D.:≤1%
• S/N Ratio : MIC≥65dB / AUX≥80dB / Phantom: ≥65dB; Line: ≥75dB
• Output (Ω): COM 4Ω
• Output (V): 25V, 70V, 100V
• Controls: 1 AUX volume control, 1 Master volume control,2 Treble / Bass controls; 4 Input volume controls, TEL. input & Monitor volume controls
• Dimensions (WxDxH): 420 x 330 x 88mm (16.5" x 13" x 3.5")

• Weight (Approx.): 11kg (24.42 lbs)

Download the PA120 manual(614kb PDFfile)
