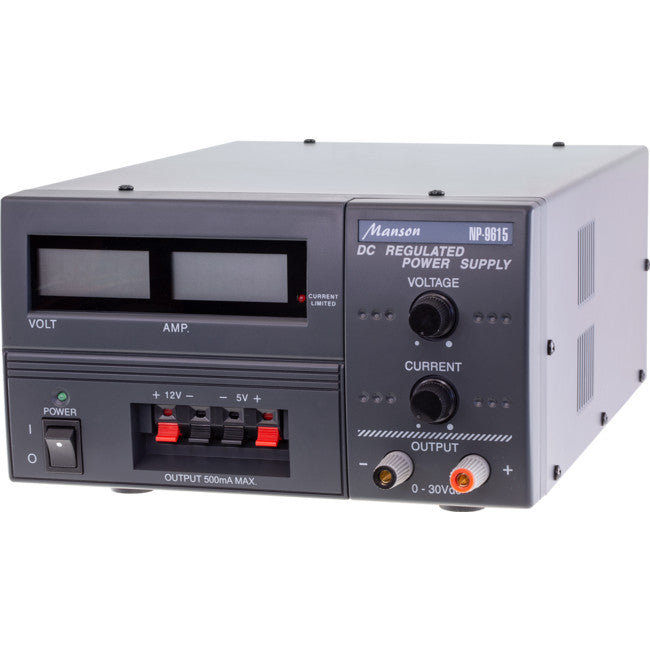

NP9615G 5AMP 0-30V DC POWER SUPPLY DIGITAL BENCH TOP DARK GREY MANSON NP-9615

$389.00

Manson 5AMP 0-30V BENCH TOP DC POWER SUPPLY – DARK GREY

The NP-9600 Series DC Regulated Power Supplies are a completely solid state, compact, well regulated, constant voltage power supplies suitable for service field, hobby & telecommunication equipment use. It provides three different voltages output for different usage.

The NP-9615 is designed for general electronic servicing,school electronics, laboratory use and for the hobbyist. Canbe used as either a constant voltage supply with current limiting or as constant current source with voltage limiting. The NP-9615 has three independent outputs, two are of fixed voltage, and one adjustable voltage.

Features

Overload and Short Circuit Protection:Prevent the unit from overload and short circuit. When the unit is under the condition of overload or short circuit, the output current will be limited.
Independent 5V, 12V Easy Snap-On output terminals to make it easy to use for TTL and CMOS circuit testing. The grounding of the output terminals is independent that the output can be connected in series to make a higher output voltage.
Outputs:
- 0-30V adjustable
- 5V 500mA Snap-On
- 12V 500mA Snap-On
Current Limiting LED Indicator
Adjustable Current Control
Overload and Short Circuit Protection
Galvanised Steel Case
Polycarbonate Front Panel

Actual product colour: Dark Grey

Product illustration

Specifications

Output Voltage	0-30V DC
Rated Output Current	5A
Fixed Output Voltage 1	5V DC 0.5A Continuous 1A Maximum
Fixed Output Voltage 2	12V DC 0.5A Continuous 1A Maximum
Ripple & Noise (RMS)	5mV
Load Regulation	30mV
Line Regulation	10mV
Input Voltage	230V AC / 50Hz
Meter Type	LCD
V Meter Range	3 Digit Display
A Meter Range	3 Digit Display
Meters' Accuracy	1% +2 Digits
Output Terminals	One Variable Main Output Screw On Type Two Snap On Fixed Voltage 1 and 2
Cooling System	Themostatic Control Fan
Protection	Overload, Short Circuit
Approvals	CE EN61558, EN55014
Dimensions (W×H×D)	205mm × 115mm × 280mm
Weight	6.5kg

USER MANUAL
