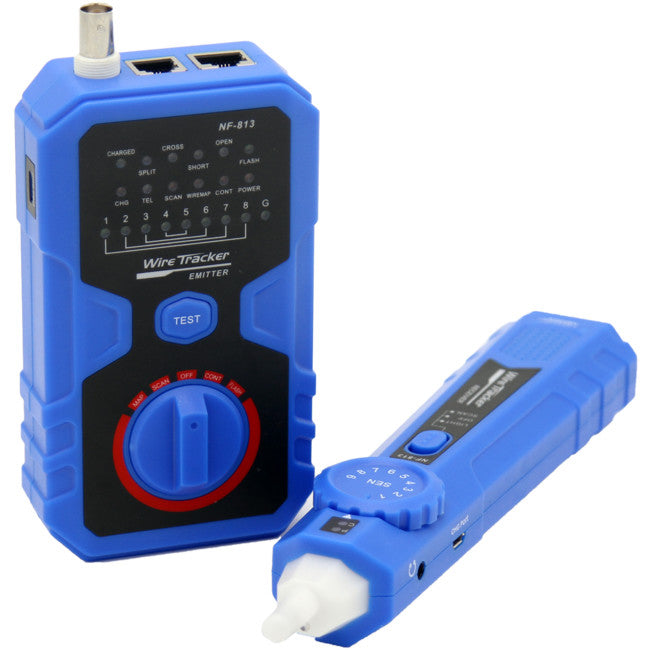

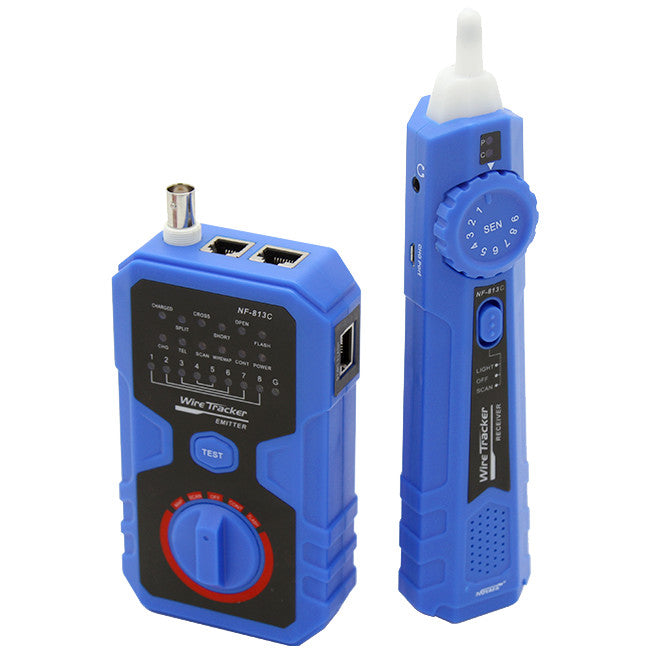

NF813C CABLE TRACER WITH AC FILTER PORT FLASHING DOSS NF-813C

NF813C CABLE TRACER WITH AC FILTER PORT FLASHING DOSS NF-813C

NF813C CABLE TRACER WITH AC FILTER PORT FLASHING DOSS NF-813C

NF813C CABLE TRACER WITH AC FILTER PORT FLASHING DOSS NF-813C

NF813C CABLE TRACER WITH AC FILTER PORT FLASHING DOSS NF-813C

NF813C CABLE TRACER WITH AC FILTER PORT FLASHING DOSS NF-813C

NF813C CABLE TRACER WITH AC FILTER PORT FLASHING DOSS NF-813C

NF813C CABLE TRACER WITH AC FILTER PORT FLASHING DOSS NF-813C

NF813C CABLE TRACER WITH AC FILTER PORT FLASHING DOSS NF-813C

Sold Out $119.00

Features:

Quickly finding the required line pairs among numerousones.
Trace cable with continuous and clear tone, AC Currentrejection.
It tests physical connection status of network cable,such as open , short , miswire and split connection
Port flash function directly find target cables connected with switch.
Telephone Line Test: judging TIPorPING line and judging whether the telephone line is idle, ringingoroff-hook.

Specification:

Transmitter specifications	NF-813C
The mas distance of cable mapping	305m
Cable test types	130kHz
Crosstalk test	Yes
Tone mode	2 tones adjustable
Max signal voltage	8Vp-p
Max distance of transmission	600m for RJ45 & RJ11 cable
Max distance of transmission	100m for BNC cable
Battery type	3.7V lithium battry, 1400 mah
Size (mm)	1357835mm
Receiver specifications	NF-813C
Port	RJ45-8P
Anti-jamming	yes
Battery type	3.7V lithium battry, 1400 mah
Size (mm)	203 x 45x 33mm
