The Doss NF-633 display port cable tester tests 20 internal wires individually and gives a clear reading of display port cable condition.
| cables versions support | 1) Display Port Cable | ||||
| support test | 1th ~19th pin to pin wire map and shield detection, and 20th detection. | ||||
| Test interface of master unit | Display Port *1 Mini Display Port *1 | ||||
| Test interface of remote unit | Display Port *1 Mini Display Port *1 | ||||
| Test mode | Sweep and Continuity | ||||
| Max test distance | 15 metres | ||||

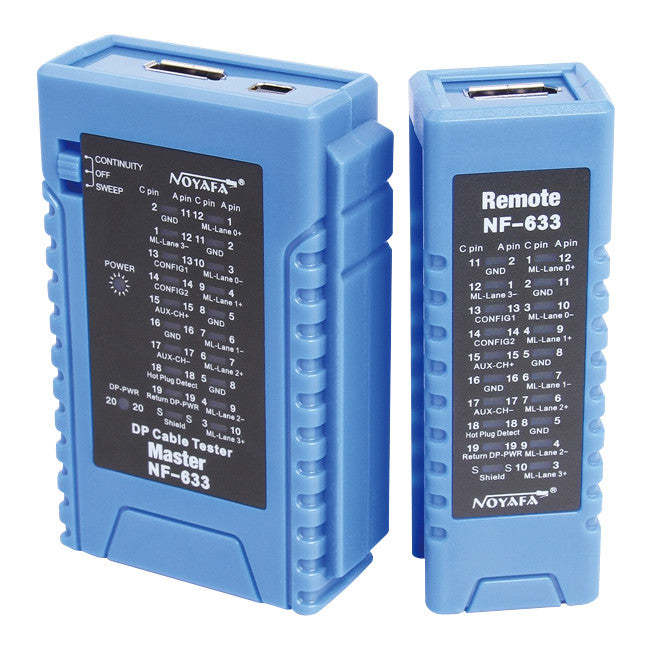

| Status Display | 19 LEDs and Shield Led on both Master and Remote Unit | ||||
| 20th LED only on Mater Unit | |||||
| Beeper indication | Yes | ||||
| Low battery indication | 6.0V | ||||
| Power source | DC 9V (NEAD 1604/ 6F22) x1 (not included) | ||||
| Environment | Operating: 0° to 40° < 80% RH | ||||
| Storage: -10° to 50° < 70% RH | |||||
| Dimensions | Master unit: 103x66x27mm | ||||
| Remote unit: 103x35x27mm | |||||
