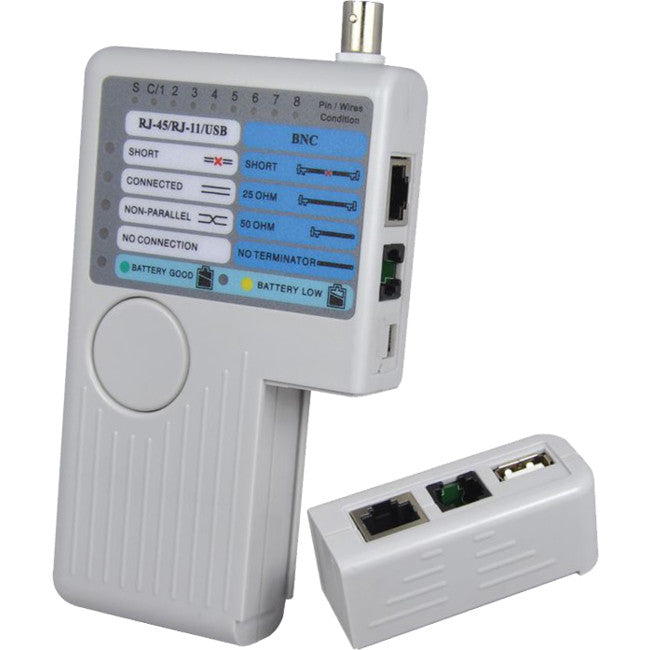

NF3468 CABLE CONTINUITY TESTER RJ11 RJ45 BNC COMMON USB CABLE DOSS NF-3468

The 4 in 1 Cable Tester tests 4 common LAN and Computer cables. It tests installed cables or patch cords with RJ-45,RJ-11,USB and BNC connectors. It is used to test faulty cables such as open, cross cables, short-circuit or crosstalk.

Features

  • Tests shielded (STP) or unshielded(UTP) LAN cables
  • Test shields in 1394 and USB cables
  • Ergonomic portable handheld design
  • Tests installed wires and patch cables
  • Remote unit stores in Main unit
  • 180m test distance (RJ-45/RJ-11/BNC)
  • Simple one button test
  • LEDs indicate connections and faults
  • Beeper provides audible annunciation of test results

Specifications

Cable tested UTP/STP LAN cables terminated in RJ-45 connectors(EIA/TIA 568)
RJ-11 cables with connectors, 2 to 6 conductors installed
1394 Cables with Type 1 plugs on both ends
USB cables with Type A flat plug on one end and type B square Plug on other end
BNC cables with connectors
Faults Indicated No Connection
Shorts
Opens
crosses
Low battery indicator LED lights to indicate low battery
Battery 9V Battery (not included)
Dimension 7.25x4.0x1.0 inches (LxWxH)
Weight 202g(Without battery)
