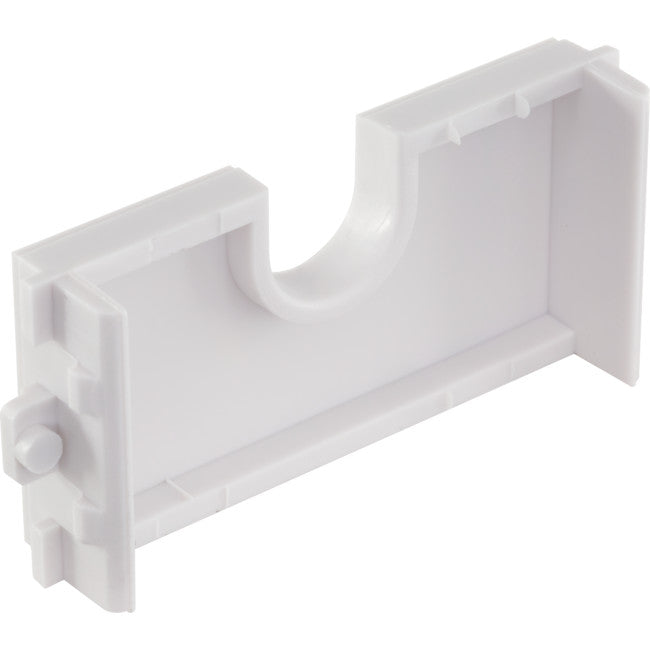

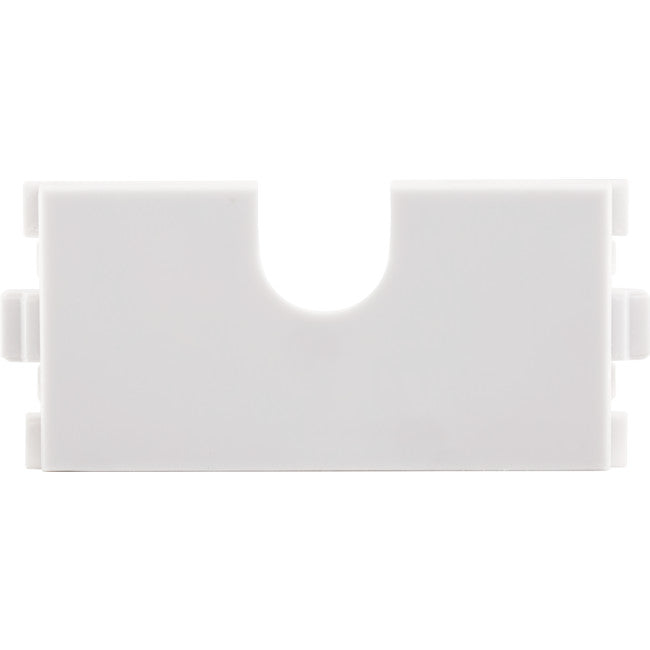

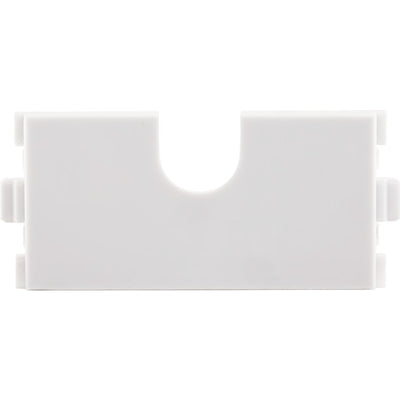

MWI13B11 BRIDGE MODULE FOR MW13FR WITH 11MM HOLE CUTOUT PRO2

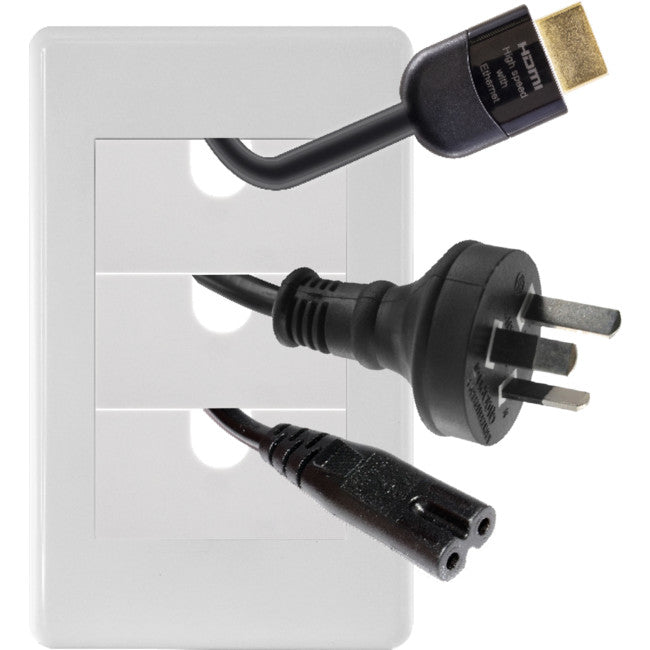

The pro.2 modular wallplates are one of the most versatile ways to hide unsightly AV cables and leads. The problem now is that many installers need to run a 4K signal from a source to the TV. Despite our HDMI insert being our most popular to date, when sending an 18gbs singal there will be too much loss in the joins. So we have introduced the MWI13B11. This insert is desinged to allow a continuous 4K HDMI lead to pass through a cleverly designed 11mm cut-out. This allows for any cable up to a gauge of AWG24 torun directly through the wall plate.

Specifications

• White Colour
• ABS material
• Panel Dimension: 47 (L EX. inserts) *24 (W)* 11(H) mm
• OD 11mm pass through
• Ideal to pass through HDMI leads
• Upto AWG24 40M Pro2 HDMI lead

Diagram
