The MSP40 is a professional media player/recorder supporting a wide variation of compressed and lossless audioformats.
Playback of MP3, OGG,AAC, FLAC, WMA and WAV is possible in numerous bit rates, while recordings are possible in MP3,OGGand WAV file types.

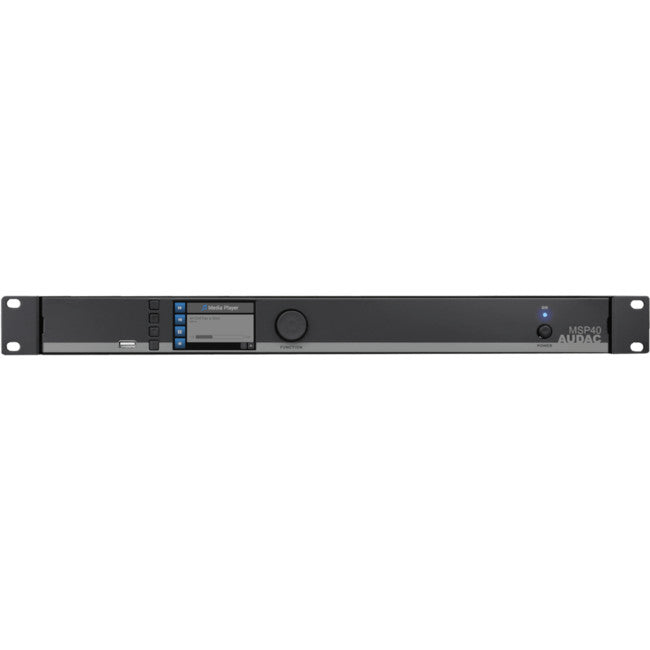

The front panel of the system accomodates a 2.8” TFT display in combination with a push rotary function dial and 4 tactile pushbuttons.
The controls and indicators on the front panel ofthe unitare guaranteeing an intuitive and userfriendly operation, allowing hassle free operationand configuration to even unexperienced users.
All media information including track, artist,playback mode, are indicated on the graphicaluser interface, while playback modes areselectable between single or continous playand various repeat and random play modes areavailable.

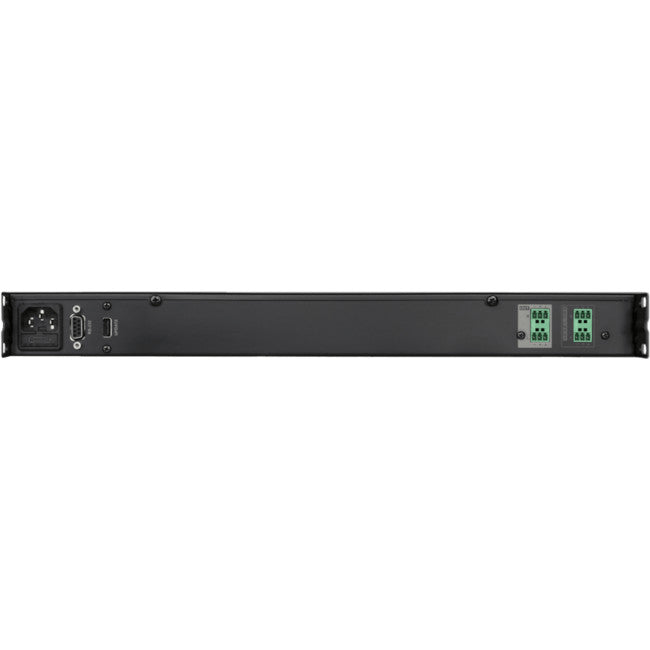

Both the balanced stereo line output (playback)and the balanced stereo line input (recording)are implemented using two 3-pin terminal blockconnections.
The USB media carrier shall be inserted to the USB socketon the front panel ofthe unit.
The RS-232 communication port allows system integration with any home or industrial automationsystem, while an optional 2.4 GHz remote controlallows handheld control whilehidden out of sight.
SYSTEM SPECIFICATIONS | ||||
---|---|---|---|---|
Control | Front panel | |||
RS-232 | ||||
Compatible filesystems | FAT16 | |||
FAT32 | ||||
Operating temperature | 0° ~ 40° @ 95% Humidity | |||
Outputs | Level | 8 dB ~ -91 dB | ||
Compatible media | Playback | USB memory | ||
USB HDD | ||||
Supported filetypes | Playback | MP3 | ||
Ogg Vorbis | ||||
AAC | ||||
FLAC | ||||
WMA | ||||
WAV | ||||
Recording | MP3 | |||
Ogg Vorbis | ||||
WAV | ||||
Display | Type | 2.8” Graphical LCD | ||
Power | Supply | Switching mode | ||
Source | 110 ~ 240 V AC / 50 ~ 60 Hz | |||
Consumption | 1.6 W | |||
Inputs | Balanced Stereo | Connector | 3-pin Euro Terminal Block (Pitch - 3.81 mm) | |
Outputs | Balanced Stereo | Connector | 3-pin Euro Terminal Block (Pitch - 3.81 mm) |
PRODUCT FEATURES | ||||
---|---|---|---|---|
Dimensions | 482 x 44 x 330 mm (W x H x D) | |||
Weight | 3.15 kg | |||
Mounting | 19” | |||
Unit height | 1 HE | |||
Construction | Steel | |||
Colours | Black | |||
Accessories | Optional | RMT40 2.4 GHz remote control |
