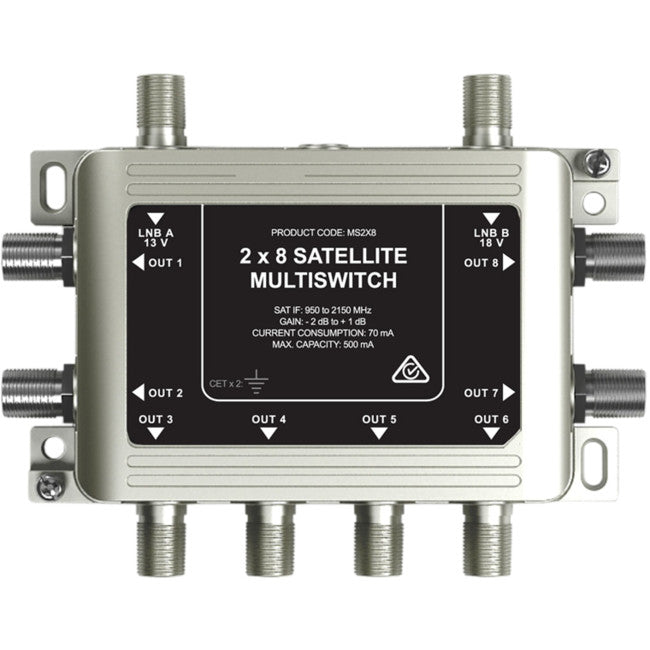

MS2X8 MULTISWITCH 2 WIRE 8 OUT

Features

• For 8 subscribers or 4 IQ subscribers

• Remote powered by satellite receiver

• The IF polarity selection is controlled by the remotevoltage provided by the receiver:
  < 14.5 V = Vertical
  > 15.5 V = Horizontal

Specifications

Inputs 2
Outputs / Subscribers 8
Through Loss: SAT-IF: 950 ... 2150 MHz - 2 ... + 1 dB
Isolation: Input = 24 dB [Typ. 26 dB]
Isolation: Switching = 24 dB [Typ. 26 dB]
Current Consumption < 70 mA
Capacity (IF Ports) Max 500 mA
Ambient Temperature - 20 ... + 50 ’_x0015_C
Dimensions (W x D x H mm) 118 x 72 x 19 mm
