MQS36 4CH PASSIVE MIXER LINE OR INSTRUMENT LEVEL MCLELLAND

MQS36 PASSIVE MIXER

Specifications:

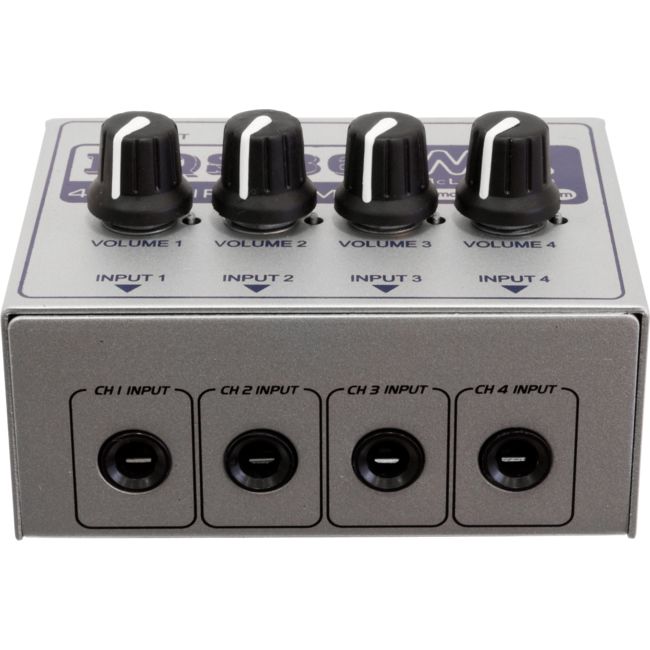

  • Input: 4x 1/4" unbalanced jacks for connection to line or instrument level devices

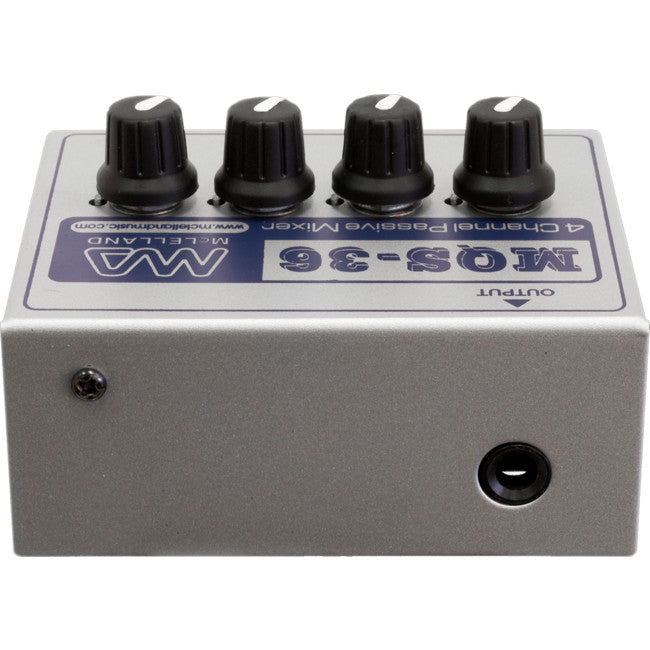

  • Output:1x 1/4" unbalance jack for connection to a mixer input or other input device
  • Each channel has a volume control
  • This unit may be used a 1-in-4 out box when all controls are turned completely clockwise
  • This unit is a four channel passive mixer for expanding a console mixer, mixing microphones, instruments, stereo to mono, etc.
  • Power: No power required

Input Impedance

47K Ohms

Output Impedance

12K Ohms

Gain

-13dB

Dimension

95x 73x 40 mm

Weight

321g
