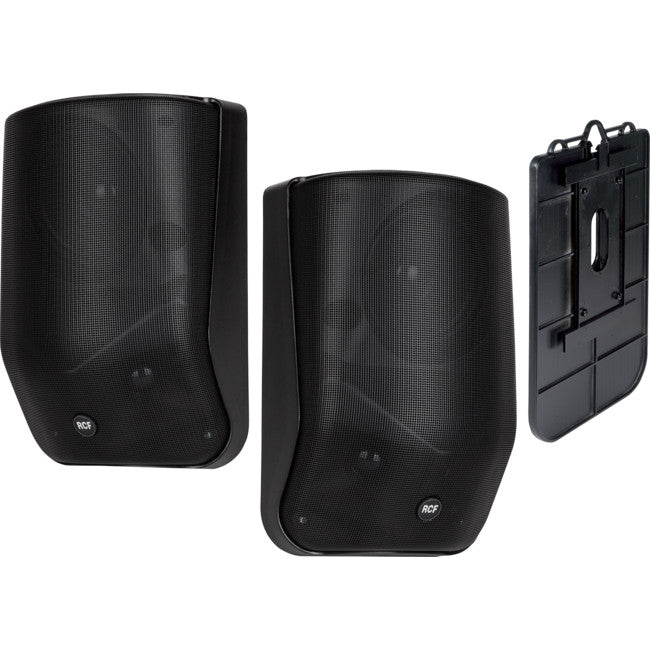

MQ60HPB 2-WAY WALL MOUNT SPEAKER PAIR BONUS LINK PLATE - BLACK RCF
0

Your Cart is Empty

MQ60HPB 2-WAY WALL MOUNT SPEAKER PAIR BONUS LINK PLATE - BLACK RCF

MQ 60H - BLACK 2 WAY WALL MOUNT SPEAKER

The MQ60H is a wall mount monitor speaker designed to guarantee uniform coverage of a large area in order to limit the number of speakers and therefore the installation points.

It is a two-way speaker with three transducers: the 5“ woofer and the two horn-loaded dome tweeters with constant directivity are positioned in such a way as to ensure the maximum listening comfort within the area covered.

Installation is carried out in two phases: first, youmount the support on the wall and make the electrical connections; when all the works are completed, you insert the speaker and make a quick connection.



Applications

  • Music applications
  • Audio visual applications
  • Restaurants
  • Places of worship
  • Recreational facilities
  • Shopping malls
  • Pubs

Features

  • Two way Bass reflex speaker for music reproduction
  • Speaker composed by 5" woofer 5" and 2 x 1" dome tweeter
  • Max output power 120 W
  • Bypass configuration input 16 Ω, output power 60 W RMS
  • 30W - 20W - 10W - 5W output power for 100 V line
  • 15W - 10W - 5W - 2,5W output power for 70 V line
  • 2600 Hz crossover frequencies with attenuation 12/12dB/oct
  • Dynamic Protection on woofer and tweeter

Acoustical Specifications

  • Type of speaker:2 way bass reflex speaker
  • Frequency Response:100 Hz - 19 kHz
  • Max SPL @ 1m:109 dB
  • Horizontal coverage angle:180°
  • Vertical coverage angle:120°
  • Power Handling:60 W RMS
  • Peak Power Handling:120 W PEAK
  • System Sensitivity:88 dB
  • Impedance:16 Ω
  • Crossover frequencies:2000 Hz

Transducers

  • Speaker:5"
  • Tweeter:2 x 1"

Input Section

  • Input connector:2 euroblock
  • Constant voltage:100 V, 70 V
  • Power Selection:30 - 20 - 10 - 5 W (100 V)

Cabinet

  • Hardware:Body in self-extinguishing plastic
  • Colour:White / Silver / Black
  • Grille:Steel

Physical Specifications

  • Height:297 / 11.69 mm/inch
  • Width:198 / 7.79 mm/inch
  • Depth:122 / 4.8 mm/inch
  • Net weight:2.85 / 6.28 kg/lbs

Shipping information

  • Package height:340 / 13.38 mm/inch
  • Package width:265 / 10.43 mm/inch
  • Package depth:180 / 7.08 mm/inch
  • Shipping weight:3.39 / 7.47 kg/lbs



RCF MQ60HLINK

Suspended Mount Link Bracket to Join 2 MQ 60H Speakers

MQ60HLINK accessories, available in black (AC MQ60H Link-B) or white (AC MQ60HLink-W) can be used to support 2 MQ 60H speakers to form an Omni directional high quality speaker array (360) dispersion over a horizontal surface which is controlled over a vertical surface.

Combining the four constant directivity tweeters In this way, in fact, limits sound dispersion towards the ceiling thus improving system performance, especially when acousticsare critical; the two woofers bring about the right low frequency contribution.

When used in places with high ceilings such as large sales areas and halls, clarity associated with high acousticcomfort is reached with suspended installation of a limited number of MQ 60H speaker pairs that can be combined through the accessory.

  • AC MQ60HLINK accessories, available in black or White can be used to support 2 MQ 60H speakers to form an Omni directional high quality speaker array (360) dispersion overa horizontal surface which is controlled over a vertical surface.
  • MQ 60H Link is made in fibre-glass loaded nylon and itis provided with the slide-insupports for the direct mounting of the two MQ 60H speaker systems.
  • Central fixing ring for the safe suspension of the speaker assembly through a chain or a steel-wire.
