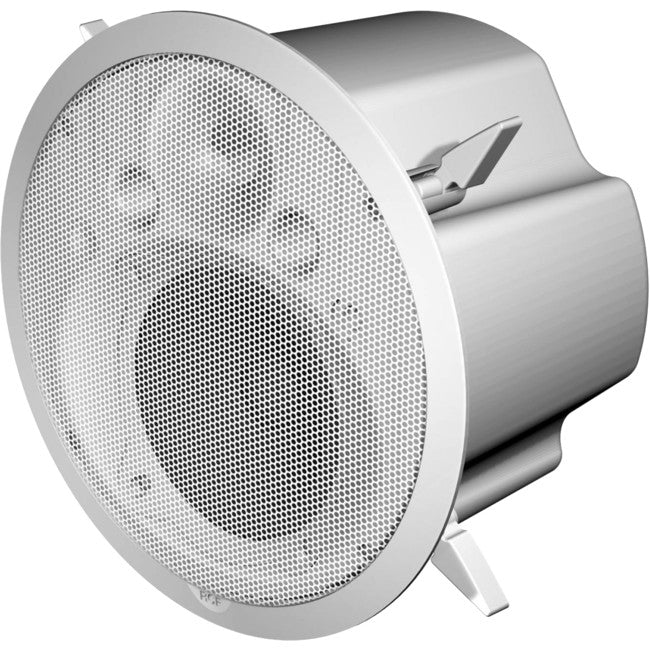

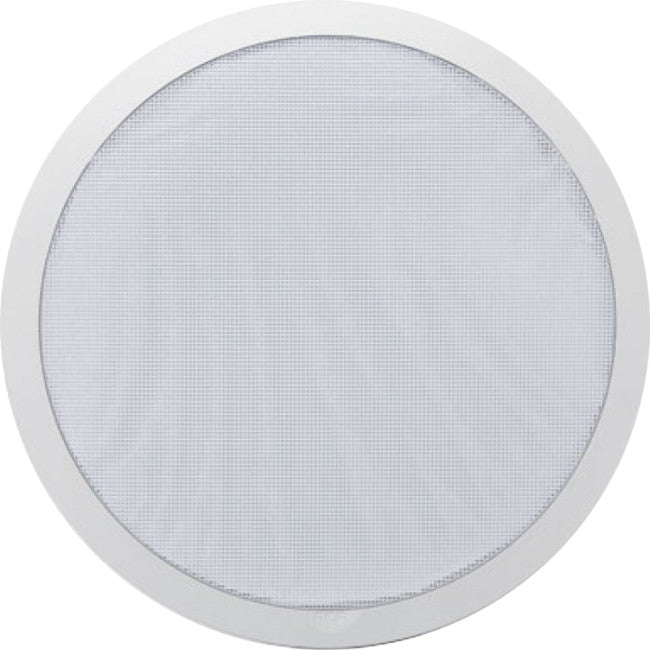

MQ50CW 5" 2 WAY CEILING SPEAKER 16 OHM - 70V-100V RCF RCF MQ50C

MQ 50C - 2 WAY CEILING SPEAKER

MQ 50C

Compact design, light weight and limited depth makes the RCF MQ50C 2-way ceiling monitor loudspeakers ideal for use in any PA systems and background / foreground music systems where good sound is required.

The woofer is a high-excursion, PP coated paper cone – rubber surround design mounted in a tuned enclosure.

The fabric dome tweeter is loaded on a constant Q wave guide to provide natural, smooth sound reproduction on a wide dispersion angle.

Installation of the MQ50C is fast and efficient usingthe built in rotating hooks.

No additional brackets or rings or other supports arerequired: thanks to its lightweight construction the speakercan be mounted as a conventional ceiling speakers.

Connections are made to four polar loop thru Euroblock male and female to get parallel IN/OUT connection.

Wattage taps and voltage adjustments together with 16-ohm operation are selectable by means of a Rotary switch,accessible under the frontal grill.

The enclosure is constructed of high density UV resistant self-extinguishing polystyrene and includes a protective perforated steel grille.

Back dome is made of aluminium.

Features

  • Two way bass refl ex ceiling speaker for music reproduction
  • Speaker: woofer 5" neodymium magnet tweeter 1" dome neodymium magnet
  • Power/RMS: 120/60W Bypass
  • Impedance: [Bypass] 16 Ω
  • [70,7V]: 15W - 10W - 5W - 2.5 W
  • Crossover frequencies: 3000 Hz, 12/12 dB/oct - High pass filter at 150 Hz
  • Angle of coverage: 120° horizontal x 120° vertical
  • Cabinet: Plastic material self-extinguishing, Tuned Alu-dom

Applications

  • Music applications
  • Audio visual applications
  • Restaurants
  • Places of worship
  • Recreational facilities
  • Shopping malls
  • Pubs

Acoustical Specifications

  • Type of speaker: 2 way bass reflex ceiling
  • Frequency Response: 70 Hz - 20 kHz
  • Max SPL @ 1m: 112 dB
  • Horizontal coverage angle: 120°
  • Power Handling: 60 W RMS
  • Peak Power Handling: 120 W PEAK
  • System Sensitivity: 92 dB
  • Impedance: 16 Ω
  • Crossover frequencies: 3000 Hz

Transducers

  • Speaker: 5"
  • Tweeter: 1"

Input Section

  • Input connector: 2 euroblock
  • Constant voltage: 100 V,70 V
  • Power Selection: 30 - 20- 10 - 5 W (100 V)

Cabinet

  • Hardware: Body in self-extinguishing plastic
  • Colour: White / Silver
  • Grille: Steel

Physical Specifications

  • Height: 155 / 6.10 mm/inch
  • Width: 265 / 10.43 mm/inch
  • Depth: 265 / 10.43 mm/inch
  • Net weight: 2.1 / 4.62 kg/lbs

Shipping information

  • Package height: 235 / 9.25 mm/inch
  • Package width: 310 / 12.20 mm/inch
  • Package depth: 310 / 12.20 mm/inch
  • Shipping weight: 3 / 6.61 kg/lbs
The data are not binding; RCF reserves the right to modify the data at any time and without previous notice.
