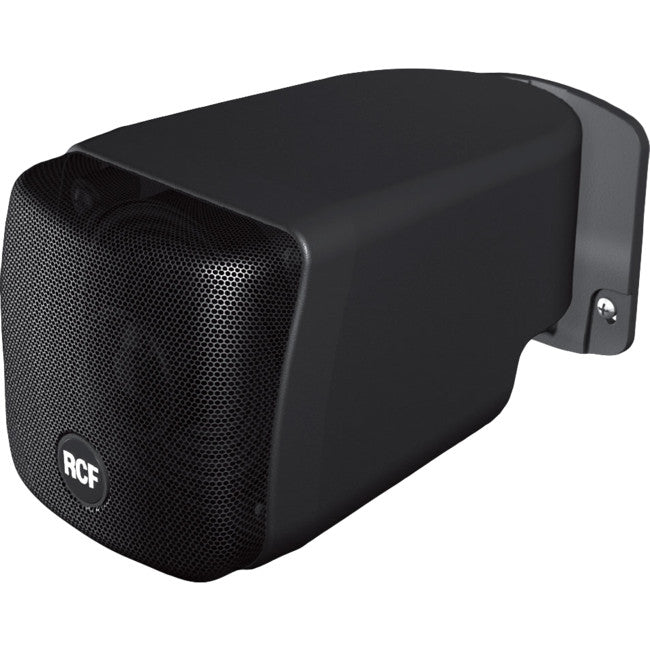

MQ30PB 3" 2 WAY MINI 100V BOX SPEAKER RCF RCF MQ30P

MQ 30P BLACK - 2 WAY MINIATURE SPEAKER

The components are a 3” woofer and a coaxial dome tweeter that ensure a wide angle of coverage.
The speaker faithfully reproduces announcements and provides a good music background where included.
Combined with a subwoofer, the MQ30P allows high quality music distribution with high output levels.
An important feature of the MQ30P is that it provides consistent reproduction of all the frequencies involved in voice transmission and therefore, alone or in combination with a subwoofer, makes it possible to attain a high level of vocal intelligibility.
The MQ30P has been designed to adhere closely to the wall or ceiling and thus it has a limited protrusion.
The built-in hinged support makes the speaker easy to install and orient in any direction.
Like the other Monitor Q products, MQ30P installation is simple and flexible.
First, the support is mounted on the wall and the connector is wired; then, when the premises is completely furnished, the installation, orientation, and connection of the mini-speaker are immediate.

Features

  • Orientable mini-speaker fi r high quality reproduction
  • Two way coaxial speaker: LF 3,5" - tweeter 0,75" dome
  • Power/RMS: 24/12 W Bypass
  • Constant voltage: 70,7 - 100 V
  • Impedance: [Bypass] 16 Ω
  • Crossover frequencies: 5400 Hz, 6/6 dB/oct
  • Built-in High-Pass fi lter at 150 Hz for integrationwith a subwoofer
  • Cabinet: Hi-density polystyrene HB grade
  • Connectors: Euroblock, removable for easy installation

Applications

  • • Music applications
  • • Audio visual applications
  • • Restaurants
  • • Places of worship
  • • Recreational facilities
  • • Shopping malls
  • • Pubs

Acoustical Specifications

  • Type of speaker: 2 way coaxial speaker
  • Frequency Response: 150 Hz “‡ 20 kHz
  • Max SPL @ 1m: 102 dB
  • Horizontal coverage angle: 120°
  • Power Handling: 12 W RMS
  • Peak Power Handling: 24 W PEAK
  • System Sensitivity: 88 dB
  • Impedance: 16 Ω
  • Crossover frequencies: 5.4 Hz

Transducers

  • Speaker: 3"
  • Coaxial: 0.75"

Input Section

  • Input connector: 2 euroblock
  • Constant voltage: 100 V, 70 V V
  • Power Selection: 12 - 6 W (100 V)

Cabinet

  • Hardware: Body in self-extinguishing plastic
  • Colour: White / Black
  • Grille: Steel

Physical Specifications

  • Height :104 / 4.09 mm/inch
  • Width: 100 / 3.93 mm/inch
  • Depth: 170 / 6.69 mm/inch
  • Net weight: 1.18 / 2.60 kg/lbs

Shipping information

  • Package height: 165 / 6.49 mm/inch
  • Package width: 145 / 5.7 mm/inch
  • Package depth: 275 / 10.82 mm/inch
  • Shipping weight: 1.53 / 3.37 kg/lbs
