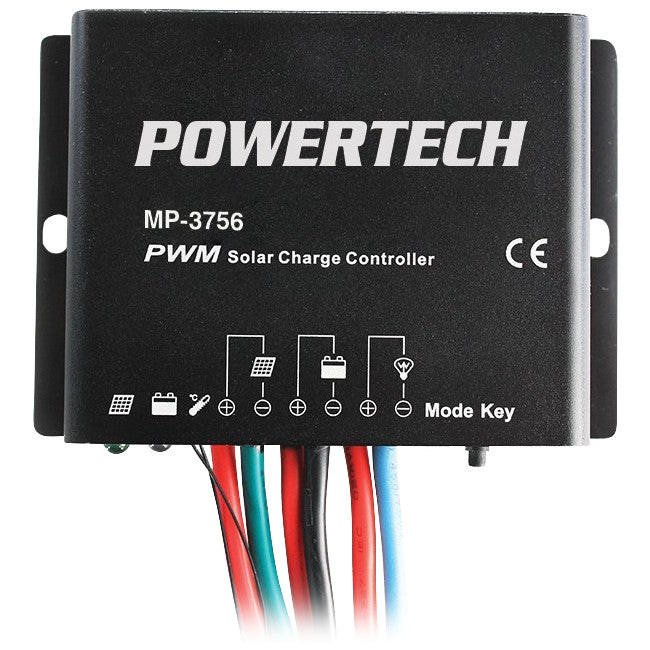

MP3756 12V 24V 10A SOLAR CONTROLLER TIMER POWERTECH MP3756

12/24V 10A PWM Solar Charge Controller with Timer Function IP67

A highly efficient fully automatic 12/24V PWM solar charge controller that adopts the most advanced digital technology which increases battery lifetime and improves solar system performance. With a robust industrial housing and IP67 protection this charge controller is suited to mostapplications especially extreme outdoor environments where corrosion, dust and water ingress are prevalent. Capable of automatically detecting day/night it comes with an inbuilt timer which can be set to operate loads at specific intervals or manually in the night.

Features:

- High efficient PWM charging
- Automatically recognizes day/night
- LED indicators for PV and battery status
- Industrial design, wide application range
- Intelligent timer function with 1 to 13 hours’ option
- IP67 protection
- PV reverse polarity protection
- Battery overcharge, over discharge, reverse polarity and overheating protection
- Load overload and short circuit protection

Specifications:
Voltage: 12/24VDC Automatic
Max. PV Input Voltage: 50V
Current: 10A
Equalize Voltage: 14.8V(12V);29.6V(24V)
Boost Voltage: 14.4V(12V);28.8V(24V)
Float Voltage: 13.7V(12V);27.4V(24V)
Low Voltage Reconnect Voltage: 12.6V(12V);25.2V(24V)
Low Voltage Disconnect Voltage: 11.2V(12V);22.4V(24V)
Self-consumption:
12V: ≤4.58mA
24V: ≤6.01mA
Temperature compensation coefficient:-5mV/°C/2V (25°C)
Working temperature: -35°C - 55°C
IP Rating: IP67
Mounting Dimension: 101mm
Mounting hole size: Φ5
Power cable: PV/BAT/LOAD:4.0mm2
Weight: 410g
Dimensions: 109(W) × 75(H) × 26(D)mm
