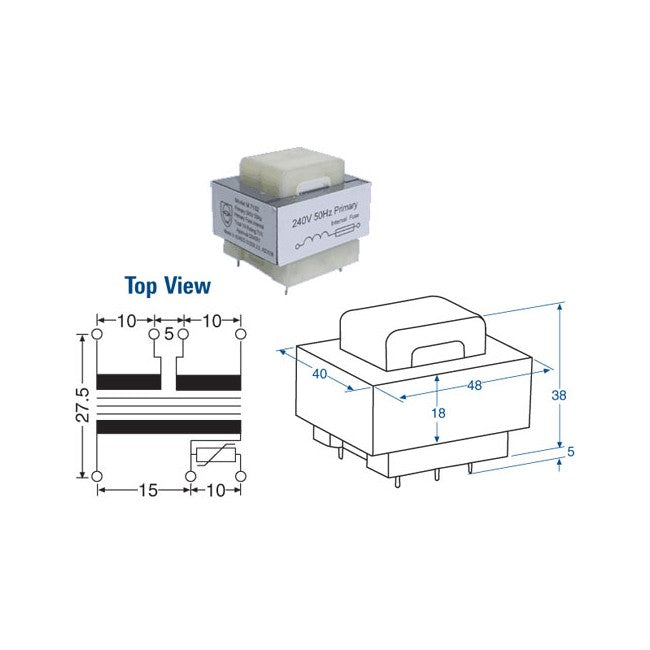

M7118A 9V+ 9V 7VA PCB TRANSFORMER 18V M7118A

M7118A 9V+ 9V 7VA PCB TRANSFORMER 18V M7118A

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

  • Specifications:
  • Sec. V: 9+9
  • Sec. Parallel: 0.77A Sec. Series: 0.388A
  • Primary voltage: 240V AC
  • Total VA rating: 7VA
  • Insulation: Class B (130°C)
  • Magnetising current: <30mA
  • Temperature rise: <65°C
  • Recommended AC Fuse: 100mA
  • Regulation: ˜11%
  • Weight: ˜265g
  • PCB hole size: 1mm
  • Thermal Fuse: Internal 115°C
  • AS/NZS 61558.2.6 approval: Q04081
  • Note: Must be used with a standard 100mA external AC fuse.
