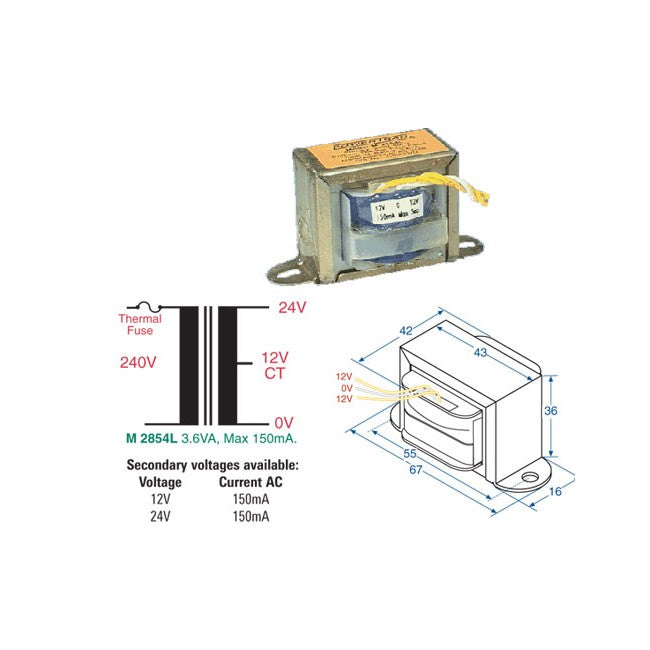

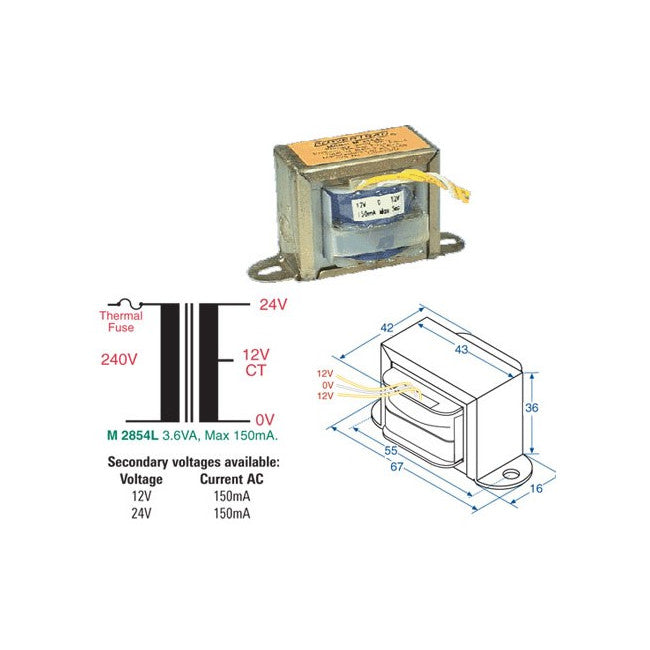

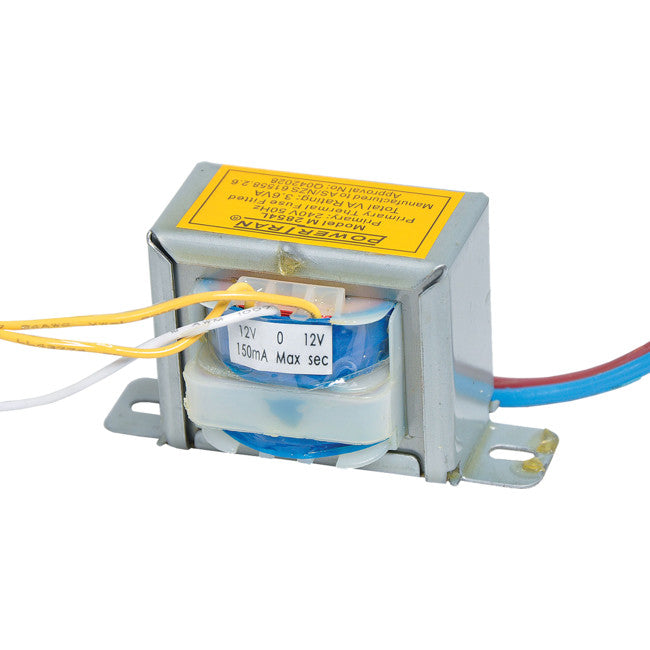

M2854L 24V 150MA MAINS TRANSFORMER 3.6VA CT - CENTRE TAPPED M2854L

  • Specifications
  •  Primary voltage: 240V AC
  • Total VA rating: 3.6VA
  • Insulation: Class E (120°C)
  • Magnetising current: <40mA
  • Temperature rise: <65°C
  • Regulation: ˜12%
  • AC fuse: Not required (fitted internally)
  • Weight: ˜235g
  • Primary connection: 200mm fly leads
  • Secondary connection: 200mm fly leads
  • AS/NZS 61558.2.6 approval: Q042028
  • AS3108 approval: CS/813/Q
  • Secondary Voltages Available: Voltage : 12V, 24 / Current : 150mA
  • Primary and secondary fitted with 200mm fly leads.
