M2852L 12.6V 300MA MAINS TRANSFORMER 3.78VA CT - CENTRE TAPPED M2852L

M2852L 12.6V 300MA MAINS TRANSFORMER 3.78VA CT - CENTRE TAPPED M2852L

$12.95

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

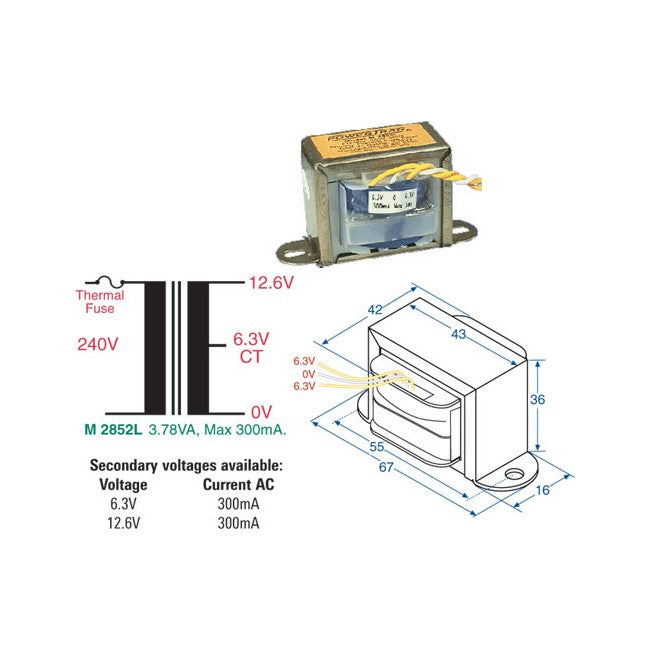

Specifications

Primary voltage: 240V AC Total VA rating: 3.78VA
Insulation: Class E (120°C)
Magnetising current: <40mA
Temperature rise: <65°C
Regulation: ˜12%
AC fuse: Not required (fitted internally)
Dimensions: A-42, B-65, C-71, D-44
Mounting holes: 3 x 6 mm
Weight: ˜235g
Primary connection: 200mm fly leads
Secondary connection: 200mm fly leads
AS/NZS 61558.2.6 approval: Q042028
AS3108 approval: CS/813/Q
Secondary Voltages Available: Voltage : 6.3V, 12.6V / Current : 300mA
Primary and secondary fitted with 200mm fly leads.
