This product is discontinued.

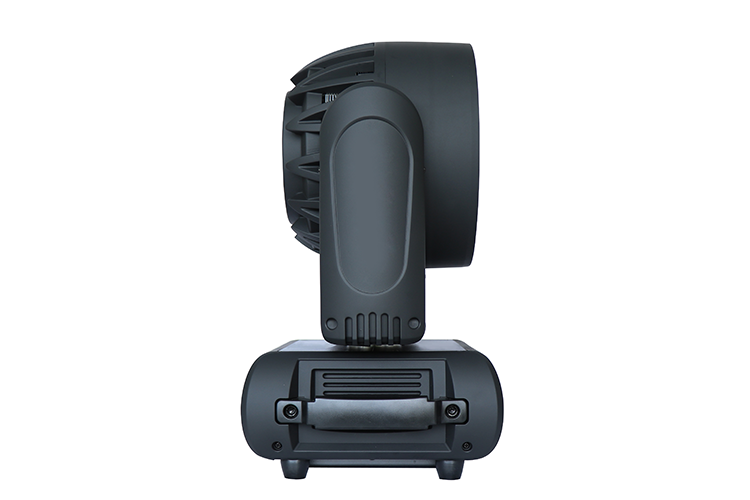

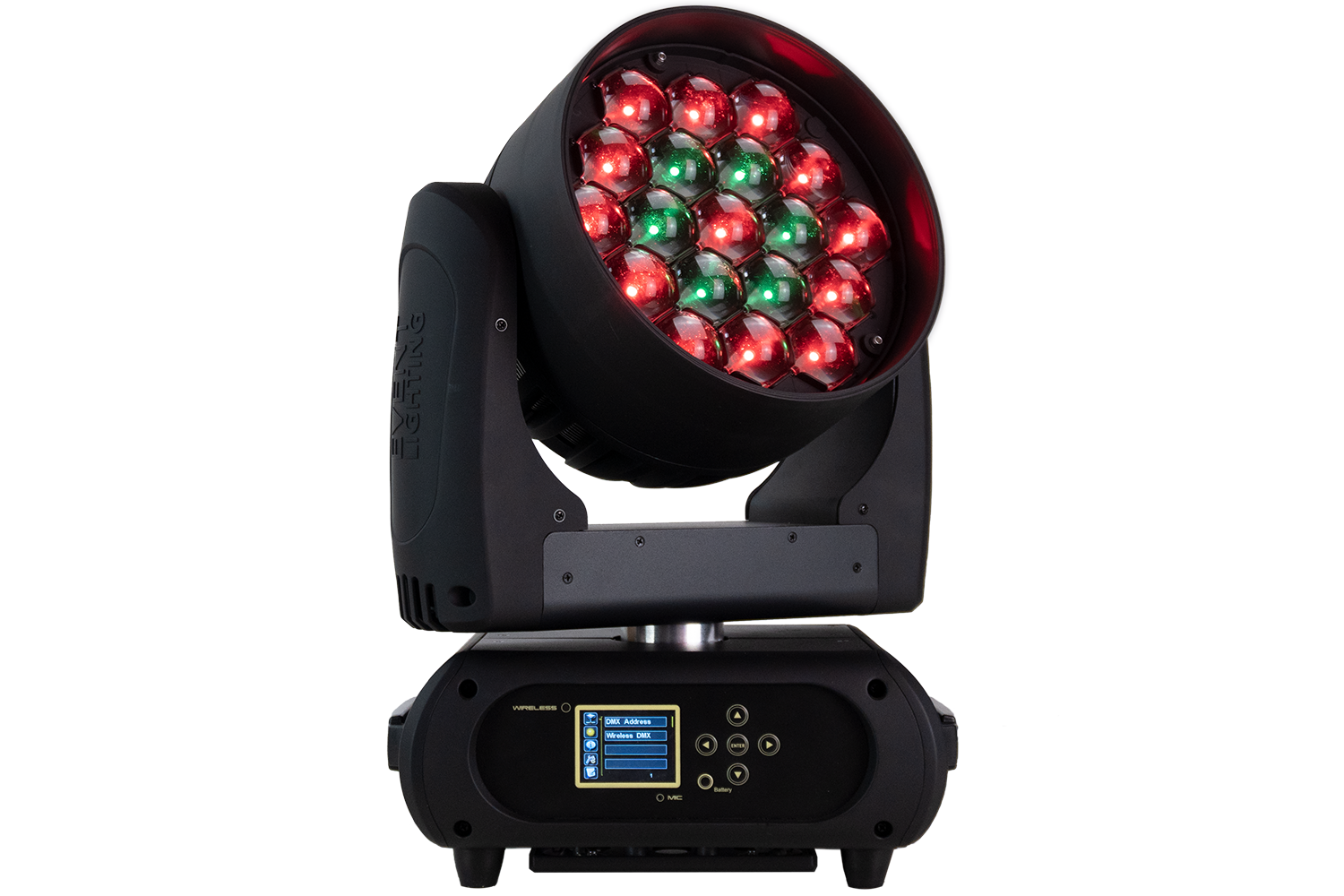

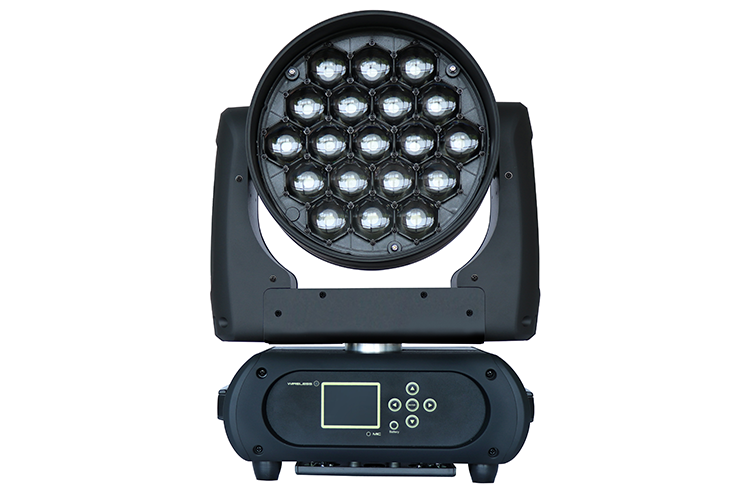

The M19W20 Moving Head Zoom Wash features 19x 20 W Osram® 6-in-1 RGBALC (RGB+Amber+Lime+Cyan) LEDs with ring control, 6-36° Zoom, 16-bit pan, tilt and dimming control and optional wireless DMX.
Photometrics
- Light Source: 19x 20 W Osram® 6-in-1 RGBALC (RGB+Amber+Lime+Cyan) LEDs.
- Beam Angle: 6°~36°.

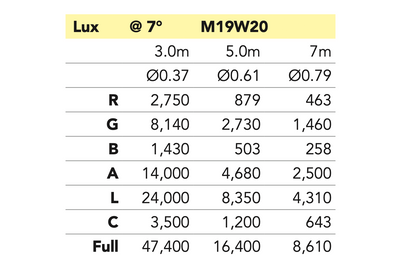

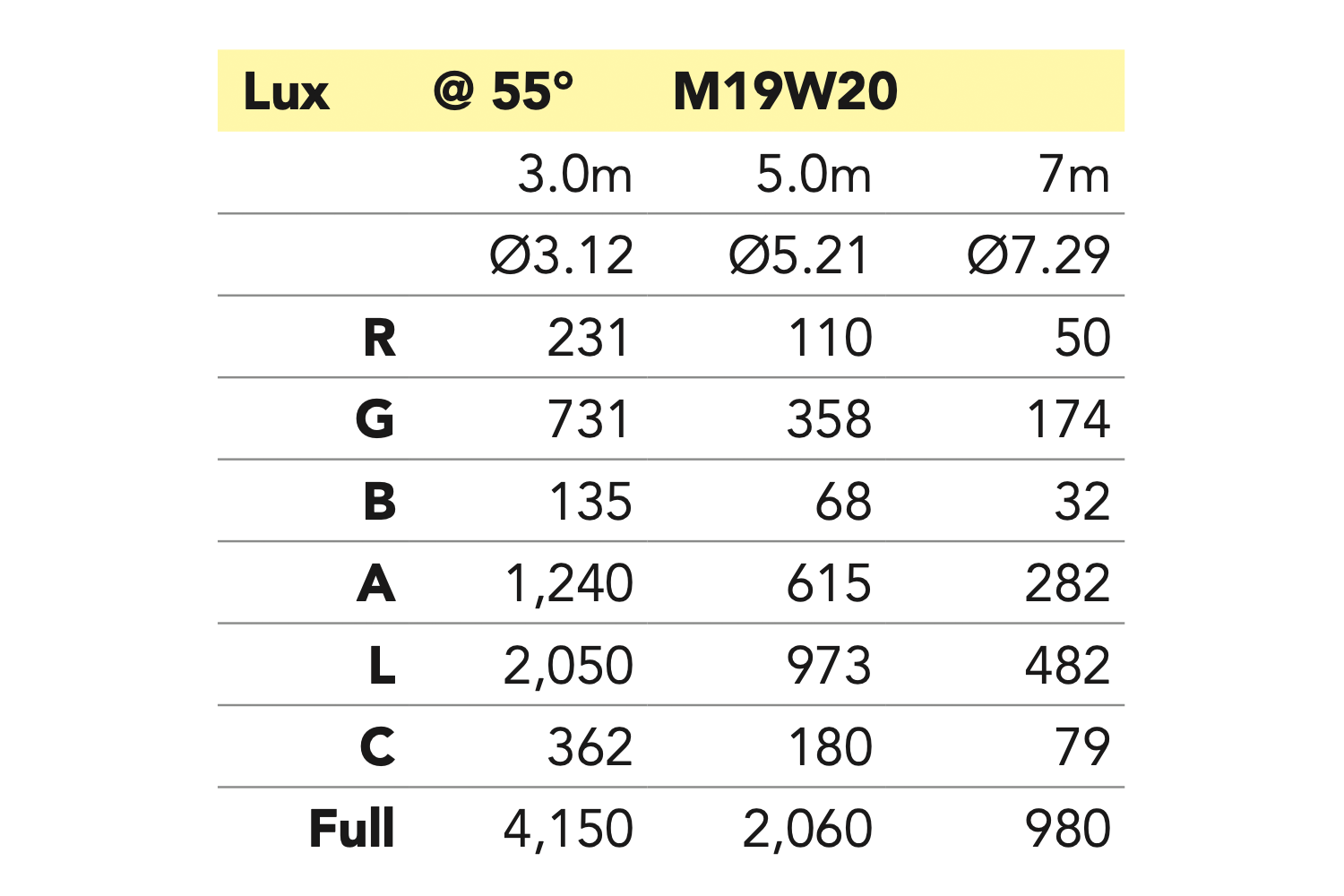

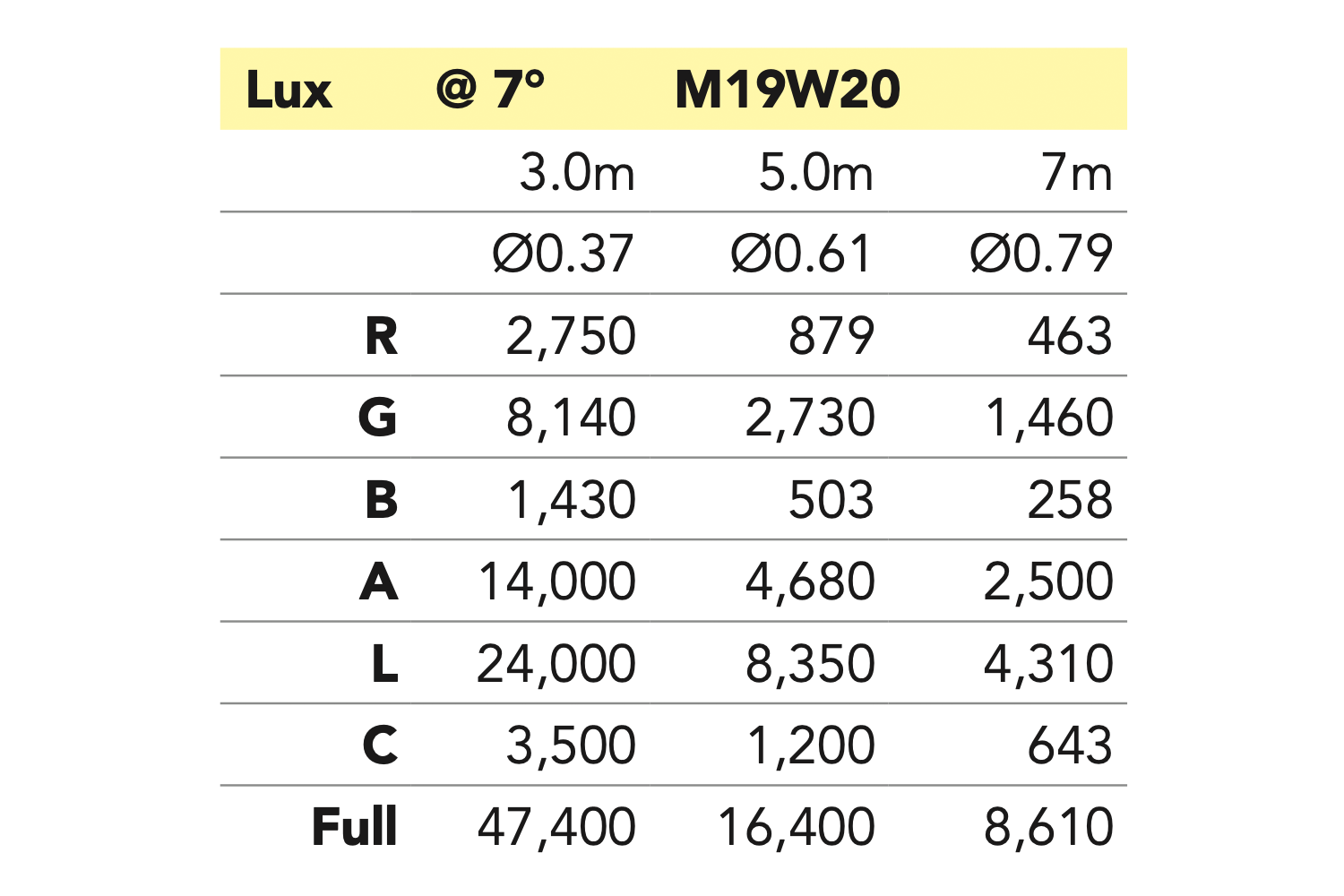

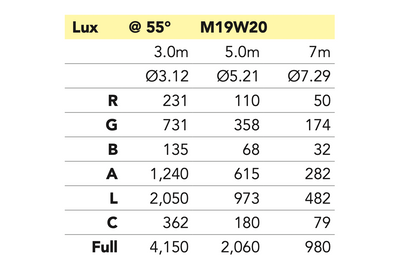

- Output: 4,600 lumen, 33,260 lux @ 3 m @ 6°
- LED Lifespan: 60,000 hours.
Effects
- Dimming: 0-100%, 16-bit.
- Strobe: 1-20 Hz.
- Nice mapping effect with dimming and colour fading at the same time
Movement
- 16-bit auto-reposition
- Pan: 630° (2.2 s), 540° (2 s)
- Tilt: 265° (0.85 s)
Power
- Input Voltage: 100~240 V AC, 50/60 Hz, 390 W
- Connection: Neutrik® powerCON in/out
- Fuse: T5A, 250V.
Control
- Control Protocol: DMX512, RDM (W-DMX™ *optional)
- DMX Channels: 16 / 19 / 20 / 33.

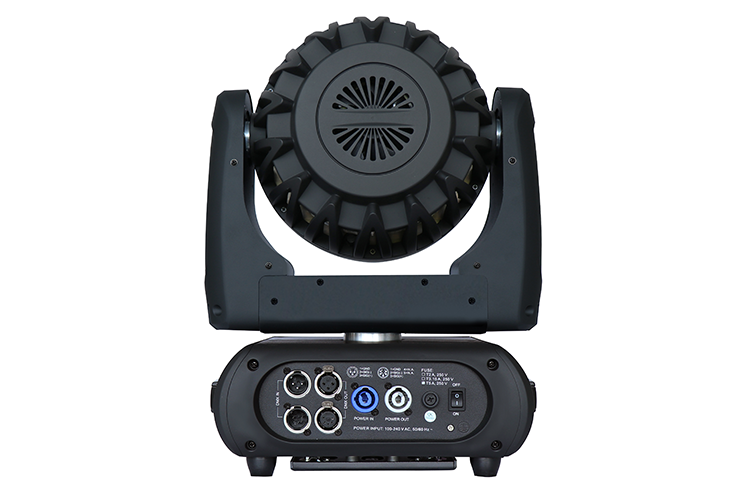

- Control Interface: 3-pin XLR in/out, 5-pin XLR in/out.
- Display: 2.4″ colour LCD control panel with battery power
Housing
- Materials: Die Cast Aluminium, matte black finish
- Cooling: Multi-sensor thermostat-controlled variable speed fan
- IP Rating: IP20
- Net Weight: 12 kg
- Rigging: 2x omega brackets with 1/4 turn quick locks
Accessories
Optional: Road case - MCAS
