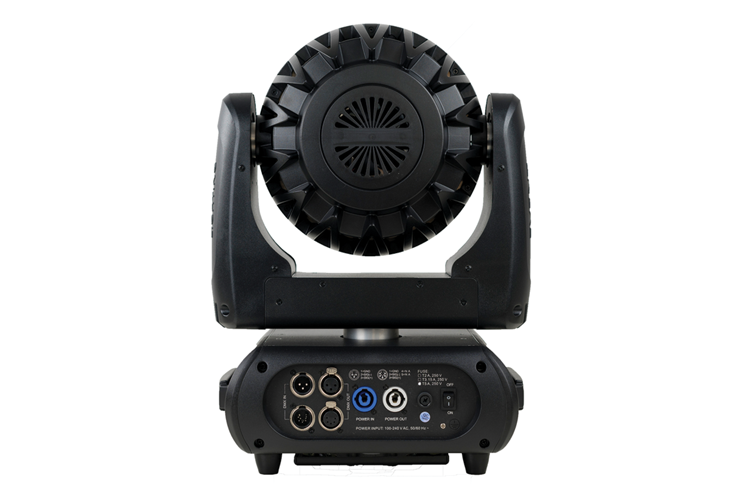

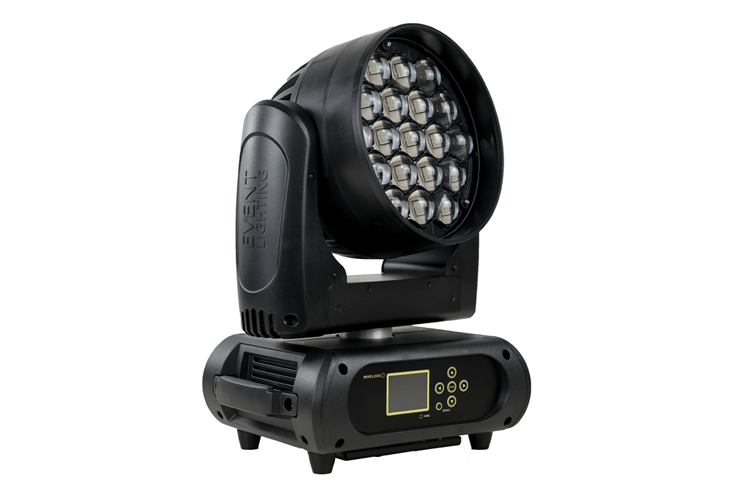

M19W15RGBW - 19x 15W RGBW LED Pixel Control Wash Zoom Head

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

This product is discontinued.

Power

• Input Voltage: 100~240V AC, 50/60 Hz


• Power Consumption: 316W


• Connection: Neutrik® PowerCON – In / Out

Photometric

• Light Source: 19 pcs Osram® 15W RGBW LED


• Beam Angle: 6 - 60°

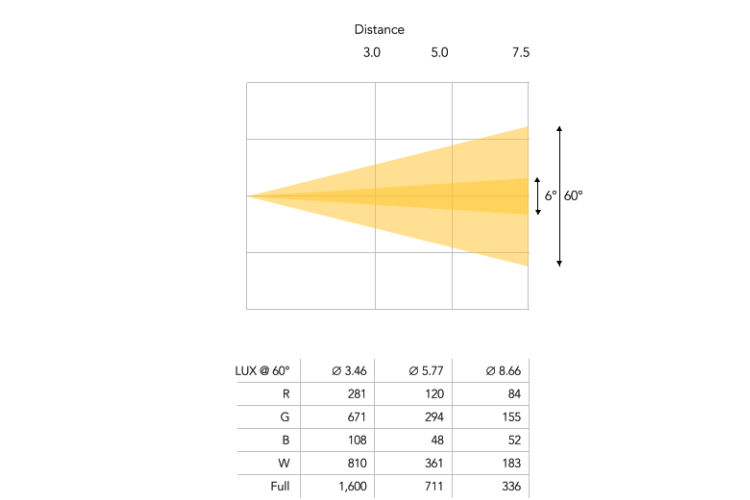

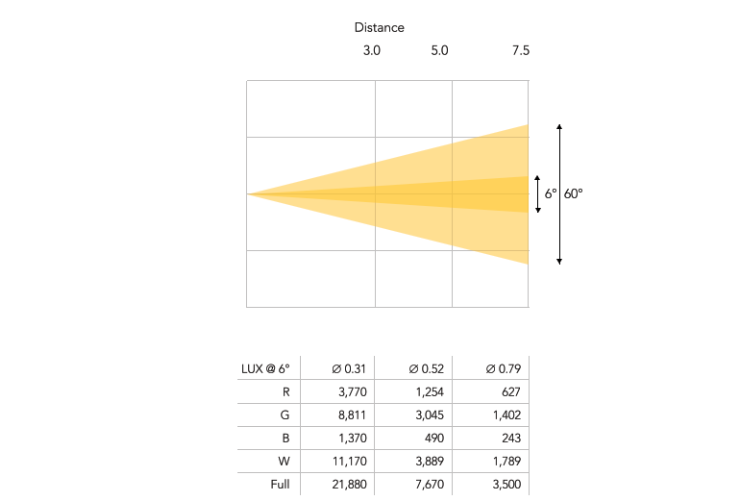

• Output: 8,000 lumen, 21,880 lux RGBW full on @3M at 6°, 1,600 lux RGBW full on @3M at 60°


• PWM: 1200Hz


• LED Lifespan: 60,000 hours

Effects

• Dimming: 0 ~ 100%


• Pixel Control: Yes


• Strobe: 0.5 ~26 Hz


• Zoom: Electronic Linear 6 - 60°

Movement 8 / 16 bit Auto Reposition

• Pan: 630°( 2.2 sec) or 540°( 2.0 sec)


• Tilt: 265° (0.85 sec)

Control

• Operational Modes: DMX, Auto Program, Sound Active, Master / Slave


• RDM: Yes


• Protocol: DMX512 (W-DMX™ Optional)


• DMX Channels: 19 / 98 / 18 /20


• Interface: 3-pin XLR & 5-pin XLR


• Display: 2.4″ Colour LCD control panel with back-up power.


• Software Upgrade via DMX: Yes

Housing

• Materials: ABS & Steel


• Finishing: Matte black


• Cooling: Multi Sensor Thermostat Controlled Variable Speed Fan


• IP rating: IP20


• Net Weight: 12 kg


• Rigging: 2pcs Omega Brackets with 1/4-turn Quick Locks

MISC

• Road case: MCASE2LS

Product Specification Sheet Download

User Manual Download

Spare Parts
