LT3166 SLIM INDOOR/OUTDOOR ANTENNA UHF VHF AMPLIFIED DIGITECH LT3166

LT3166 SLIM INDOOR/OUTDOOR ANTENNA UHF VHF AMPLIFIED DIGITECH LT3166

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

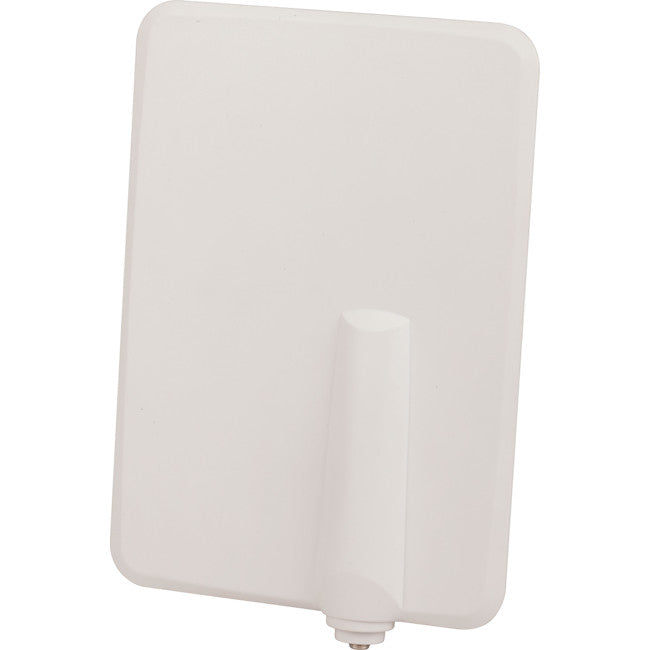

Slimline Indoor/Outdoor UHF/VHF Antenna

This slim indoor/outdoor antenna is very easy to install and is supplied with mounting hardware for wall, mast or rail mount. An in-built amplifier with 4G/LTE filter provides optimal UHF and VHF signal reception for DVB-T, DVB-T2 and DAB radio. The antenna is weatherproof IPX4 and can be mounted horizontally or vertically for best positioning. Reception distance of up to 25km from the TV tower when mounted indoor and up 50km away when mounted outdoor.

Features:

. In-Built Amplifier
. 4G/LTE Filter
. Weatherproof
. Horizontal & Vertical Orientation
. Mast, Rail & Wall Mountable
. Up to 25km Indoor Range (up to 50km Outdoor)

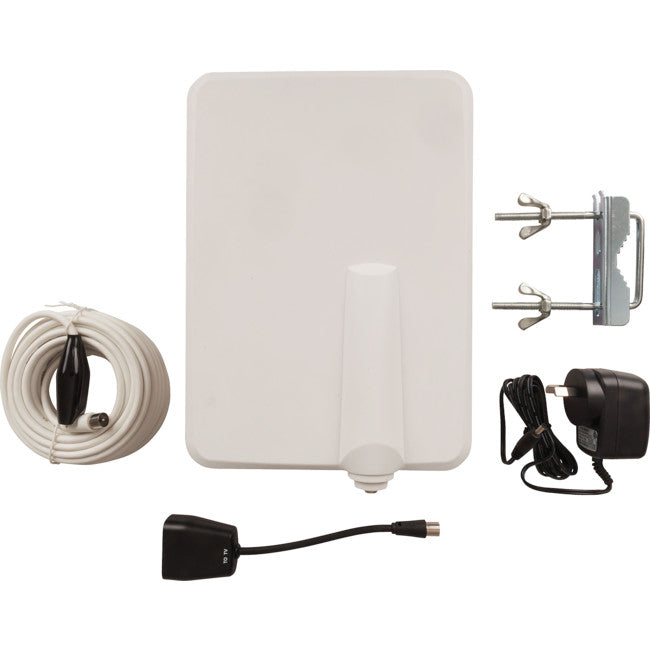

Included:
1 x Indoor /Outdoor UHF/VHF Antenna
1 x 4m F to F Antenna Cable
1 x 4m F to PAL Antenna Cable

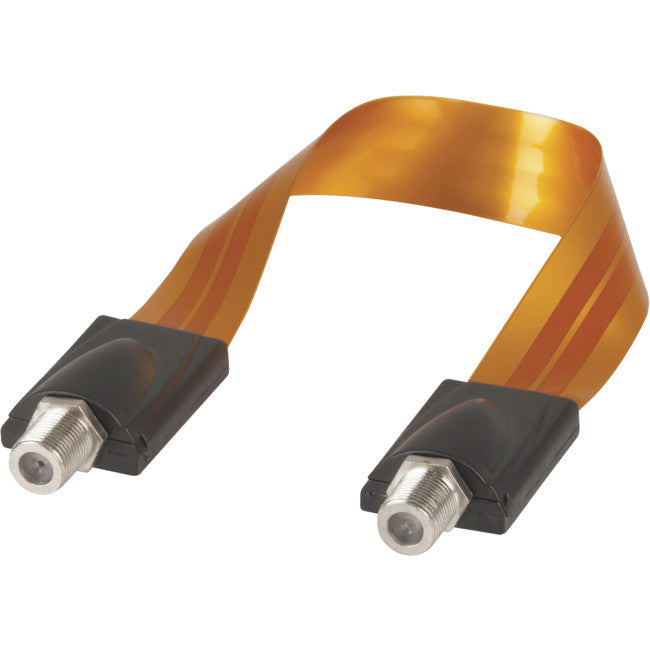

1 x Flat Window Antenna Cable
1 x Power Injector
1 x Mains Power Adaptor
1 x Mast/Rail Clamp
1 x Mast/Rail & Wall Mounting Hardware

Note: Reception distance from the TV tower varies upon your exact location and obstacles in-between the tower and receiver such as buildings or walls. To check the coverage of your area, clickhere.

Specifications

DC current rating : 50.0mA
DC Voltage : 6.0V
IP Rating : IPX4
Dust/Particle Ingress Protection : IPX - Not rated
Liquid/Moisture Ingress Protection : 4 - Splashingwater
Width : 165.0mm
Height : 230.0mm
Depth : 5.0mm
DC Current Draw : 50.0mA
RF type : PAL/Belling-Lee
RF impedance : 75.0?
Antenna Type : Flat Panel
Usage Location : Indoor, Outdoor
Reception Bands : TV Band 3: 174-230MHz, TV Band 4: 526-582MHz, TV Band 5: 582-694MHz
UHF Frequency Range : 470.0MHz, 694.0MHz
UHF Channel Range : 25.0ch to 69.0ch
UHF Gain : 19.0dB
VHF Frequency Range : 170.0MHz, 230.0MHz
VHF Channels Covered : 6.0ch to 12.0ch
VHF Gain : 11.0dB
