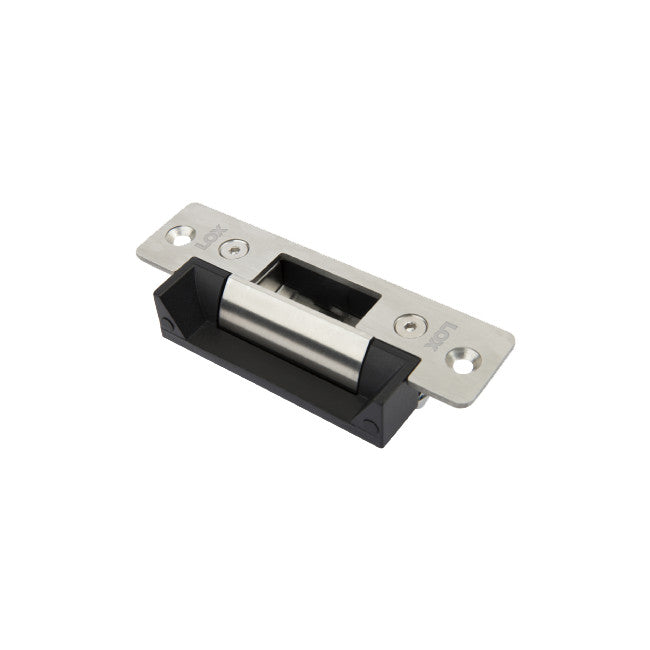

The LOX ES10 Series ANSI Electric Door Strikes isone of the most successful residential & light commercial Electric Strike products in Australia. It is a dual voltage product accepting voltages of either 12 or 24VDC. The LOX ES10 Series Electric Strikes are site interchangeable from Fail-Secure to Fail Safe (Power to Release to Power to Lock) by only using a small screw-driver.
The ES10 Series Strikes are designed to be morticed into a door frame on a single swing door equipped with either a mortice lock or a cylindrical tongue lock. theLOX ES10 Series Strikes are pre-drilled to accommodate for extension lips, come with a 5-year warranty and have a holding strength of up to 1200kg.
The non-monitored ES10 version is weather resistant IP56 rated.
Features:
{tab Specs}
| ES10 | ANSI Profile Non Monitored Door Strike. Mortice Mount, Power to Lock/Power to Open Field Selectable & IP Rated |
| HOLDING STRENGTH | Up to 1200kg Tested 1 million Cycles |
| VOLTAGE/CURRENT | Dual volta ge 12/24VDC 12VDC = 200mA 24VDC = 100mA |
| APPROVALS | Up to 4-hour fire rated to A.S Standard, CE & C-TICK |
| DSS MONITORING | Door Latch Sensor, Door Latch Engaged Within Strike Keeper ES10M Version |
| IP RATING | ES10 Version IP56 ES10M Version Not Weather Resistant |
| ENVIRONMENTAL | Operational Temperature Range ? 20 deg . C to60 deg . C. |
