$699.00

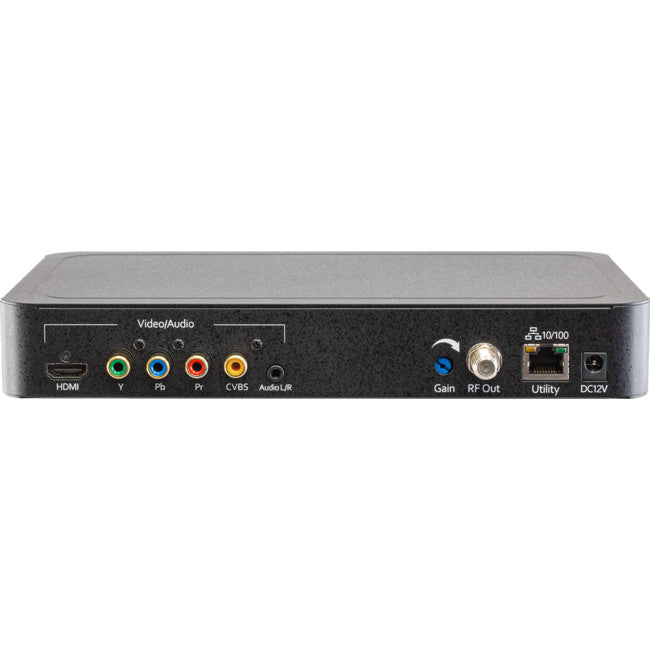

The LCT-1631A is a cost-effective, single input MPEG-2 HD Encoder/Modulator that converts Digital Video Broadcasting (DVB) high definition video and audio signals to COFDM. The unit's front-mounted LCD allows for easy configuration and adjustments.
This compact and economical modulator is perfect for multi-video distribution solutions in the commercial and institutional market (hotels, motels, sports bars, restaurants, hospitals, casinos, business and university campuses, digital signage, etc.) as well as home entertainment systems.
Video / Audio Input | |
HDMI 1.4 | |
Connector | Single |
Audio | Embedded PCM |
HDCP Compliance (Test Mode) | 1.4 |
Component / Composite | |
Connector | RCA x1 Set for Each |
Audio | Analog 3.5mm (Phone Jack) |
Video/ Audio Encoding Profile | |
Video | |
Video Codecs | MPEG-2 VBR |
|
Bitrate (Adjustable) |
DVB-T: HD: 12.0 to 24.0Mbps (Suggested Max. Bitrate 17Mbps for 16-QAM) SD: 4.0 to 9.0Mbps |
|
Resolution Output |
Same as Input, Accepting Resolution as Follows: 1080p30 / 1080p25 1080i60 / 1080i50 720p60 / 720p50 576p / 480p 576i / 480i |
Audio | |
Audio Codecs | MPEG1 Layer II / MPEG4 AAC /AC-3 Encode |
Output | |
Standard | DVB-T |
Connector | 1x “F” Female |
Output Level |
95 dBµV Typical (With 20dB Range Manually Adjustable) |
Flatness Across Full Band | ± 2 dB Typical |
MER | 38 dB Typical @ 480.5 MHz under DVB-T Mode |
Output Impedance | 75 ohm |
RF Output Return Loss | 10 dB Typical |
Modulator STD | DVB-T (COFDM) |
RF Mode | Normal / Inverted |
|
Frequency Range (AU / NZ) |
AU: 104.5 MHz to 816.5 MHz (Channel 5 to Channel 69) NZ : 107.5 MHz to 858.0 MHz (Channel S1 to Channel 69) |
Constellation (Output Bitrate, Max.) |
AU : 64-QAM (27.70Mbps) NZ : 64-QAM (31.66 Mbps) |
FEC | 7/8 |
LCN Mode | AU / NZ |
OFDM Mode | 2k, 8k |
Guard Interval | 1/32 |
General | |
Local Monitoring | LCD |
Web GUI Supported | Firefox, Chrome |
Password Protected | GUI: User Settable |
Power Supply | 12VDC 1.5A |
Consumption | 5W |
Operation Temperature | 0°C to +55°C |
Storage Temperature | -20°C to +70°C |
Dimension | Housing: 236(L) x 145(W) x 34(H) mm |
Weight | TBD |
Language | English |
Q: What is the default password for the front panel control?
A: The default password is 0000.
Q: How to change the video input?
A: LCT1631 defaults to HDMI video input, can change it to component or composite video from the front panel menu under Encoder Setup/Video input.
