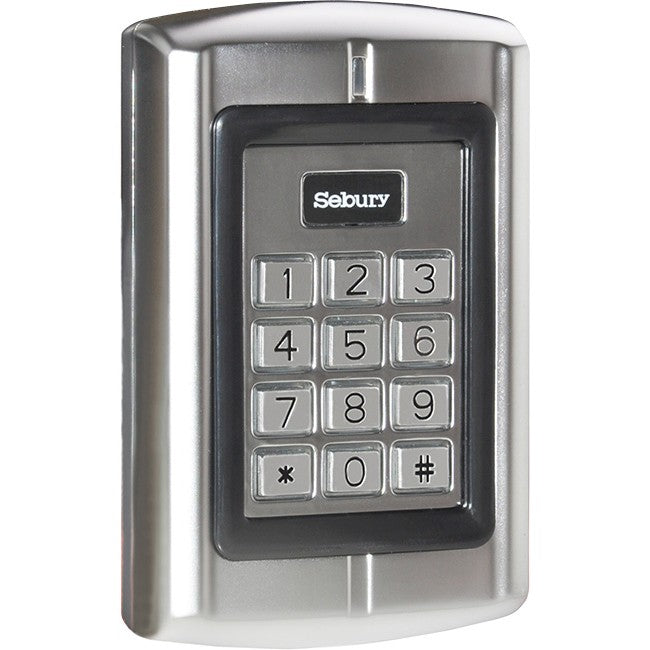

LA5353 DIGITAL KEYPAD WITH RFID ACCESS CONTROL LA5353

$181.25

Features

Digital Keypad with RFID Access Control

A single door multifunction standalone access controller or a Wiegand output keypad/card reader suitable for an area requiring stricter access control such as a laboratory, warehouse, bank, or prison. The unit is suitable for mounting indoor or outdoor in harsh environments. It's housed in a sturdy IP65 vandal proof zinc alloy electroplated case that can mounted to a wall with minimal drilling. Up to 2,000 users are supported in either a card, a 4-8 digit PIN, or a card + PIN option and the inbuilt cardreader supports EM, 125KHz frequency cards. Red/Yellow/GreenLEDs will indicate working status of the device.

Full installation instructions and wiring diagrams featured in manual.

Features:

Waterproof
2000 users
Backlit keypad
LED indicator (Green/Yellow/Red)
Wiegand 26 input for the connection of an external reader
Adjustable door output time, alarm time and door open time
Built in light dependent resistor for anti-tampering
Built in buzzer

Specifications

Voltage: 9-18VAC / 12-24VDC
Keypad: 12 keys, 3 x 4 digits
Card Type: EM 125KHz
Card Reading Distance: 3-6cm
Active current: Operating Temperature: -20-60 degrees celcius
Adjustable Door Relay time: 99 seconds
Adjustable Alarm Time: 0-3 minutes
Weigand Interface: Wiegand 26 bit
Wiring Connection: Electric Lock, Exit Button, DORL, External Alarm
Dimensions: 128(H) x 82(W) x 28(D)mm
