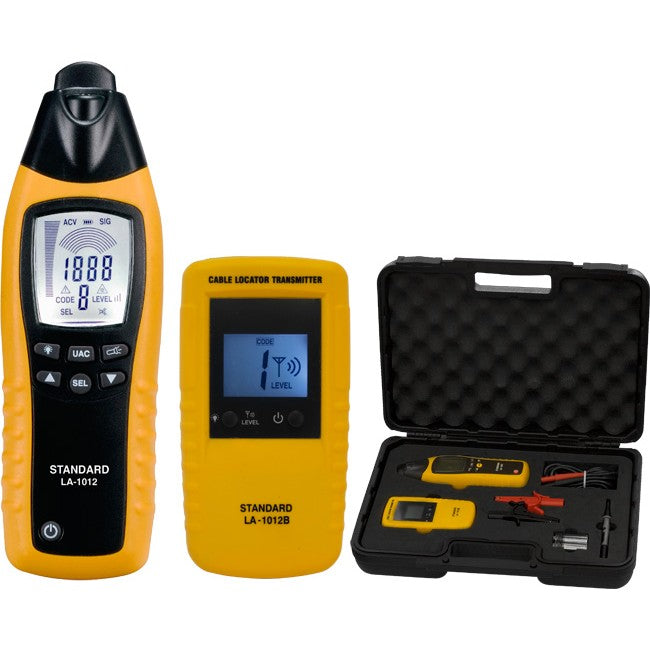

This professional general purpose cable locator is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose made carry case. The receiver also incorporates a torch function for working in dim light location.
Note:
Theprobe supplied in the box is not suitable for Australian power sockets
Features:
- For all applications ( live or dead cable ) without additional instruments
- Set includes a transmitter and a receiver
- Proven digitally coded sender signal guarantees clear signal identification
- Transmitter with LCD-display for transmitting level, transmitting code and external voltage
- Receiver with back light LCD display for level of receiving signal, code of receiving signal and live voltage indication
- Automatic or manual adjustment of receiving signal sensitivity
- Acoustical receiving signal switchable
- Auto power off
- Additional torch lamp function for working in dark environment
Specifications:
- Voltage measurement range: Transmitter: 12V, 50V, 120V, 230V, 400V
- Frequency range: Transmitter: 0~60Hz
- Output signal: Transmitter: 125kHz
- Voltage: Transmitter: up to 400V AC/DC
- Tracing depth cable location: Receiver: 0~2.5m wall/underground cables
- Main voltage detection: Receiver: 0~0.4m
- Size (H x W x D): 190mm x 60mm x 37mm
- Weight: 229g
Environment Specifications:
- Operating temperature: Transmitter: 0 to 40 °C,Receiver: 0 to 40 °C
- Storage temperature: Transmitter: -20 °C to 60 °C, Receiver: -20 °C to 60 °C
- Humidity (without condensation: Transmitter: Max. 80% relative, Receiver: Max. 80% relative
- Operating Altitude: Transmitter up to 2000m, receiver up to 2000m
Safety Specifications:
- Electrical safety: EN61010-1
- Overvoltage category: CAT III 300V
