$1,499.00

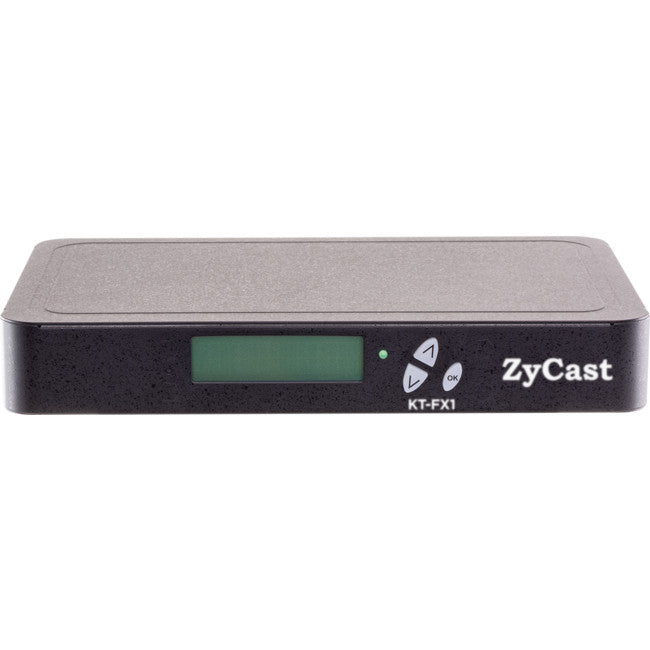

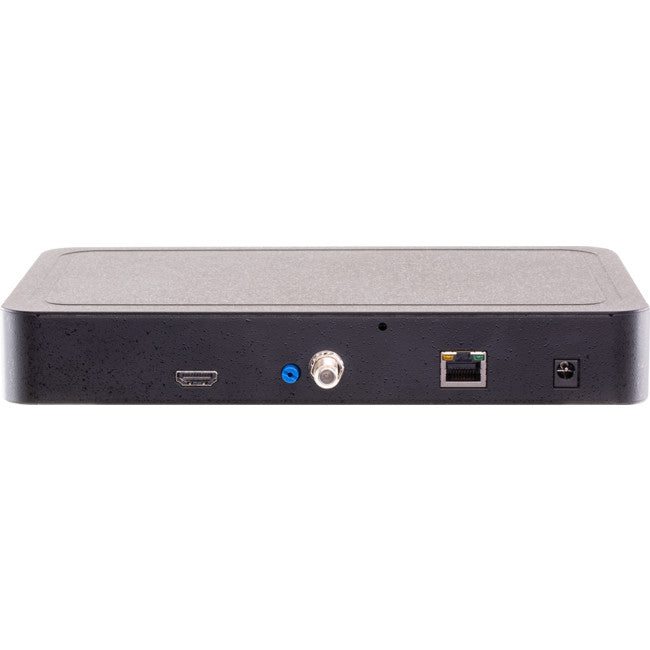

The KT-FX1 is a Foxtel-approved single input (HDMI) HD digital modulator that encodes HDMI signal to any DTV channel.
Pre-programmed with a Foxtel-approved channel listing andwith an output level of 90dB and MER of >38dB, the KT-FX1 makes use of video compression via H.264 AVC (MPEG-4) and audio compression via MPEG Layer II/AAC to distribute a crystal-clear HD picture over new or existing coaxial cable.
Programming of the KT-FX1 is done via a web GUI and front LCD panel. It uses a frequency range of 177.5MHz to 816.5MHz (6 to 69).
| Foxtel Approved Number | F31059 | |
| Input | Number of Inputs | 1 |
|---|---|---|
| Video Input | HDMI | |
| Video Input Level | 0.7 - 1.4V (Peak to Peak) | |
| Video Mode | PAL | |
| Audio Input | Stereo | |
| Audio Input Level | 0.4 to 4.8V (Peak to Peak) | |
| Output | Frequency Range | 177.5 MHz to 816.5 MHz (6 to 69) |
| HDMI Loop Through | No | |
| Output Level | 85dB | |
| MER | >38dB | |
| Delayed Audio | Delayed Audio Output | No |
| Modulation | Video Resolution | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compression | H.264 AVC (MPEG-4) | |
| Audio Compression | MPEG Layer II / AAC | |
| Video Bitrate SD | 1Mbps to 9Mbps (Default 5Mbps) | |
| Video Bitrate HD | 12Mbps to 24Mbps (Default 24Mbps) | |
| LCN | AU (APN) | |
| Carrier | 2K / 8K | |
| GI | 1/32 | |
| FEC | 7/8 | |
| Constellations | 16 QAM / 64 QAM | |
| Management / Programming | Front LCD | Yes |
| Web GUI | Yes | |
| Power Supply Type | External | |
| Power Supply | 12V DC 1.5AMP | |
| Redundant PSU | No | |
| Operating Temperature | 0°C to +45°C | |
| Storage Temperature | −0°C to +60°C | |
| Packaging | Dimensions | 236mm × 145mm × 34mm |
| Weight | 0.88kg | |
| Warranty | 3 years | |
Please Note: Online stock only for this item. Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or to a specific distance from supply location. Local pickup may be available on some items by prior arrangement. Shipping charges may still apply for this item for Click and collect in store orders as this item may still need to be shipped to us for collection from the local pickup location.
Please use the contact us form to get an accurate shipping quote based on your order quantity and location to avoid order cancellation charges.
